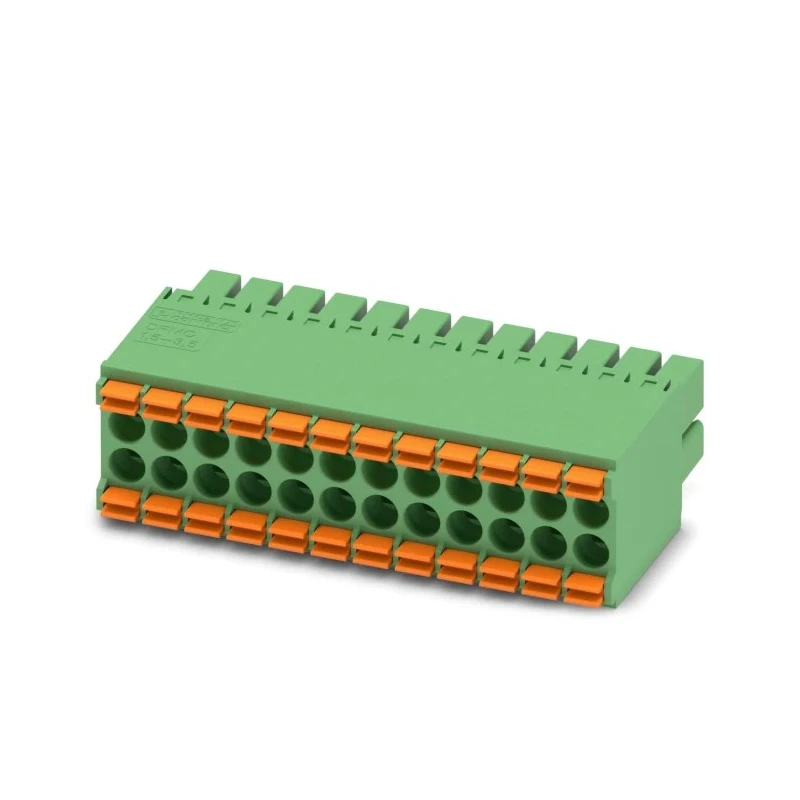

Phoenix Contact DFMC 1.5/12-ST-3.5 Series Pluggable Terminal Block, 24-Contact, 3.5 mm Pitch, 2 Row, 250V, 8A 1790205
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 8A |
| Length | 22.65mm |
| Model | 1790205 |
| Depth | 13.25mm |
| Width | 42.8mm |
| Housing Material | Polyamide |
| Series | DFMC 1.5/12-ST-3.5 |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Number of Contacts | 24 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring Cage |
| Plug, nominal current | 8 A, rated voltage (III/2): 160 V, number of positions: 12 with 24 contacts, pitch: 3.5 mm, connection method: spring-cage connection, color: green, contact surface: tin |
Key Features
- Nominal current rating of 8 A ensures safe conduction of electrical signals.
- Operates at a voltage of 250 V suitable for a wide range of applications.
- Constructed with polyamide housing for high durability and electrical insulation.
- Features spring-cage connection for secure and easy wiring.
- Supports wire sizes from 0.2 mm² to 1.5 mm² and AWG 24 to AWG 16.
- Designed in a horizontal orientation with a compact form factor.
- Contact surface is tin-plated for corrosion resistance.
- Ideal for industrial, automation, and electronic component assemblies.
Product Description
The Phoenix Contact 1790205 DFMC 1.5/12-ST-3.5 series pluggable terminal block is engineered for robust and versatile electrical connections. With 24 contacts arranged in 2 rows and a 3.5 mm pitch, this product supports reliable signal and power transmission for industrial and electronic component systems.
Rated for a nominal current of 8 A and voltage of 250 V, it is suited to a range of electrical applications demanding consistent performance. The terminal block house is crafted from polyamide, providing excellent mechanical strength and electrical insulation. Its green color coding aids in easy identification during installation.
The connection method employs a spring-cage system, guaranteeing firm wire retention, vibration resistance, and simplified wiring procedures. It accepts wire sizes from 0.2 mm² up to 1.5 mm² (24 to 16 AWG), supporting diverse wiring configurations. Horizontal orientation optimizes layout in control panels and assemblies.
Compact dimensions, including a length of 22.65 mm, width of 42.8 mm, and depth of 13.25 mm, make this terminal block suitable for dense configurations without sacrificing accessibility.
Though lacking formal approvals, this terminal block maintains high-quality standards typical of Phoenix Contact components. Its tin-plated contact surfaces resist corrosion, extending service life even in demanding environments.
Nominal current rating of 8 A ensures safe conduction of electrical signals. Operates at a voltage of 250 V suitable for a wide range of applications. Constructed with polyamide housing for high durability and electrical insulation.
Features spring-cage connection for secure and easy wiring. Supports wire sizes from 0.2 mm² to 1.5 mm² and AWG 24 to AWG 16. Designed in a horizontal orientation with a compact form factor. Contact surface is tin-plated for corrosion resistance.
Ideal for industrial, automation, and electronic component assemblies.
This Pluggable Terminal Block is widely used in electrical equipment manufacturing, control panels, automation systems, electronics applications, and industrial machine wiring setups. Its design facilitates easy maintenance and wiring flexibility.
Discover more in our Electronics & Electricals catalog for professional connectivity solutions with Phoenix Contact products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating is 8 A, ensuring safe conduction of electrical signals.
It operates at a voltage of 250 V, making it suitable for a wide range of applications.
This unit supports wire sizes from 0.2 mm² to 1.5 mm² and from AWG 24 to AWG 16.
It employs a spring-cage connection method for secure and easy wiring.
The dimensions are 22.65 mm in length, 42.8 mm in width, and 13.25 mm in depth.
This terminal block features 24 contacts arranged in 2 rows.
The housing is constructed from polyamide, providing high durability and electrical insulation.
The pitch of the contacts is 3.5 mm.
It is designed in a horizontal orientation, optimizing layout in control panels and assemblies.
The contact surfaces are tin-plated to resist corrosion, extending service life.
The country of origin is Germany.
It is ideal for use in industrial, automation, and electronic component assemblies.
