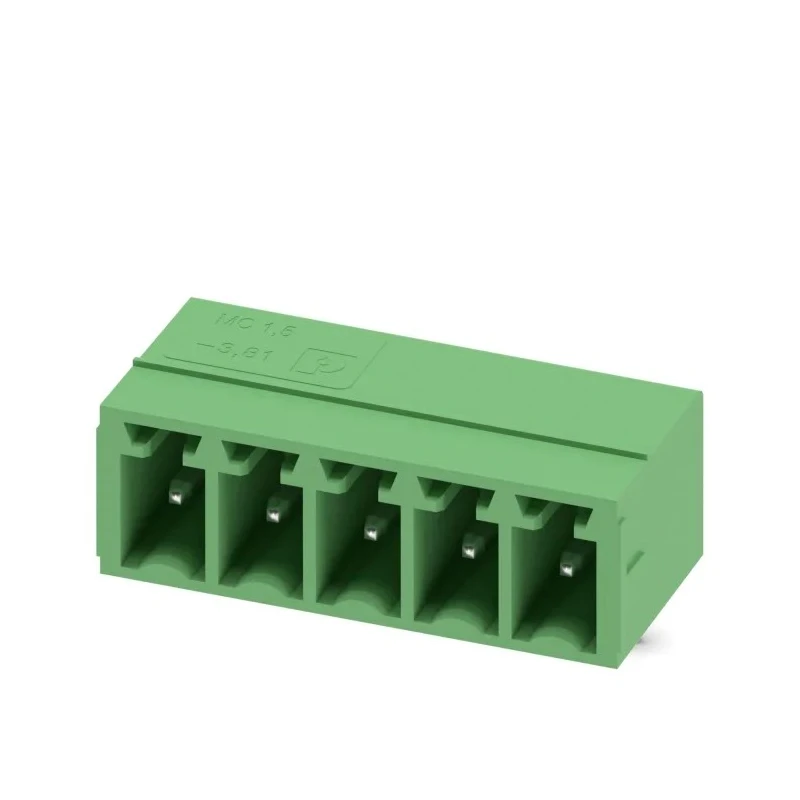

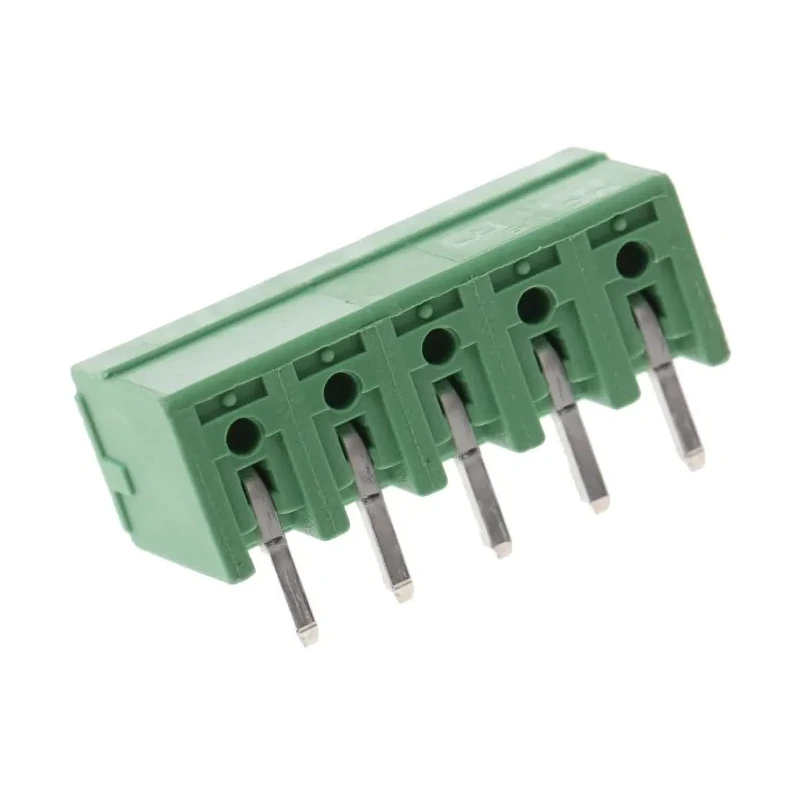

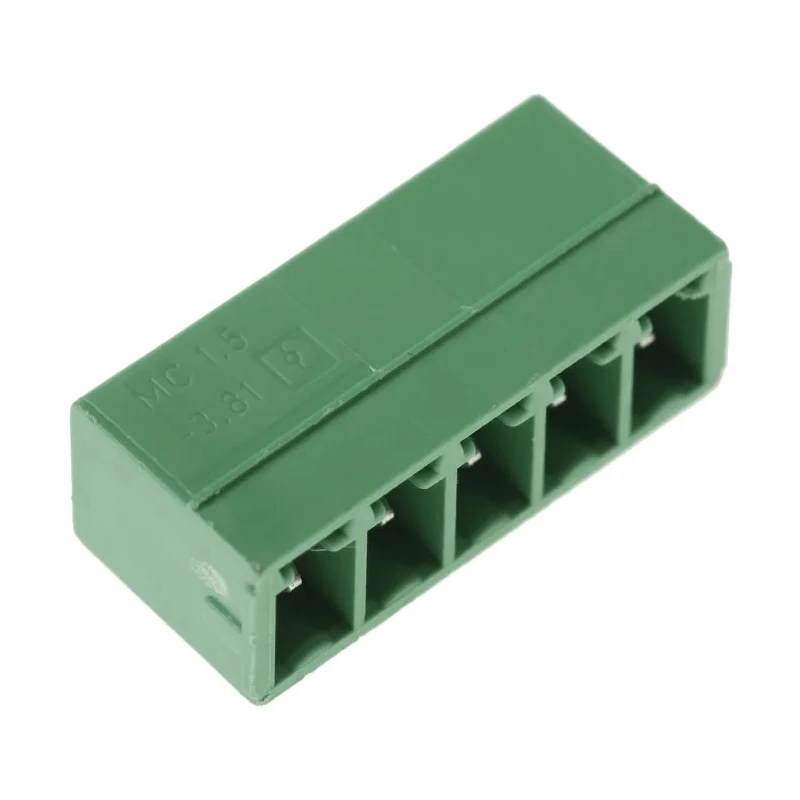

Phoenix Contact MC 1.5/5-G-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, Male, 8A, 300V 1803303
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Right Angle |
| Current | 8A |
| Operating Temperature Range | -40 to 100 °C |
| Length | 9.2mm |
| Model | 1803303 |
| Depth | 10.65mm |
| Width | 20.44mm |
| Housing Material | Polybutylene Terephthalate |
| Series | MC 1.5/ 5-G-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Maximum Wire Size mm² | 1.5mm² |
| Wire Connection Method | Solder |
| RS PRO Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- 5-contact, single-row terminal block ensures secure circuit connections.
- 3.81 mm pitch design suits compact PCB layouts and optimises space.
- Rated for 8A current and 300V for medium-power circuits.
- Features right-angle, male connector housing made of polybutylene terephthalate.
- Solder termination method and compatibility with wave soldering for robust mounting.
- Supports maximum wire size of 1.5 mm² for versatile wiring solutions.
- Green colour allows easy identification in control panels.
- UL, CSA, and RoHS-compliant for reliable, safe operation.
Product Description
Phoenix Contact 1803303 MC 1.5/5-G-3.81 Series pluggable terminal block is designed for efficient electrical connections in industrial and commercial applications. This terminal block features robust construction, a right angle orientation for space-saving installation, and high reliability standards.

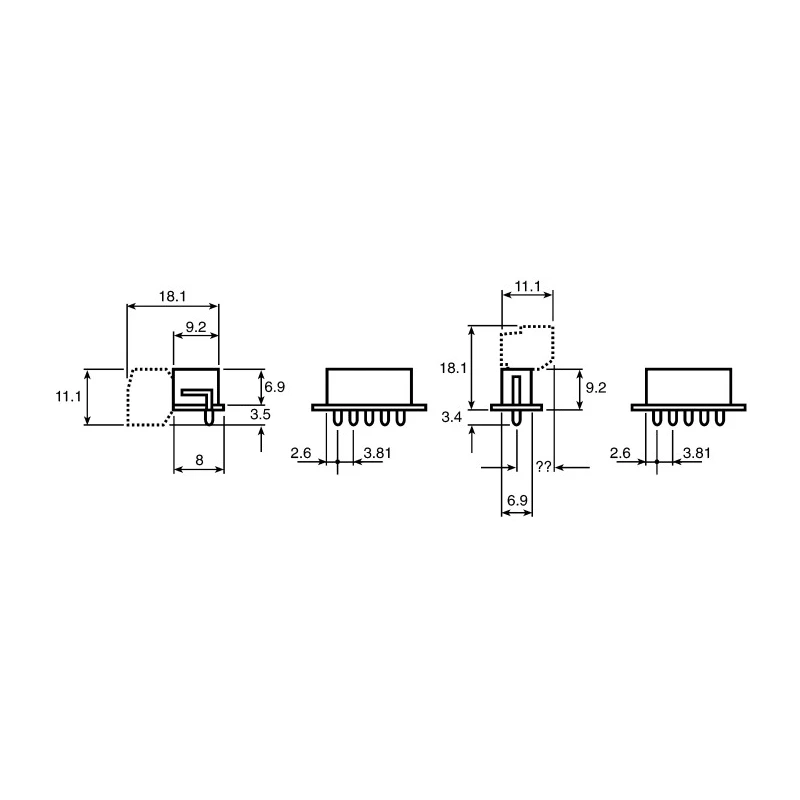

The 5-contact, single-row configuration facilitates secure and reliable PCB connections. Its 3.81 mm pitch and compact dimensions (Depth: 10.65 mm, Length: 9.2 mm, Width: 20.44 mm) make it suitable for dense or limited-space circuit designs. The housing is constructed from polybutylene terephthalate, delivering durability and electrical insulation.
5-contact design, suitable for control panels, automation, and communication circuits. Rated for 8A and 300V - supports medium-current, medium-voltage connectivity. Right angle male connector for space optimisation and simplified PCB layout.
Solder wire connection method, compatible with wave soldering, ensuring strong electrical joins. Supports wire sizes up to 1.5 mm² for flexibility in wiring. Green housing aids component identification and assembly efficiency.
Meets stringent safety and environmental standards, including EU RoHS, EU REACH SVHC, cULus, CSA, and CHINA RoHS.
This terminal block is widely applied in industrial automation systems, power distribution boards, communication device PCB layouts, and electrical cabinet assemblies. Its header design enables easy assembly and disassembly, streamlining installation and maintenance processes.
With an operating temperature range from -40°C to +100°C, it sustains performance in varied environments. Wave soldering is recommended for efficient production and assembly stability. The product’s compact footprint and reliable connection contribute to improved performance and design flexibility in electrical systems.
Browse more Phoenix Contact products and explore the EnvMart Pluggable Terminal Block selection for reliable wiring and connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 8A and a voltage of 300V, making it suitable for medium-power circuits.
The pitch size of this terminal block is 3.81 mm, which is designed for compact PCB layouts.
The terminal block has a length of 9.2 mm, a width of 20.44 mm, and a depth of 10.65 mm.
It supports a maximum wire size of 1.5 mm², allowing for versatile wiring solutions.
This model features a right-angle male connector, which aids in space optimization on PCBs.
The recommended wire connection method is solder, and it is compatible with wave soldering for robust mounting.
It meets several compliance standards, including EU RoHS, EU REACH SVHC, cULus, CSA, and CHINA RoHS.
The operating temperature range for this model is from -40°C to +100°C, allowing it to perform in varied environments.
This terminal block is widely applied in industrial automation systems, power distribution boards, and communication device PCB layouts.
The housing is constructed from polybutylene terephthalate, providing durability and electrical insulation.
This terminal block features a 5-contact design, facilitating secure and reliable PCB connections.
The terminal block is green, which allows for easy identification in control panels and during assembly.
