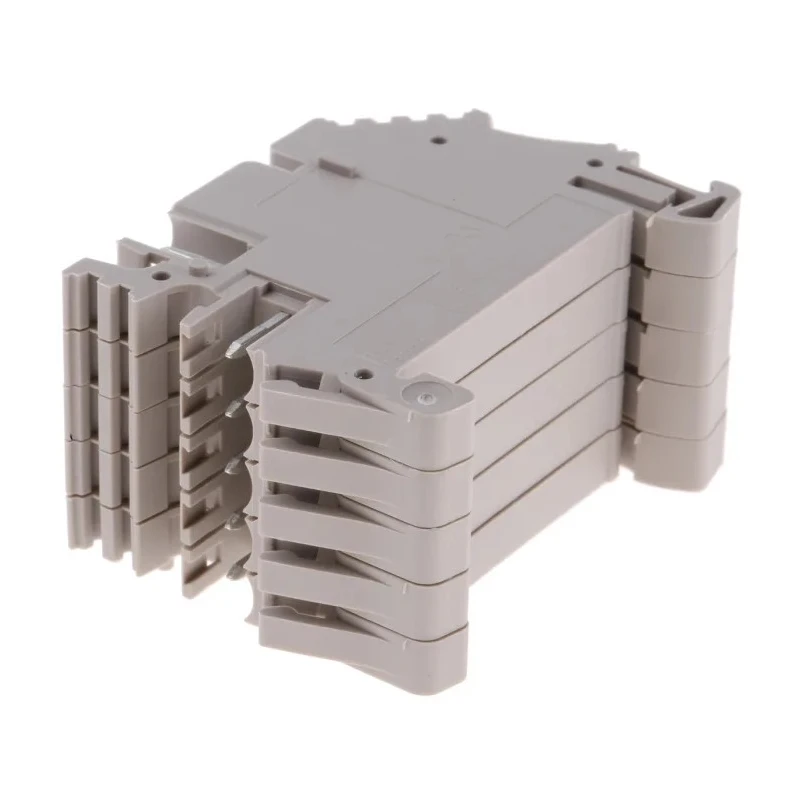

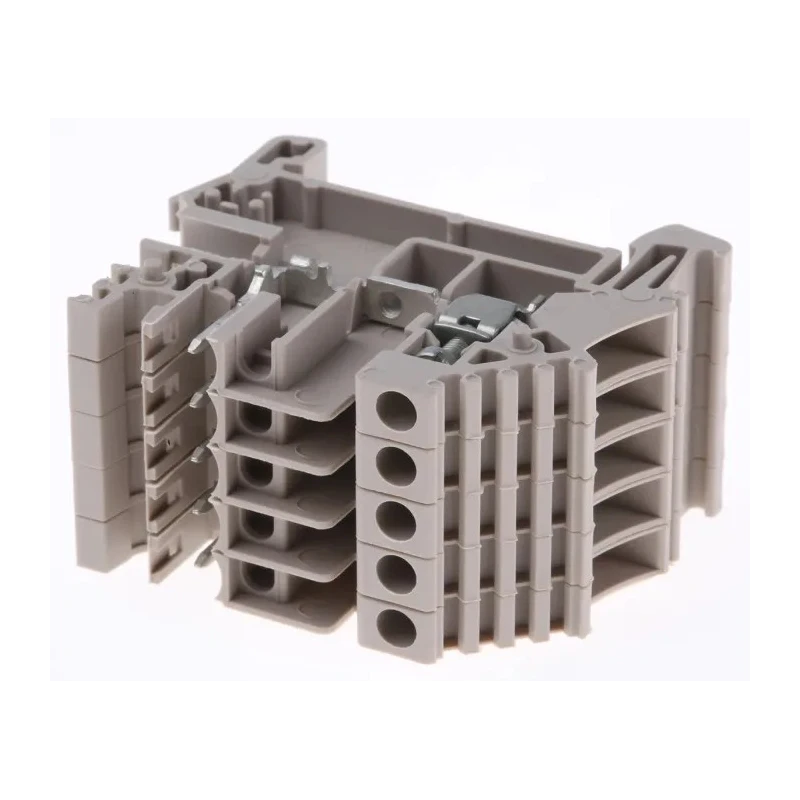

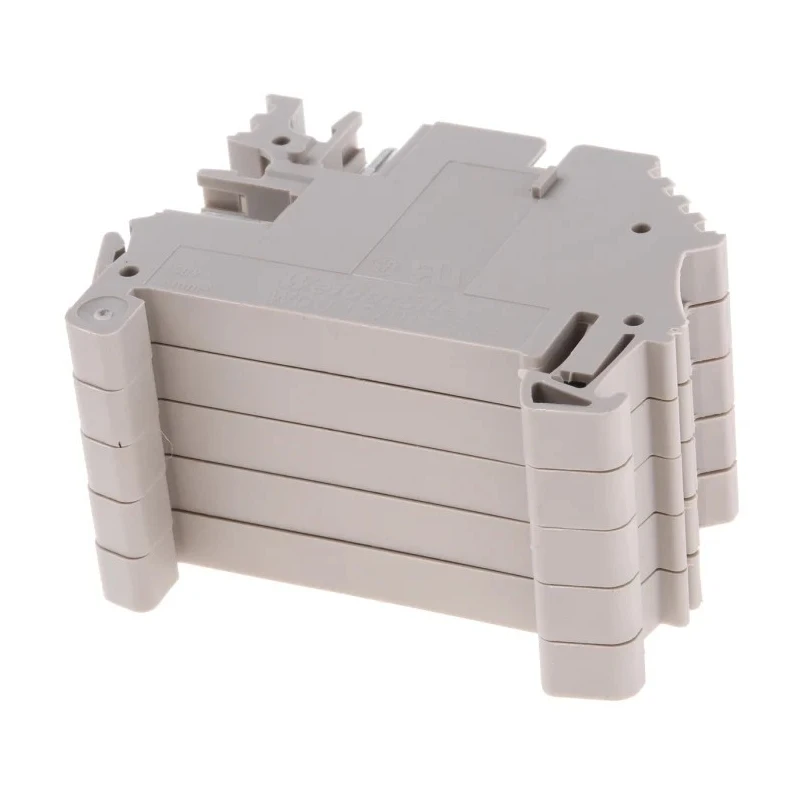

Weidmüller W Series 1-Contact Male Interface Module Clamping Yoke Connector DIN Rail Mount 16A 250V 1577340000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller W Series 1-Contact Male Interface Module Clamping Yoke Connector DIN Rail Mount 16A 250V 1577340000

Name: Weidmüller W Series 1-Contact Male Interface Module Clamping Yoke Connector DIN Rail Mount 16A 250V 1577340000
Brand: Weidmuller
SKU: 149725
Price: 3.25 USD
Availability: InStock



Category Interface Modules Brand Weidmuller Condition New

Specifications

Country of Origin	Czech Republic
Voltage	250V
Brand	Weidmüller
Material	PA 66
Current	16A
Length	49mm
Depth	37.5mm
Connector Type	Clamping Yoke
Width	5.08mm
Gender	Male
Mount Type	DIN Rail
Series	W
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-50°C
Wire size	14, 22AWG
Number of Contacts	1
Cable CSA	0.5, 4mm²
Continuous Operating Temperature	-50 °C to 100 °C
Nominal conductor csa	1.5mm2
Test Proof Voltage	4kV

Key Features

The module provides a secure clamping yoke type connector for reliable electrical connections.
It is compatible with wire sizes 14 to 22 AWG, supporting nominal conductor CSA of 1.5mm².
Operates within a temperature range from -50°C to 120°C ensuring performance in harsh environments.
The device is suitable for use with TS32 'G' rail and TS35 'Top Hat' rail DIN mounting systems.
Tested for a proof voltage of 4kV ensuring electrical safety and compliance hazards.
Constructed from PA 66 material offering durability and resistance against environmental factors.

Product Description

Weidmüller 1577340000 1-Contact Male Interface Module is a clamping yoke connector designed for DIN Rail mounting applications with a rated current of 16A and voltage rating of 250V. It offers reliable, industry-grade electrical connectivity for demanding industrial, electrical distribution, and automation systems.

The interface module supports wire sizes 14 and 22 AWG and a nominal conductor cross-sectional area of 1.5mm², making it suitable for various installation requirements. Its continuous operating temperature range from -50°C to 100°C (maximum 120°C) provides robustness in both low and high-temperature environments. The test proof voltage of 4kV ensures safe operation within electrical circuits subject to high voltages.

This product is engineered for compatibility with TS32 'G' rail and TS35 'Top Hat' rail DIN mounting systems common in control cabinet setups. Constructed from high-grade PA 66 material, it delivers excellent mechanical strength, flame resistance, and environmental protection.

The module provides a secure clamping yoke connection for stable contact and minimal electrical resistance. Rated at 250 V AC and 16 A current, it meets demanding power distribution needs. Compact physical dimensions (width 5.08mm, depth 37.5mm, length 49mm) allow efficient panel space utilization.

Designed for industrial, manufacturing, automation, and electrical distribution applications requiring DIN Rail interface modules. Materials and design comply with RoHS and current environmental standards ensuring sustainability.

Interfaces with BL terminal range and DIN Rail terminal block series for expanded modular assembly. Product is of Czech Republic origin and supplied new, ensuring warranty and quality assurance.

This interface module is an essential component for engineers and technicians working with electrical control panels, automation systems, and industrial power distribution assemblies. Its robust build and reliable electrical specifications support enhanced system safety and longevity.
