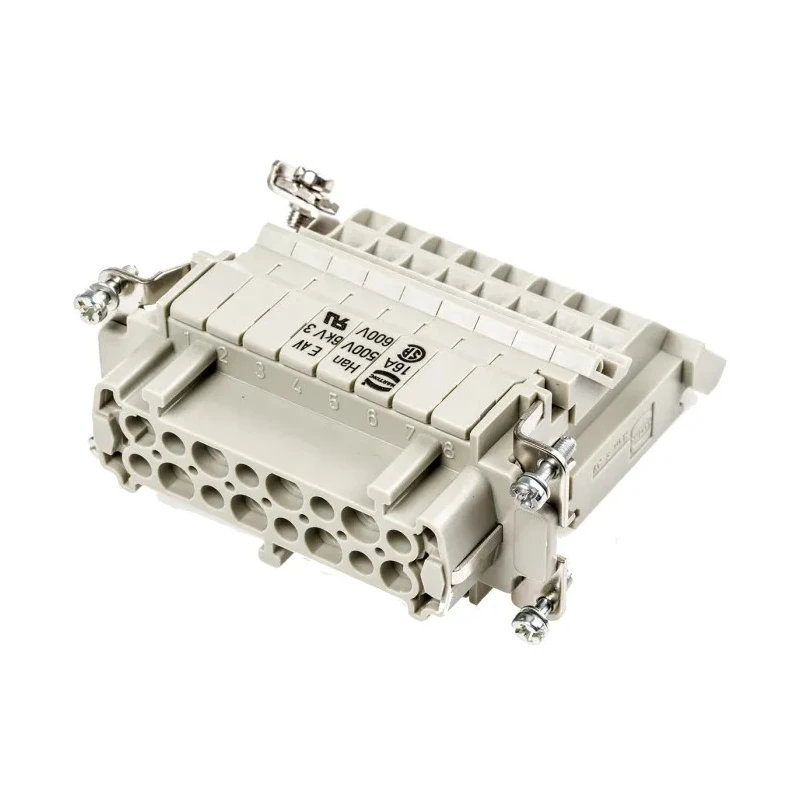

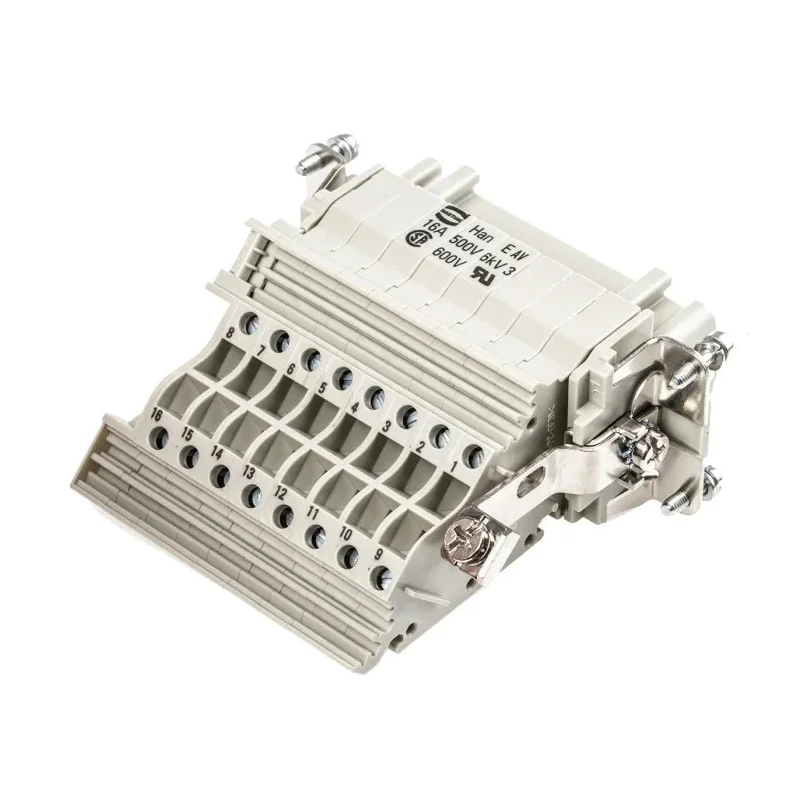

HARTING Han E AV Series 16-Contact Female Interface Module Cable 16A 500V 09330164725

Free Delivery in India | Lowest Global Shipping Charges

HARTING Han E AV Series 16-Contact Female Interface Module Cable 16A 500V 09330164725

Name: HARTING Han E AV Series 16-Contact Female Interface Module Cable 16A 500V 09330164725
Brand: HARTING
SKU: 172506
Price: 98.57 USD
Availability: InStock



Category Interface Modules Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	HARTING
Orientation	Horizontal
Current	16A
Length	34mm
Depth	34mm
Width	34mm
Gender	Female
Mount Type	Cable
Series	Han E AV
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Wire size	14, 24AWG
Number of Contacts	16
Cable CSA	0.2, 2.5mm²

Key Features

The module has 16 female contacts with horizontal orientation for cable mount installation.
Rated for currents up to 16 amperes and voltage up to 500 volts.
Wire size compatibility ranges from 14 AWG to 24 AWG with cable cross-sectional area from 0.2 to 2.5 mm².
Operating temperature range is −40°C minimum to 125°C maximum for versatile environmental uses.
Compact dimensions of 34 mm length, width, and depth for space-efficient installations.
Mechanical durability supports 500 mating cycles, ensuring reliable long-term use.
Compatible with Han E ES AV and Han E AV range of hoods and housings for flexible system integration.
Suitable for industrial, electronic component assemblies, power and connector applications.

Product Description

HARTING 09330164725 Han E AV Series 16-Contact Female Interface Module Cable is designed for secure and customizable wire termination solutions in industrial and electronic equipment. Rated for 16 amperes current and 500 volts, this interface module offers high performance in demanding environments.

It features 16 female contacts with a horizontal orientation, supporting wire sizes from 14 AWG to 24 AWG and cable cross-sectional areas between 0.2 to 2.5 mm². Its compact dimensions of 34 mm length, width, and depth allow it to fit efficiently within limited panel space.

The module operates reliably within a wide temperature range of −40°C to 125°C, making it suitable for harsh industrial and electronic environments. It provides robust mechanical endurance with a lifecycle of up to 500 mating cycles, ensuring long-term durability and dependable connections.

This interface module is compatible with the Han E ES AV and Han E AV series of hoods and housings, facilitating easy integration into existing systems. It is widely used in industrial electronics, power connectors, and equipment terminal blocks where reliable and precise contact is required.

The module has 16 female contacts with horizontal orientation for cable mount installation. Rated for currents up to 16 amperes and voltages up to 500 volts. Supports wire sizes from 14 AWG to 24 AWG and cable CSA from 0.2 to 2.5 mm².

Operational temperature range from −40°C to 125°C for versatile use cases. Compact 34 mm × 34 mm × 34 mm dimensions for space-saving installation. Durable with 500 mechanical mating cycles lifecycle. Compatible with Han E ES AV and Han E AV housing ranges.

Ideal for industrial, laboratory, electronic equipment, and power connector applications. Connector usage should avoid mating/unmating under load for safety and longevity. Explore more HARTING Interface Modules and related components on EnvMart for your industrial and electronic system needs.
