Phoenix Contact 34-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 1A 2962599

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact 34-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 1A 2962599

Name: Phoenix Contact 34-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail Mount 1A 2962599
Brand: PHOENIX CONTACT
SKU: 201606
Price: 95.45 USD
Availability: InStock



Category Interface Modules Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	25, 60V ac
Brand	Phoenix Contact
Orientation	Straight
Current	1A
Length	110mm
Model	2962599
Depth	45mm
Connector Type	Flat Ribbon Cable
Width	50mm
Gender	Male
Mount Type	DIN Rail
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-20°C
Wire size	16, 26AWG
Number of Contacts	34
Cable CSA	0.14, 1.5mm²
Test Proof Voltage	500V ac

Key Features

The connector supports 34 contacts for interface applications.
It features a straight orientation and male gender type.
The module supports wire sizes of 16 and 26 AWG with cable CSA ranging from 0.14 to 1.5 mm².
Operating temperature range is from -20°C to 50°C.
The module depth is 45 mm, width 50 mm, and length 110 mm.
It includes locking levers for secure connections and side components with identification labels.
Mounts on NS 35 / 7.5 DIN rails as per IEC 60664 and DIN VDE 0110 standards.
Manufactured in Germany ensuring high quality and reliability.

Product Description

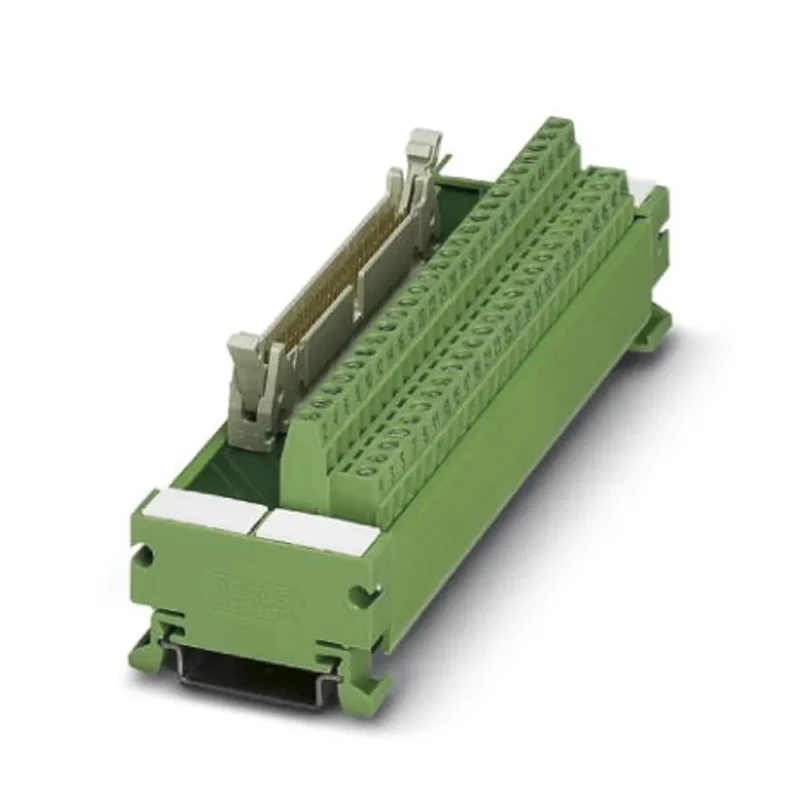

The Phoenix Contact 2962599 is a 34-Contact Male Interface Module designed for reliable connections in industrial and electronic applications. This interface module connects ribbon cable socket boards to screw or tension spring terminals, providing secure and efficient signal transmission.

It is engineered for DIN rail mounting on NS 35 / 7.5 rails, offering a compact footprint with dimensions of 110 mm length, 50 mm width, and 45 mm depth. Rated for a current of 1A and operating voltage between 25 and 60 V AC, it ensures proper performance in a range of electrical environments.

The module accommodates wire sizes of 16 and 26 AWG with cable cross-sectional area from 0.14 to 1.5 mm² and operates reliably within a temperature range of -20°C to 50°C. The test proof voltage rating of 500 V AC provides enhanced safety margin for industrial use.

Locking levers and side components equipped with identification labels enhance installation safety and ease of maintenance. The straight orientation and flat ribbon cable connector type improve cabling organization and reduce connection errors.

Manufactured in Germany, this interface module complies with IEC 60664 and DIN VDE 0110 standards as well as UL and CUL approvals, highlighting its high-quality construction and safety compliance.

The connector supports 34 contacts for complex multi-wire connections. Male gender with straight orientation fits standard ribbon cable sockets. Locking levers secure the connection firmly on DIN rails. Identification labels aid in easy connection management and troubleshooting.

IEC 60664 and DIN VDE 0110 standards ensure industrial electrical safety. Wide operating temperature range suitable for various environments. Flat ribbon cable connector type simplifies integration in control panels and automation systems.

Manufactured in Germany ensuring consistent premium quality. Ideal for industrial automation, electronics components, electrical enclosures, and instrumentation systems.

This Phoenix Contact interface module is suitable for use in industrial manufacturing lines, electrical distribution systems, and automation controls. It facilitates precise and secure connections for signal transmission and control wiring in complex electrical systems.
