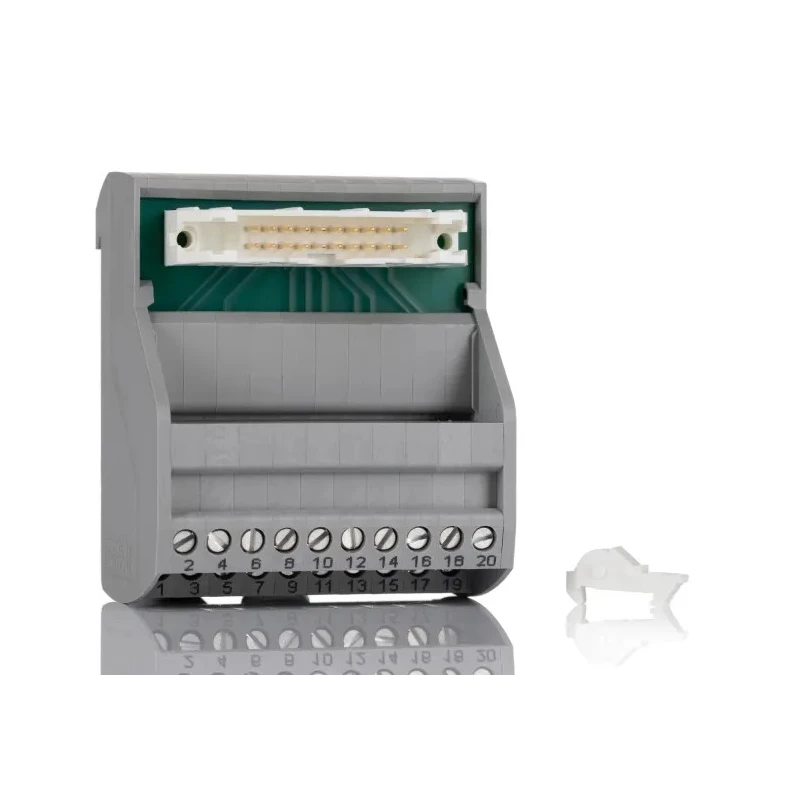

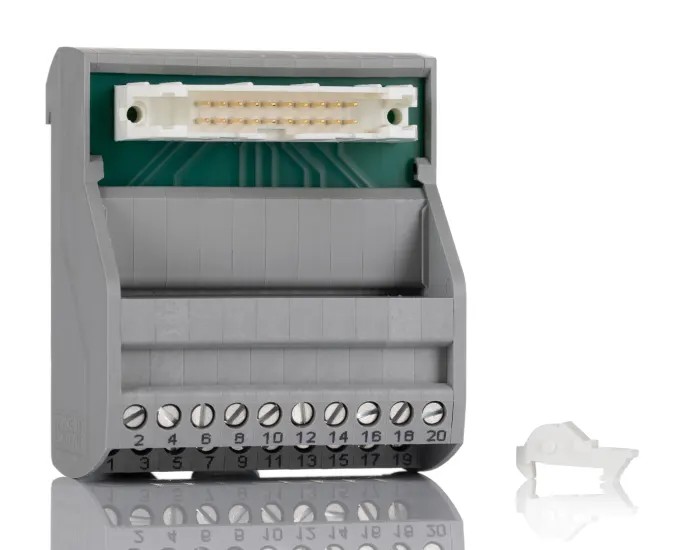

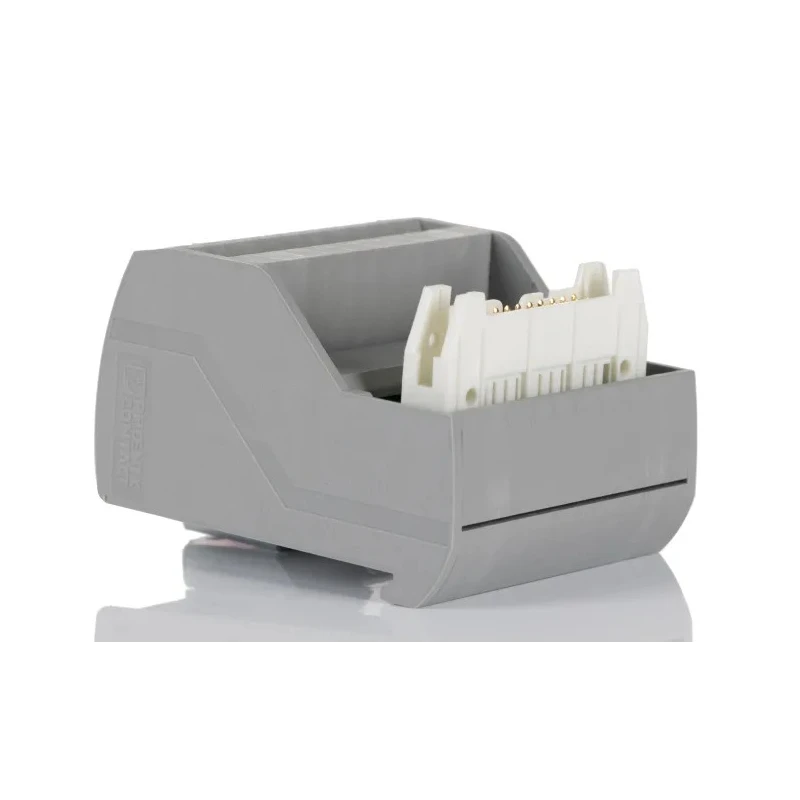

Phoenix Contact VIP-2 Series 20-Contact Male Interface Module Flat Ribbon Cable Connector DIN Rail 1A 2315049

Phoenix Contact 2315049 VIP-2 Series 20-Contact Male Interface Module is a compact and sturdy flat ribbon cable connector designed for reliable DIN rail mounting applications. Rated for a current of 1A per contact, this interface module facilitates precise connection between hardware and master devices, ensuring consistent sensor signal transmission in industrial and automation environments.

This module features 20 male contacts configured straight for easy integration with flat ribbon cables. Its versatile screw terminals are designed to accommodate conductors sized between 0.2 mm² and 4 mm² (12 to 24 AWG), providing a secure and vibration-resistant connection. It is rated for test proof voltages up to 600 volts and operates reliably within temperature limits from -20°C to 50°C.

The housing is made from durable PA material that offers effective protection against impacts and mechanical wear, helping maintain system integrity in demanding conditions. Measuring 55.1 mm in length, 56 mm in width, and 65.5 mm in depth, its slim profile minimizes footprint inside control panels or enclosures.

Installation is streamlined with convenient DIN rail mounting, eliminating the need for specialized tools. Meeting UL 94-V0 flammability standards and DIN EN 50178 for power installations ensures safety and compliance for industrial and laboratory uses.

This interface module is suitable for a broad spectrum of applications including industrial automation, electrical equipment assembly, signal routing in control panels, and reliable sensor interfacing in manufacturing environments.

Features 20 straight male contacts ensuring secure sensor signal transmission. Supports wire sizes between 12 and 24 AWG, suitable for diverse applications. Constructed with screw terminals for firm conductor attachment even under vibration.

Equipped for operation within a temperature range of -20°C to 50°C. Compact dimensions of 55.1 mm length, 56 mm width, and 65.5 mm depth save cabinet space. Rated for test proof voltage up to 600V ensuring operational safety.

Designed with a robust PA housing for effective impact protection and durability. Compatible with DIN rail mounting, enabling easy installation without special tools. Complies with UL 94-V0 flammability rating and DIN EN 50178 power installation standards.

Explore more Interface Modules and related Phoenix Contact products at EnvMart to complete your electrical and automation project requirements.
