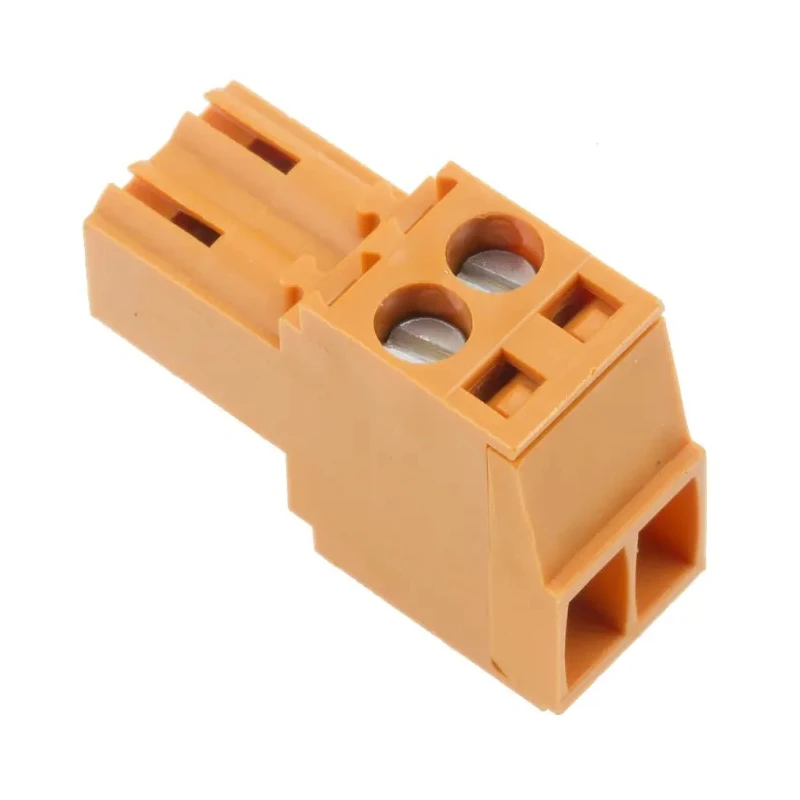

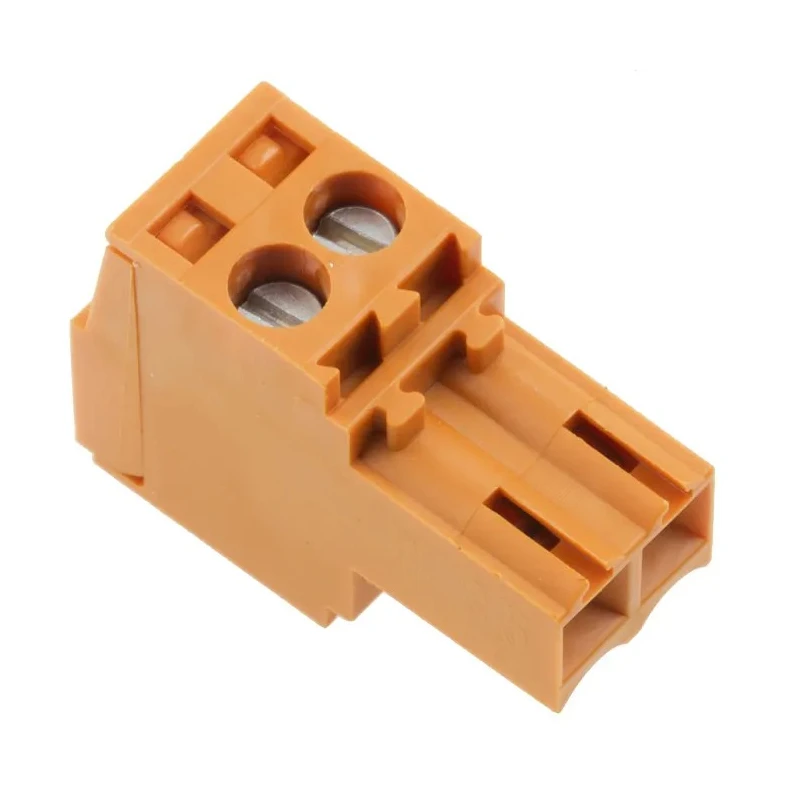

Weidmüller BL Series Pluggable Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 300V, Female, Orange, 1597360000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | 180° |
| Current | 10A |
| Depth | 18.5mm |
| Width | 7mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Tension Clamp Spring |
Key Features
- Provides secure electrical connections using tension clamp spring technology.
- Designed for wire sizes from 28 AWG to 14 AWG for versatility in industrial wiring.
- Orange housing ensures easy identification and organization in control panels.
- Supports up to 10A current for reliable operation in automation and control systems.
- Compact form factor with a width of 7 mm and depth of 18.5 mm, suitable for space-constrained installations.
- Constructed from polybutylene terephthalate for robust durability and insulation.
- Female connector orientation at 180° enables straightforward panel mounting.
- Meets international requirements for performance and safety in automation environments.
Product Description
The Weidmüller BL Series Pluggable Terminal Block model 1597360000 is engineered for reliable electrical connections in industrial and automation environments. With 2 contacts and a 3.5 mm pitch in a single row, it offers a compact and highly versatile solution for wire terminations in control panels and automation systems.
This terminal block utilizes a tension clamp spring wire connection method, allowing for secure and maintenance-free installation. It accommodates wire sizes from 28 AWG to 14 AWG, providing flexibility across multiple wiring standards in process control, data acquisition, and industrial infrastructure.
Rated for applications up to 300V and supporting 10A of current, the product ensures optimal safety and performance in demanding electrical circuits. The female connector orientation (180°) simplifies panel integration, while the orange polybutylene terephthalate housing delivers clear identification and robust insulation properties.
Its compact overall dimensions - 7 mm width and 18.5 mm depth - make it ideal for dense installations or modular setups in automation cabinets and electronic equipment. The high-quality copper alloy contact material and tin plating further enhance electrical conductivity and mechanical durability.
Weidmüller BL Series terminal blocks are widely used in industrial automation, electrical panels, and control cabinet systems. Their reliable design supports applications in manufacturing facilities, industrial machinery, HVAC control, and laboratory setups requiring secure wire management.
Provides secure and vibration-resistant electrical connections. Supports broad wire size compatibility for industrial and commercial use. Easy identification and modular installation streamline wiring processes. Outstanding insulation properties for enhanced safety.
Durable spring clamp mechanism reduces maintenance. Ideal for automation, process control, and instrumentation panels. Robust polybutylene terephthalate housing resists chemicals and mechanical stress. Designed for straightforward integration into electronic assemblies.
For more Pluggable Terminal Block solutions, explore the complete Weidmüller BL Series and other industrial connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Weidmüller BL Series Pluggable Terminal Block is rated for a voltage of 300V.
It supports a current capacity of up to 10A, making it suitable for various automation and control applications.
This unit accommodates wire sizes from 28 AWG to 14 AWG, providing flexibility for different wiring standards.
The pitch of this terminal block is 3.5 mm, allowing for compact installations in control panels and automation systems.
It has a width of 7 mm and a depth of 18.5 mm, making it suitable for space-constrained installations.
The connector orientation is at 180°, which simplifies the panel mounting process.
The housing is constructed from polybutylene terephthalate, which provides robust insulation and durability.
It utilizes a tension clamp spring wire connection method, ensuring secure and maintenance-free installation.
The country of origin for this terminal block is Germany.
This model features 2 contacts, enhancing its versatility in various applications.
It is widely used in industrial automation, electrical panels, and control cabinet systems, supporting secure wire management.
It meets international requirements for performance and safety in automation environments, ensuring reliable electrical connections.
