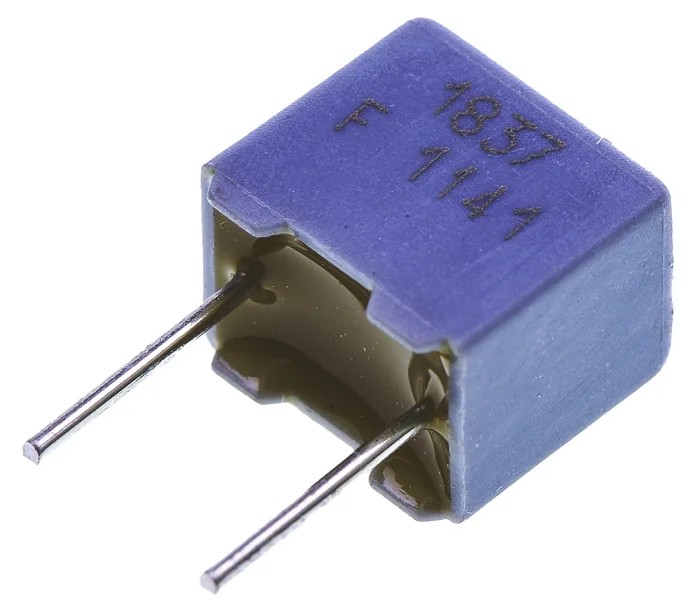

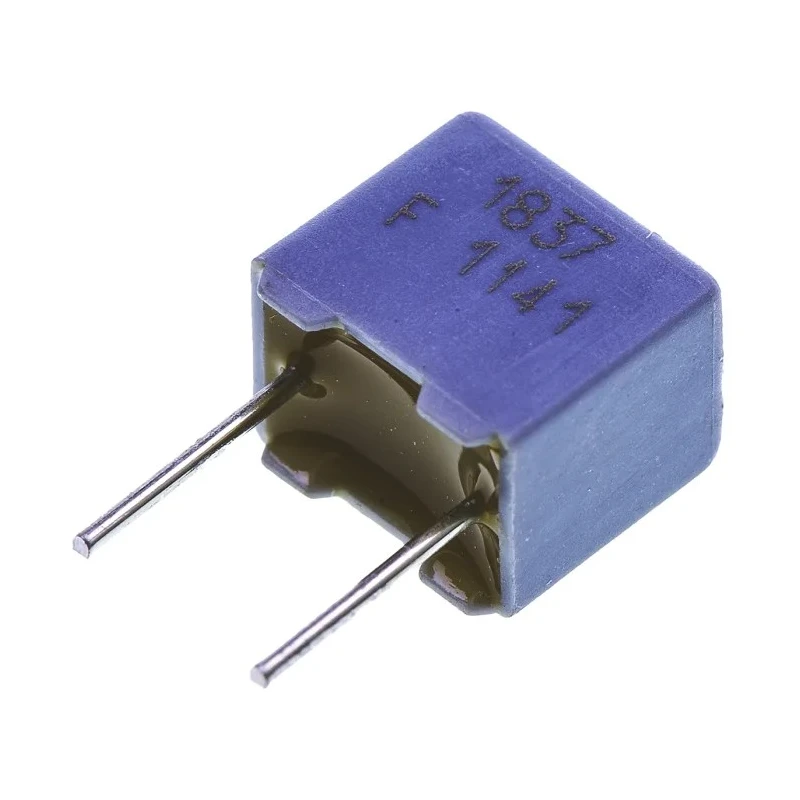

Vishay MKP 1837 Film Capacitor ±1 % Tolerance 22 nF 100 V dc 63 V ac Through Hole MKP1837322011

Vishay MKP1837322011 is a precision Film Capacitor from the MKP 1837 series, featuring a capacitance of 22 nF with a tight tolerance of ±1 % for accurate circuit applications. It supports a rated DC voltage of 100 V and an AC voltage of 63 V. This through hole capacitor is designed to provide high insulation resistance of 100000 MΩ, ensuring minimal leakage and high reliability in demanding electronic circuits.

The capacitor is encapsulated in a flame retardant plastic case rated UL 94V-0 with an epoxy resin seal, providing effective protection against environmental impairments while maintaining safety standards. It is suitable for high frequency coupling, oscillator, and timing circuit applications, making it ideal for industrial electronics, power supplies, and communication devices.

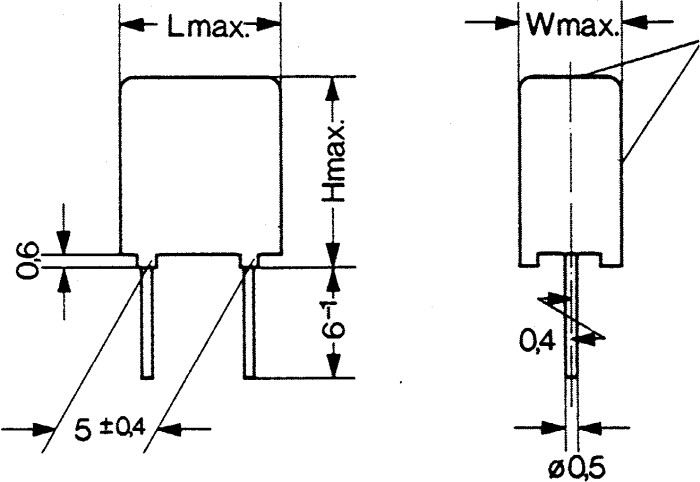

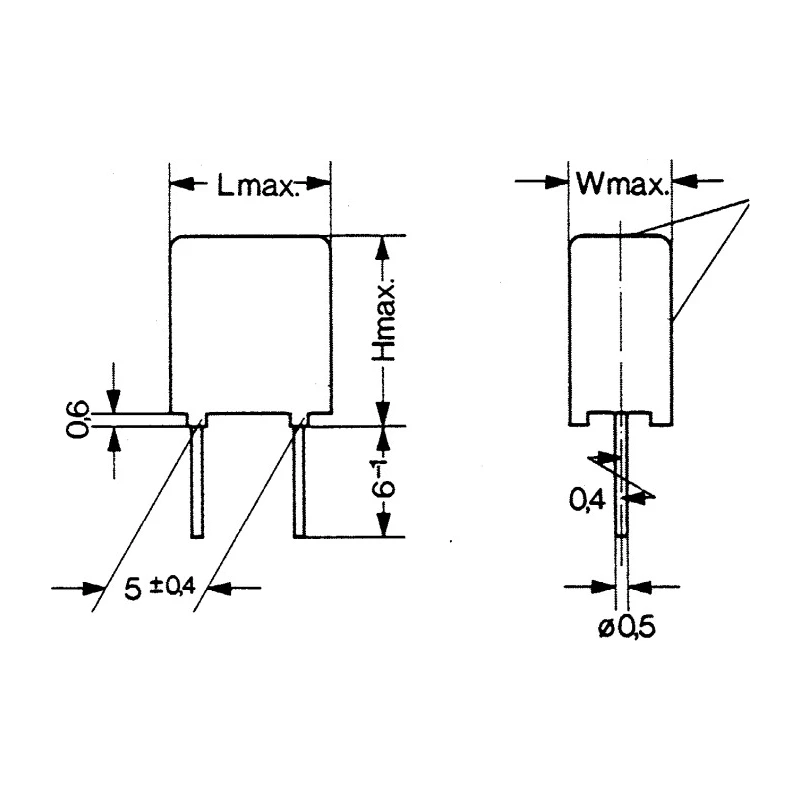

Dimensionally compact with a length of 7.5 mm, height of 7 mm, and width of 5.5 mm, this component fits efficiently within device layouts. The pin pitch is 5 mm, with lead length 6 mm and a lead diameter of 0.5 mm, facilitating reliable soldering and mechanical stability on PCBs.

The operating temperature range spans from -55°C to 100°C, allowing usage in various thermal environments without performance degradation. Vishay ensures RoHS compliance, which aligns with environmental and safety regulations for electronic components.

This film capacitor is widely used in applications involving high frequency filters, oscillators, timing circuits, and general purpose coupling and decoupling in analog and digital electronics.

High precision capacitance with ±1 % tolerance ensures reliable performance. Rated for 100 V dc and 63 V ac applications. Through hole mounting allows secure solder terminal connections. Encapsulated in flame retardant plastic case with epoxy resin seal.

Operating temperature range from -55°C to 100°C for versatile applications. Suitable for high frequency coupling, oscillator, and timing circuits. Lead pitch of 5 mm and lead length of 6 mm with 0.5 mm lead diameter. Complies with RoHS standards ensuring environmental safety.

Compact dimensions: 7.5 mm length, 7 mm height, and 5.5 mm width. Insulation resistance rated at 100000 MΩ. Explore more Vishay Film Capacitors and related electronic components in EnvMart's comprehensive catalog for your industrial and laboratory electronics needs.
