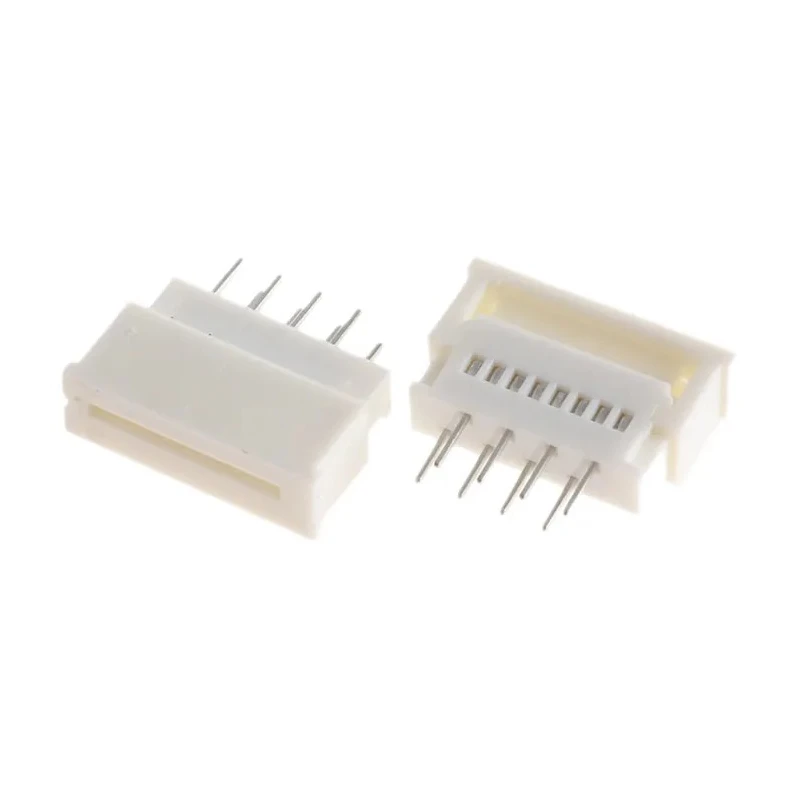

Molex 1.25 mm Pitch 8 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2085
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The connector features a Zero Insertion Force (ZIF) mechanism for easy insertion and reduced wear.
- Constructed with phosphor bronze contacts plated with tin over nickel for reliable conductivity.
- Housing material is Polyethylene Terephthalate ensuring durability and heat resistance.
- Operates at a voltage rating of 200 V and a current rating of 1 A suitable for electronic automotive and general FPC applications.
- Designed with a slide type actuator providing secure connection and a locking mechanism for stable installation.
- One row connector with 8 contacts arranged straight for space-saving layouts.
- Temperature operating range spans from -20°C to 80°C allowing use in diverse environments.
- Ideal for use where tight packaging and repeat cycling are necessary due to its durable design.
Product Description
The Molex 39-53-2085 is a high-quality 8 Way Straight Female FPC Connector featuring a 1.25 mm pitch and designed for through hole mounting with solder termination. This connector belongs to the 5597 series of ZIF (Zero Insertion Force) PCB connectors, providing a space-saving design essential for compact electronic assemblies.
Manufactured with phosphor bronze contacts plated with tin over nickel, the connector ensures consistent electrical performance and corrosion resistance. The housing is made from Polyethylene Terephthalate, which offers excellent durability and thermal stability within the operating temperature range of -20°C to 80°C.
This connector supports a rated current of 1 A and voltage up to 200 V, making it suitable for electronic automotive and other industrial FPC applications. It incorporates a slide type actuator enabling easy insertion and a secure connection between the FPC and connector terminals, coupled with a locking mechanism for firm retention.
The one-row configuration with 8 contacts aligned straight supports tight packaging applications where space is critical. The ZIF insertion force feature allows repeated cycles with minimal contact wear, enhancing connector longevity and reliability in demanding conditions.
These connectors are ideal for use in laboratory instruments, manufacturing electronics, automotive electrical systems, and other industrial uses requiring reliable, compact interconnections.
Zero Insertion Force design minimizes wear and facilitates easy FPC installation. Space-saving straight contact layout optimizes PCB real estate. Durable materials withstand harsh temperatures and repeated insertions. Slide actuator and locking mechanism ensure secure and stable connections.
Suitable for automotive and general electronic applications. Explore more Molex FPC Connectors and PCB component solutions on EnvMart to enhance your electronic projects and manufacturing processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 200 V and a current rating of 1 A, making it suitable for various electronic applications.
This model features solder termination, which is ideal for through hole mounting applications.
The pitch size of this connector is 1.25 mm, allowing for compact arrangements in electronic assemblies.
The housing is made from Polyethylene Terephthalate, and the contacts are constructed from phosphor bronze with tin over nickel plating for reliable conductivity.
This connector features 8 contacts arranged in a single row, designed for space-saving layouts.
It incorporates a Zero Insertion Force (ZIF) mechanism, which facilitates easy insertion and reduces wear on the contacts.
It is suitable for electronic automotive applications and other industrial uses requiring reliable, compact interconnections.
This model has a straight orientation, which is beneficial for specific PCB layouts.
Yes, it features a locking mechanism that ensures a stable installation and secure connection between the FPC and the connector terminals.
The country of origin for this connector is India.
