| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.65mm |
| Model | BZX585-B3V9,115 |
| Mount Type | Surface |
| Series | BZX585 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 V to 75 V (E24 range) |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 3.98V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 90Ω |
| Typical Voltage Temperature Coefficient | -1.9mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +- 2 pct and +- 5 pct |

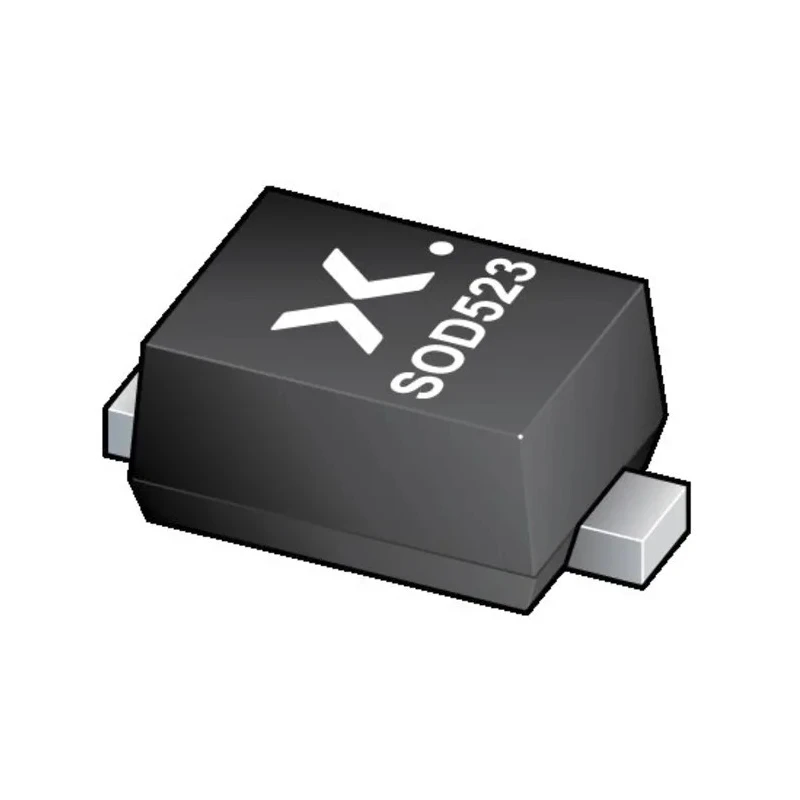

Nexperia BZX585-B3V9,115 is a high precision 3.98 V nominal voltage Zener Diode encapsulated in a compact 2-pin SOD-523 surface mount package. It is designed for voltage regulation and over-voltage protection in small-scale high density electronic circuits. The diode delivers reliable performance with a maximum power dissipation of 300 mW and a tolerance of ±2%, making it suitable for a wide range of low power applications.
This Zener Diode operates within a broad temperature range from -65°C to 150°C, ensuring stability and durability in harsh operating conditions. Its maximum reverse leakage current is low at 3 μA, contributing to minimal power loss and enhanced efficiency.
The device meets automotive-grade standards with AEC-Q101 certification, endorsing its robustness for automotive and industrial electronics. The typical voltage temperature coefficient of -1.9 mV/K allows for compensation in temperature variations, maintaining precise voltage regulation.
The BZX585 series is widely used for voltage regulation, general regulation functions, and voltage reference applications. Its ultra-small SOD-523 package facilitates compact PCB designs while providing effective protection and voltage stability.
Compact surface mount package suitable for high density PCB layouts. Precise voltage regulation with tight ±2% tolerance. Durable performance in a wide temperature range for diverse industrial and automotive applications.
Low reverse leakage current enhances energy efficiency in sensitive circuits. Meets stringent automotive reliability standards (AEC-Q101).
Ideal for industrial, automotive, laboratory, manufacturing, and electronic equipment applications requiring precision voltage regulation and protection. This diode supports circuit stability and safety in power-sensitive devices.
