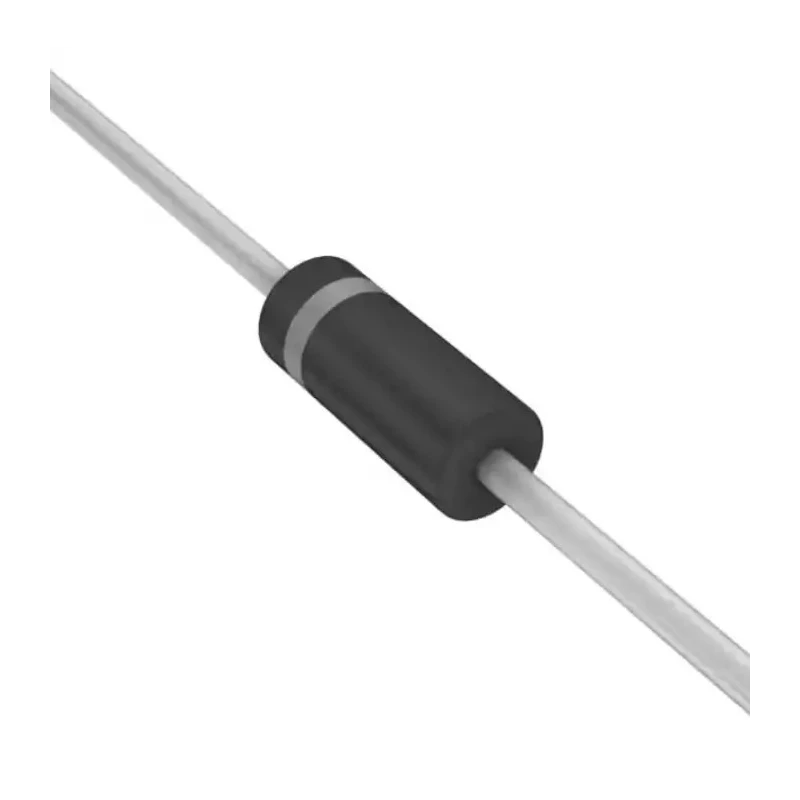

onsemi 1N5363BG Zener Diode 30V Single 5 W Through Hole 2-Pin Case 017AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5363BG |
| Finish | All external surfaces are corrosion resistant and leads are readily solder able |
| Gross Weight | 0.7 gram (approx) |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Case | Void-free, transfer-Moulded, thermo-setting plastic |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by Colour band. When operated in zener mode, cathode will be positive with respect to anode |
| Mounting Position | Any |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 40mA |
| Maximum Reverse Leakage Current | 3.7μA |
| Nominal Zener Voltage Vz | 30V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 8Ω |
Key Features
- Provides precise 30 V nominal zener voltage regulation.
- Offers a maximum power dissipation rating of 5 W for reliable operation.
- Single element configuration with through-hole mounting for easy PCB integration.
- Encapsulated in Case 017AA with axial leads for corrosion resistance and solderable finish.
- Wide operating temperature range from −65°C to +200°C suitable for demanding environments.
- Maximum surge rating up to 180 W for short-term overload protection.
- Tight voltage tolerance of ±5% for consistent performance.
- Minimal reverse leakage current ensures long-term reliability in electronic circuits.
Product Description
The onsemi 1N5363BG Zener Diode is a high-precision, single-element voltage regulator designed for a wide range of electronic and industrial applications. With a nominal zener voltage of 30 V and a maximum power dissipation of 5 W, this diode is ideal for circuits requiring stable voltage regulation and overload protection.
Engineered in an axial-lead, transfer-moulded plastic package (Case 017AA), it offers reliable protection against environmental and mechanical stresses. The superior silicon-oxide passivated junction provides tight operational limits and excellent electrical characteristics, making this zener diode suitable for industrial, laboratory, and commercial electronics.
The through-hole mounting allows straightforward insertion into printed circuit boards, facilitating robust mechanical connections and dependable performance. All external surfaces are corrosion resistant, and leads are readily solderable, ensuring longevity and ease of installation.
Capable of withstanding up to 180 W surge for 8.3 ms, the 1N5363BG supports applications that may experience transient voltage spikes. Its tight ±5% voltage tolerance enables designers to maintain precise voltage requirements across a range of environmental conditions, while the low maximum reverse leakage current (3.7 μA) minimizes losses and enhances circuit reliability.
Wide operating temperature range from −65°C to +200°C allows use in demanding situations such as industrial automation, lab instrumentation, power supply regulation, and control systems. The diode's indicator band marks the cathode for easy polarity identification in assembly and troubleshooting.
Typical applications include voltage regulation, power supplies, reference circuits, surge protection, and other scenarios where maintaining a fixed voltage is critical. Pb-Free packaging is available for compliance with environmental standards.
Explore the entire range of Zener Diodes, including precision voltage regulators and surge protection devices from onsemi on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this model is 30 V, providing precise voltage regulation for various applications.
The maximum power dissipation rating for the 1N5363BG is 5 W, ensuring reliable operation in voltage regulation applications.
This model operates within a wide temperature range from -65°C to +200°C, making it suitable for demanding environments.
The maximum reverse leakage current for this zener diode is 3.7 μA, which helps enhance circuit reliability.
This model features through-hole mounting, allowing for straightforward insertion into printed circuit boards.
The maximum surge rating for this diode is up to 180 W for short-term overload protection, accommodating transient voltage spikes.
The dimensions of this model are 8.89 mm in length and 3.68 mm in height, fitting within Case 017AA specifications.
The 1N5363BG is a single element zener diode, designed for voltage regulation applications.
This model is encapsulated in a void-free, transfer-moulded, thermo-setting plastic package, providing corrosion resistance.
Typical applications for this zener diode include voltage regulation, power supplies, reference circuits, and surge protection.
The cathode of this model is indicated by a color band, which aids in correct assembly and troubleshooting.
The 1N5363BG is classified as a voltage regulator zener diode, designed to maintain a stable voltage.
