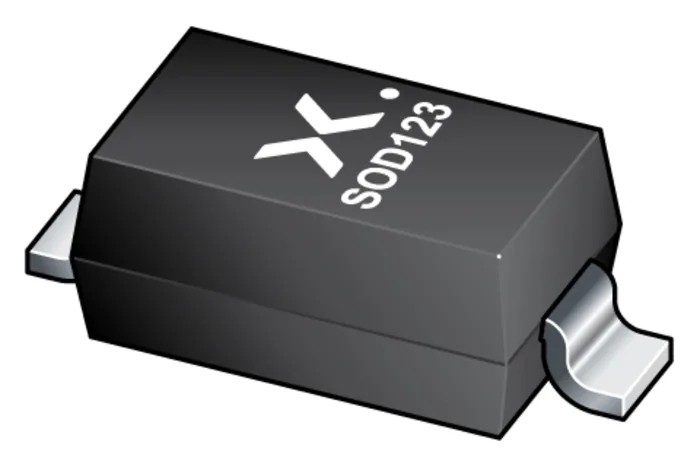

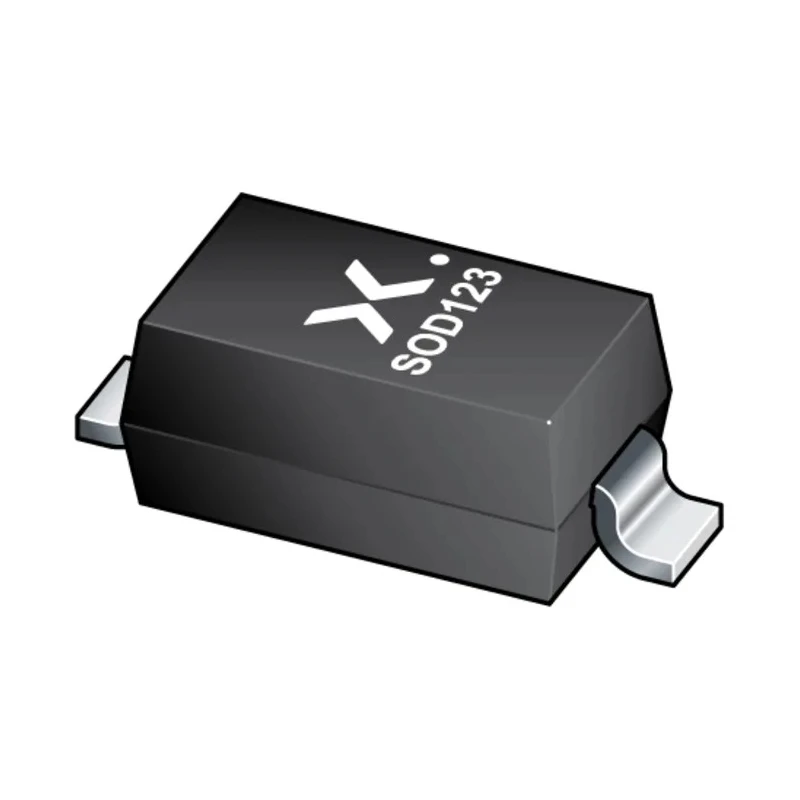

Nexperia Low Leakage Switching Diode Single 215 mA 75 V Surface Mount SOD-123 Package BAS116GWX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Low Leakage Switching Diode Single 215 mA 75 V Surface Mount SOD-123 Package BAS116GWX

Name: Nexperia Low Leakage Switching Diode Single 215 mA 75 V Surface Mount SOD-123 Package BAS116GWX
Brand: Nexperia
SKU: 215019
Price: 0.07 USD
Availability: InStock



Category Semiconductor Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.8mm
Model	BAS116GWX
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123
Sub Type	Switching Diode
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	600mW
Diode Configuration	Single
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	3μs
Maximum Forward Current If	215mA
Maximum Peak Reverse Repetitive Voltage Vrrm	75V

Key Features

Maximum forward current of 215 mA suitable for light switching applications.
Maximum repetitive peak reverse voltage of 75 V ensures reliable operation.
Low leakage current of 3 pA minimizes power loss.
Peak reverse recovery time of 3 microseconds enhances switching performance.
Compact SOD-123 package with 2 pins ensures easy surface mounting.
Wide operating temperature range from -55°C to 150°C suitable for harsh environments.
Low forward voltage drop of 1.25 V reduces heat dissipation.
Low capacitance of 2 pF ideal for high-frequency switching.

Product Description

Nexperia BAS116GWX is a single low leakage switching diode designed for efficient and reliable switching applications. Encapsulated in a small SOD-123 surface-mounted device (SMD) plastic package, it offers excellent performance with a maximum forward current of 215 mA and a repetitive peak reverse voltage of 75 V.

The diode features a low leakage current of 3 pA which minimizes power losses, making it suitable for low-leakage current applications. With a peak reverse recovery time of 3 microseconds and low forward voltage drop of 1.25 V, it supports high switching speeds while maintaining energy efficiency.

This device operates reliably over a wide temperature range from -55°C to 150°C and boasts low capacitance of 2 pF optimized for high-frequency circuits. Its compact dimensions (2.8 mm length, 1.7 mm width, 1.3 mm height) and surface mount package allow for space-saving PCB layouts.

The BAS116GWX diode complies with the AEC-Q101 automotive standard, ensuring it meets stringent reliability requirements for automotive and industrial use. Maximum forward current of 215 mA. Peak reverse recovery time of 3 microseconds.

Maximum reverse voltage of 75 V. Low leakage current of 3 pA. Low forward voltage drop of 1.25 V. Low capacitance of 2 pF. Wide operating temperature range: -55°C to 150°C. Compact SOD-123 surface mount package. AEC-Q101 automotive qualified.

Dimensions: 2.8 mm x 1.7 mm x 1.3 mm.

This diode is ideal for industrial, automotive, telecommunications, and consumer electronic switching applications requiring low leakage currents and high reliability. Its compact form factor supports efficient PCB designs.
