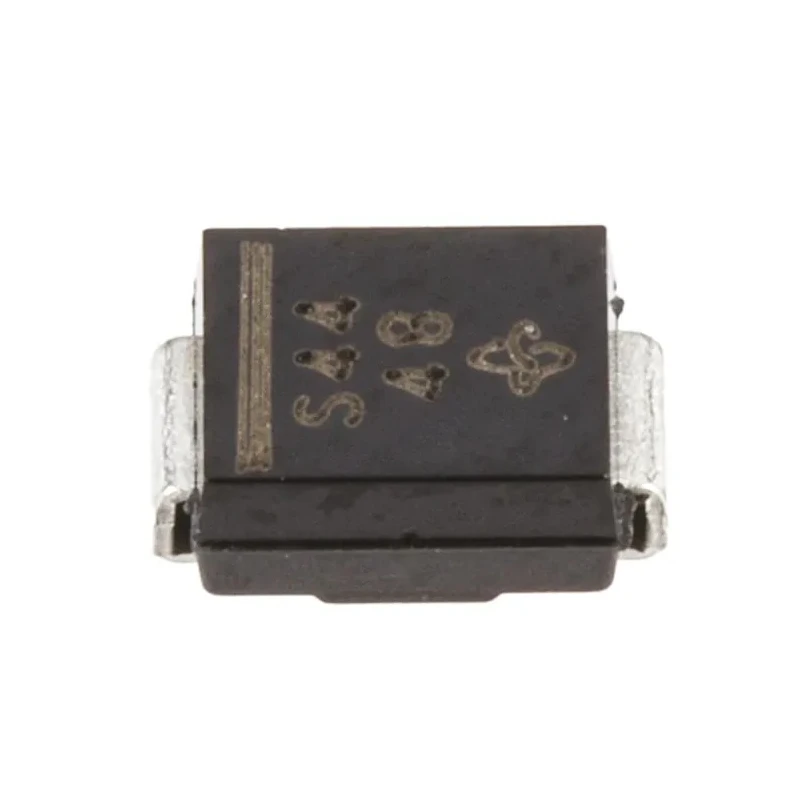

Vishay 40 V 4 A Surface Mount Schottky Diode DO-214AA SSB44-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SSB44-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SSB44 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 490mV |
| Peak Reverse Recovery Time trr | 10ns |
Key Features
- This diode is a high performance Schottky rectifier designed for low forward voltage drop.
- Equipped with a 2-pin DO-214AA package suitable for surface mounting.
- Features ultra-fast switching with a peak reverse recovery time of 10 ns.
- Operates reliably in temperatures ranging from -65°C to 150°C maximum.
- Offers a maximum continuous forward current of 4 A and peak non-repetitive surge current of 100 A.
- Compact form factor with length of 4.7 mm and width of 3.8 mm.
- Ideal for applications requiring efficient power rectification with low power loss.
- Standard forward voltage of 490 mV and peak reverse current of 400 µA.
Product Description
Vishay SSB44-E3/52T is a surface mount Schottky diode designed to provide high efficiency in power rectification and switching applications. Rated for 40 V peak reverse repetitive voltage and a 4 A continuous forward current, this device offers low forward voltage drop, enhancing performance and reducing energy loss.
The diode comes in a compact 2-pin DO-214AA package measuring 4.7 mm in length and 3.8 mm in width, enabling easy integration into modern electronic circuits and PCBs. It features a fast peak reverse recovery time of 10 ns, making it suitable for high frequency switching, power supply, and conversion applications.
It operates reliably in a wide temperature range from -65°C minimum to 150°C maximum, supporting demanding industrial and commercial environments. The device has a peak non-repetitive forward surge current rating of 100 A, supporting brief surges without degradation.
Typical electrical characteristics include a maximum forward voltage of 490 mV and low peak reverse current of 400 µA, ensuring efficient operation with minimal leakage.
Applications include power rectifiers, voltage clamping, reverse polarity protection, and switching circuits in industrial, automotive, telecommunication, and consumer electronic devices.
This diode features a surface mount DO-214AA package ensuring easy PCB assembly. It supports continuous forward current of 4 A for high power applications. Suitable for switching circuits requiring fast reverse recovery times.
Can operate in harsh thermal conditions with an operational temperature up to 150°C. Compact size and reliable Vishay semiconductor quality assure robust performance. Offers efficient low voltage drop conduction minimizing energy losses.
Complies with no automotive or specific approvals but suitable for broad industrial use. Explore more Vishay diodes and detailed specifications on EnvMart for reliable semiconductor component selection.
Explore more products in our Semiconductor Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 4 A.
This diode has a peak reverse repetitive voltage rating of 40 V.
It comes in a DO-214AA package type suitable for surface mounting.
The diode measures 4.7 mm in length and 3.8 mm in width.
The peak non-repetitive forward surge current rating is 100 A.
It features a peak reverse recovery time of 10 ns.
This diode operates reliably in temperatures ranging from -65°C to 150°C.
The maximum forward voltage drop is 490 mV.
The peak reverse current is rated at 400 µA.
It is suitable for applications such as power rectifiers, voltage clamping, reverse polarity protection, and switching circuits.
This diode has a 2-pin configuration.
This model is a Schottky rectifier, designed for low forward voltage drop and efficient power rectification.
