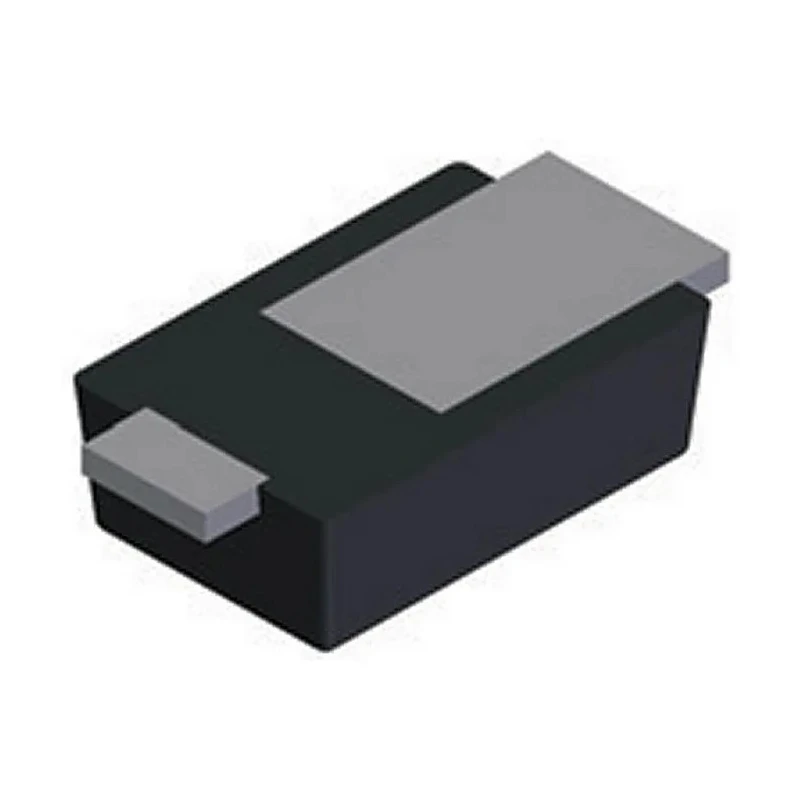

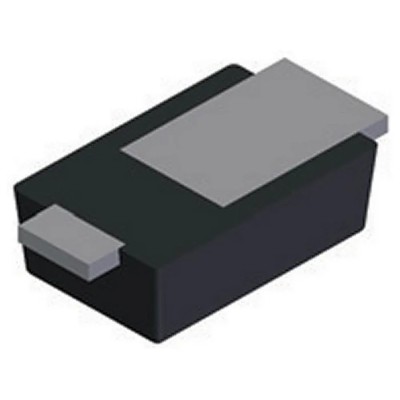

DiodesZetex 30 V 2 A Surface Mount Schottky Diode PowerDI323 PD3S230L-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.7mm |
| Length | 1.95mm |
| Model | PD3S230L-7 |
| Width | 1.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerDI323 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 450mV |
Key Features
- Offers a maximum continuous forward current of 2 A for reliable performance.
- Equipped with a peak reverse repetitive voltage of 30 V for robust operation.
- Features a low maximum forward voltage of 450 mV, improving energy efficiency.
- Supports wide operating temperature range from -65°C to 125°C for versatile applications.
- Compact PowerDI323 package ensures easy surface mounting and space-saving design.
- Delivers a peak non-repetitive forward surge current of 30 A for transient protection.
- Includes automotive standard certification AEC-Q101 for quality assurance in automotive uses.
- Constructed with 2-pin single diode configuration optimized for fast switching and rectification.
Product Description
DiodesZetex PD3S230L-7 is a surface mount Schottky diode rated for 30 volts and 2 amperes, designed for efficient power rectification in electronic devices and circuits. The diode’s PowerDI323 package provides a compact 2-pin configuration ideal for high-frequency switching and low forward voltage losses.
This diode supports a continuous forward current of 2 A and a peak surge current of 30 A, making it suitable for applications requiring robust transient handling capabilities. Its low maximum forward voltage of 450 mV enhances energy efficiency by minimizing conduction losses.
Operating reliably within a temperature range spanning from -65°C to 125°C, this diode fits a wide range of industrial, automotive, and consumer electronics environments. The product complies with the automotive standard AEC-Q101, ensuring high reliability under automotive stress conditions.
The PD3S230L-7 diode features a peak reverse repetitive voltage rating of 30 V and a typical peak reverse current of 1.5 mA, contributing to its stable switching and durability. Manufactured in China, it meets FBI standards for semiconductor quality assurance.
Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 30 V. Maximum forward voltage: 450 mV. Operating temperature range: -65°C to 125°C. Peak non-repetitive forward surge current: 30 A. Package type: PowerDI323 surface mount.
Automotive standard: AEC-Q101 certified. Diode configuration: 2-pin single Schottky diode. Manufactured in China.
This Schottky diode is well-suited for industrial electronic components, power management circuits, automotive electronics, and consumer devices requiring efficient rectification with low forward voltage drop. Suitable for high-frequency switching power supplies and protection circuits.
Explore more Schottky diodes and semiconductor products for your electronic design needs at EnvMart.
Explore more products in our Semiconductor Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
It has a peak reverse repetitive voltage rating of 30 V.
The maximum forward voltage for this diode is 450 mV.
This model operates reliably within a temperature range of -65°C to 125°C.
The peak non-repetitive forward surge current is rated at 30 A.
It utilizes a PowerDI323 package, which is designed for surface mounting.
The diode features a 2-pin single configuration optimized for fast switching.
Yes, it is certified under the automotive standard AEC-Q101.
The typical peak reverse current is 1.5 mA.
The dimensions are 1.95 mm in length, 1.3 mm in width, and 0.7 mm in height.
This diode is suitable for industrial electronic components, power management circuits, automotive electronics, and consumer devices requiring efficient rectification.
It is manufactured in China.
