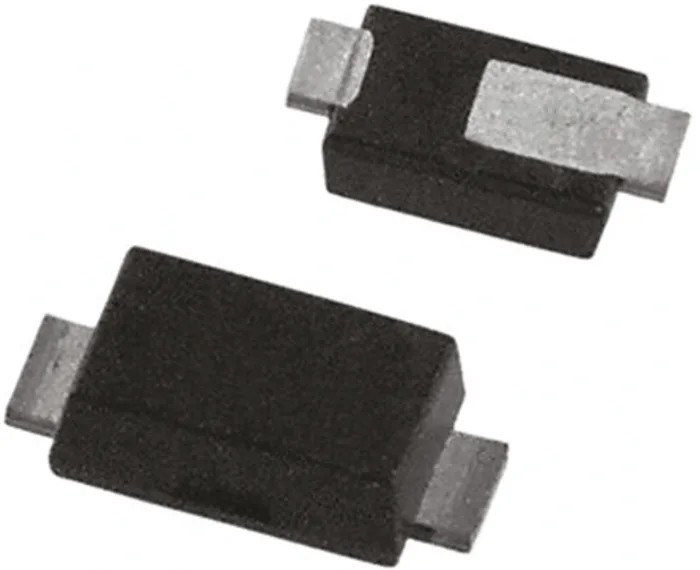

DiodesZetex 40 V 3 A Surface Mount Schottky Barrier Diode PowerDI123 Package SBRT3M40P1-7

DiodesZetex SBRT3M40P1-7 is a Schottky Barrier Diode designed for power applications requiring high efficiency and reliability. This surface mount diode in a PowerDI123 package supports a maximum continuous forward current of 3 A and withstands peak reverse voltages up to 40 V. Its low forward voltage drop of 530 mV minimizes power loss during operation.

The diode operates over a wide temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and electronic power circuits that demand durability and thermal stability. The 2-pin configuration and compact package size of 1.93 mm by 3 mm by 1 mm facilitate easy integration into surface mount PCB assemblies.

Certified to automotive standard AEC-Q101, this Schottky diode is ideal for automotive electronics requiring high reliability. Its super barrier rectifier (SBR) technology combines the thermal stability of PN epitaxial diodes with the low voltage drop efficiency of Schottky diodes. This enables improved efficiency and reduced heat generation in DC power supplies, power factor correction, and general rectification tasks.

The device also features a 70 A peak non-repetitive forward surge current rating, ensuring robust performance under transient surge conditions. With a peak reverse current of just 15 mA, the diode offers low leakage current vital for sensitive electronic designs.

Applications include use in industrial power supplies, automotive electronics, telecommunications equipment, and consumer electronic devices. Its small footprint and high performance make it well suited for modern compact and efficient power conversion systems.

This diode provides a low forward voltage drop of 530 mV for improved efficiency. It operates reliably over a wide temperature range from -65°C to 150°C. The diode has a peak non-repetitive forward surge current of 70 A ensuring robustness under surge conditions.

The compact dimensions measure 1.93 mm in length, 3 mm in width, and 1 mm in height. This device meets automotive grade standard AEC-Q101, ensuring suitability for automotive applications. The diode is a super barrier rectifier (SBR) type, combining the benefits of Schottky and PN epitaxial diodes.

It uses a 2-pin configuration and is suitable for surface mounting on PCBs. Peak reverse current is low at 15 mA, aiding in efficiency and minimal leakage. Explore broad categories of Schottky and barrier diodes at EnvMart for reliable semiconductor components tailored to industrial, automotive, and electronic manufacturing needs.
