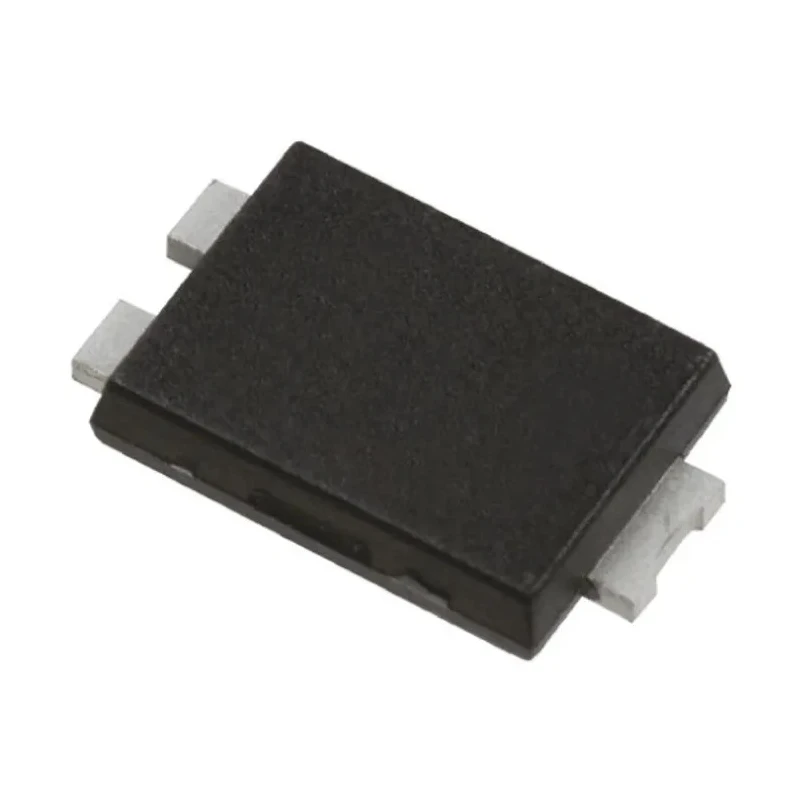

DiodesZetex Surface Mount Schottky Diode 60 V 5 A Package Single Configuration 3-Pin PowerDI5

DiodesZetex PowerDI5 is a high-performance Schottky diode designed for surface mount applications in electronic circuits requiring fast switching and low forward voltage drop. This model features a PowerDI5 package and a 3-pin construction that simplifies board mounting and integration.

With a maximum continuous forward current of 5 amperes and a peak reverse repetitive voltage rating of 60 volts, this Schottky diode is suitable for power rectification and switching tasks in industrial and automotive electronics. The device’s low forward voltage of 770 mV ensures energy-efficient operation by reducing power dissipation.

Operating reliably across a wide temperature range from -65°C to 150°C, the diode can withstand demanding environmental conditions, making it appropriate for automotive and industrial settings certified to meet the AEC-Q101 standard. It also supports high surge currents up to 150 amperes for handling inrush and transient currents without damage.

Its compact dimensions (5.45 mm width, 4.05 mm length, 1.15 mm height) allow for space-saving designs on printed circuit boards. This Schottky diode is ideal for use in power supply circuits, voltage clamping, reverse polarity protection, and other semiconductor applications where fast recovery and low loss rectification are vital.

Manufactured in China with strict quality controls, the DiodesZetex PowerDI5 series ensures consistent performance and durability. This product is commonly found in industrial automation, automotive electronics, and consumer electronics requiring reliable and efficient diode solutions.

Surface mount package type with PowerDI5 housing ensures compact integration. Maximum continuous forward current rating of 5 amps for efficient power handling. Peak reverse repetitive voltage capability of 60 volts for reliable operation.

Low forward voltage drop of 770 mV minimizes power losses. Wide operating temperature range from -65°C to 150°C for varied environments. Peak non-repetitive forward surge current of 150 amps supports transient events. 3-pin Schottky diode configuration designed for fast switching and low forward voltage.

Certified to automotive standard AEC-Q101, assuring quality and reliability. Compact dimensions: 5.45 mm width, 4.05 mm length, and 1.15 mm height. Manufactured in China ensuring consistent production standards.

Explore more semiconductor diode solutions and Schottky rectifiers in the EnvMart category for electronic components tailored to power and signal management. Reliable diode components like the DiodesZetex PowerDI5 ensure optimal circuit protection and efficiency in diverse industrial and automotive applications.
