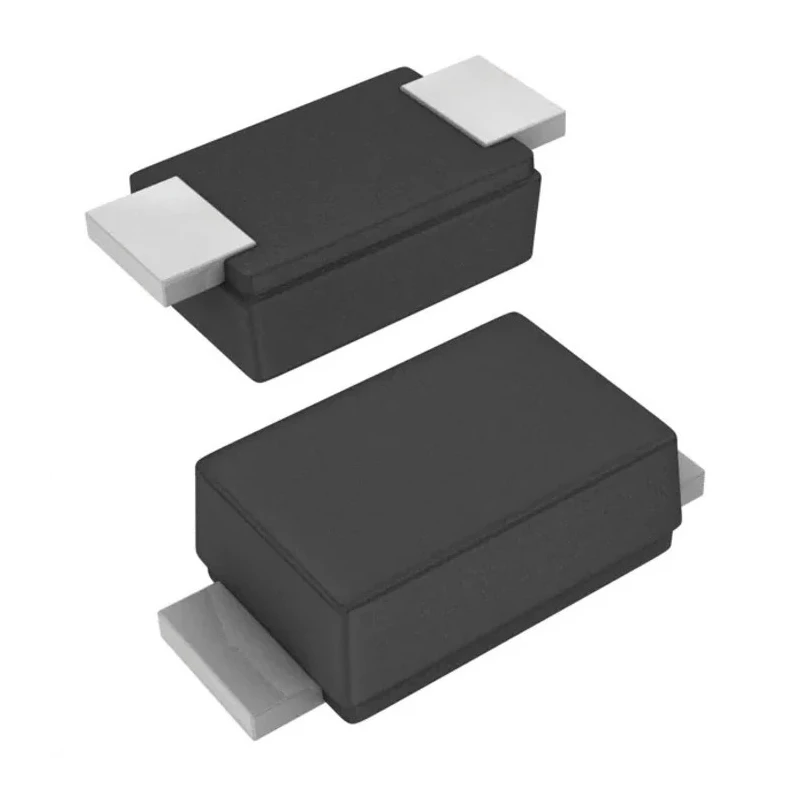

Vishay 2.2V Zener Diode Single Surface Mount DO-219AB 0.8W BZD27C15P-E3-08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | BZD27C15P-E3-08 |
| Mount Type | Surface |
| Series | BZD27C |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 0.8W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 2.2V |
| Zener Type | Silicon Planar |
| Maximum Zener Impedance | 10Ω |
Key Features
- Single element silicon planar Zener diode suitable for voltage regulation and stabilization.
- Nominal Zener voltage of 2.2V with a maximum power dissipation of 0.8W.
- Standard DO-219AB surface-mount package with 2 pins for easy integration into circuit boards.
- Wide operating junction temperature from -65°C up to 175°C for robust use.
- High ESD capability according to AEC-Q101 standards, ideal for automotive and industrial applications.
- Features low leakage current and excellent stability for reliable performance.
- RoHS approved and automotive grade component suitable for advanced electronics.
Product Description
The Vishay BZD27C15P-E3-08 is a single-element silicon planar Zener diode designed for voltage regulation and stabilization in electronic circuits. As a surface-mount component, it uses the DO-219AB package, making it ideal for integration into compact and automated PCB designs. With a nominal Zener voltage of 2.2V, this diode is suitable for systems requiring low-voltage, high-reliability protection or reference.
Offering a maximum power dissipation of 0.8W, the BZD27C15P-E3-08 provides robust performance even in demanding conditions. Its configuration, featuring 2 pins, simplifies mounting and connection. The diode meets automotive standard AEC-Q101 and holds RoHS compliance, supporting both general industrial and automotive electronics environments.
High ESD capability protects sensitive electronics against electrostatic discharge with a human body model rating over 8kV and machine model rating over 800V. Operating junction temperatures range between -65°C and 175°C, enabling this Zener diode to withstand and perform in extreme temperature settings.
With a low profile and surface-mount design, the component offers space-saving benefits and is compatible with wave and reflow soldering techniques. Its low leakage current and excellent stability ensure consistent functioning over long operational periods, while the maximum Zener impedance is rated at 10Ω.
Typical applications include voltage regulation, transient suppression, and stabilization in automotive, industrial, and commercial electronics. The device supports MSL level 1 with a maximum lead-free peak temperature of 260°C, further enhancing reliability in manufacturing processes.
For engineers and buyers, the Vishay BZD27C15P-E3-08 is a versatile, high-performance Zener diode suitable for multiple sectors - especially those prioritizing automotive-grade, surface-mount, and low-voltage components.
Single-element 2.2V Zener diode in a DO-219AB package for surface-mount applications. Especially suited to voltage regulation, stabilization, and protection circuits. High ESD capability rated by AEC-Q101 for industrial and automotive environments.
Supports extended operating temperature ranges and offers reliable, consistent performance. RoHS compliant and low profile surface-mount construction for advanced PCB designs. Explore more Vishay semiconductors and Zener Diodes in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 2.2V.
The maximum power dissipation for this model is 0.8W.
The operating temperature range for this diode is from -65°C to 175°C.
This diode uses a standard DO-219AB surface-mount package.
This diode has 2 pins for easy integration into circuit boards.
The maximum reverse leakage current is rated at 1μA.
Yes, it is RoHS compliant and meets the AEC-Q101 automotive standard.
The maximum Zener impedance is rated at 10Ω.
This diode is suitable for voltage regulation, transient suppression, and stabilization in automotive, industrial, and commercial electronics.
The height of this diode is 1.08mm and the length is 3.9mm.
The test current for this model is 50mA.
This model has a single diode configuration.
