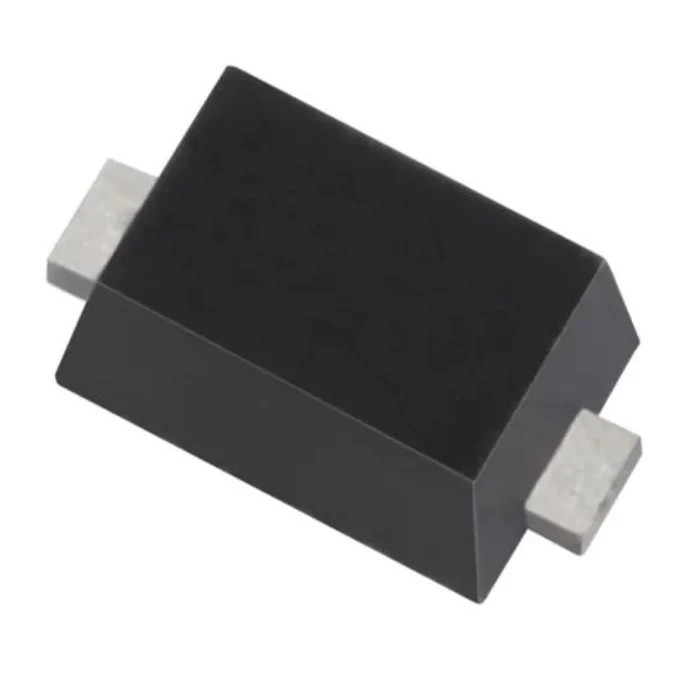

DiodesZetex Ultra Small Surface Mount Zener Diode 18V 200mW 2-Pin SOD-923 DZ9F18S92-7

Free Delivery in India | Lowest Global Shipping Charges

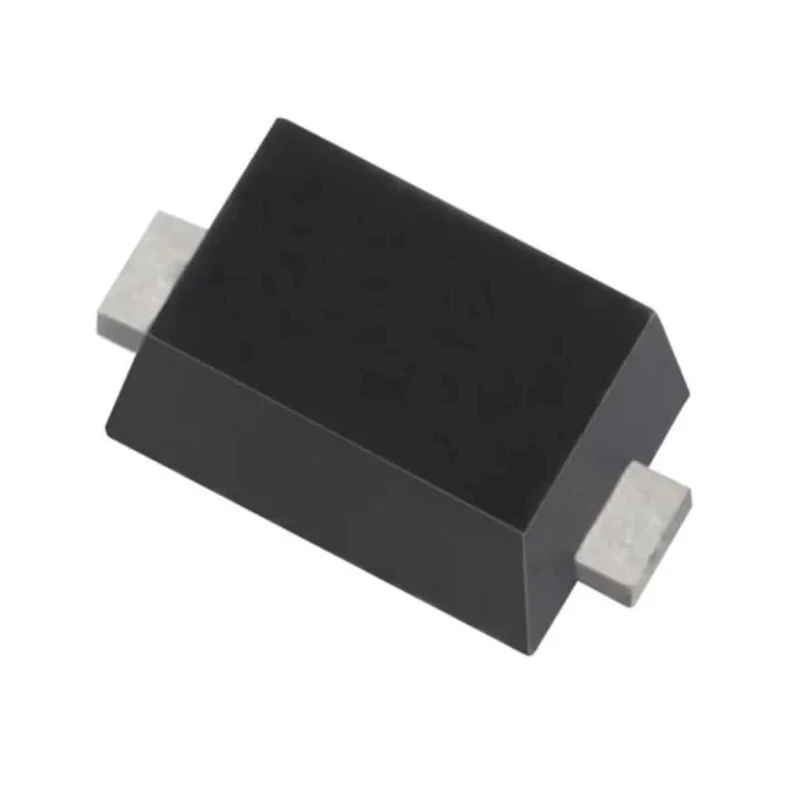

DiodesZetex Ultra Small Surface Mount Zener Diode 18V 200mW 2-Pin SOD-923 DZ9F18S92-7

Name: DiodesZetex Ultra Small Surface Mount Zener Diode 18V 200mW 2-Pin SOD-923 DZ9F18S92-7
Brand: DiodesZetex
SKU: 82403
Price: 0.04 USD
Availability: InStock



Category Zener Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.37mm
Length	0.8mm
Model	DZ9F18S92-7
Mount Type	Surface
Series	DZ9F
Maximum Operating Temperature	150°C
Package Type	SOD-923
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	200mW
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	18V
Zener Type	Ultra Small
Maximum Zener Impedance	80Ω
Typical Voltage Temperature Coefficient	16mV/°C

Key Features

Ultra-small surface mount Zener diode for compact circuit designs.
Nominal Zener voltage of 18V allows reliable voltage regulation.
Maximum power dissipation of 200mW supports robust electronic performance.
2-pin SOD-923 package optimized for efficient thermal management.
±5% voltage tolerance ensures consistent operation.
Low maximum reverse leakage current of 100nA for precision applications.
Wide operating temperature range from -65°C to 150°C.
RoHS-compliant and designed for easy terminal mounting and inspection.

Product Description

DiodesZetex DZ9F18S92-7 is an ultra-small surface mount Zener diode providing a nominal Zener voltage of 18V and a maximum power dissipation of 200mW. Configured in a 2-pin SOD-923 package, this diode is engineered for modern electronic applications where compactness and efficient thermal management are essential.

The tight manufacturing process allows a voltage tolerance of ±5%, supporting consistent and reliable operation. This Zener diode features an ion-implanted epitaxial wafer process, offering precision tolerances across the voltage range; the typical voltage temperature coefficient is 16mV/°C.

With a maximum reverse leakage current of just 100nA and maximum Zener impedance of 80Ω, this component is suitable for sensitive voltage regulation circuits, even under strict accuracy requirements. The low test current of 5mA ensures minimal load on driving circuits.

Its flat-lead, thermally efficient SOD-923 package facilitates easy surface mounting and thermal management. Terminals are exposed and highly visible, simplifying inspection during assembly and eliminating the need for X-ray analysis as required for similar DFN packages.

Application areas include voltage regulation in densely packed PCBs, protection circuits, and industrial electronics where stable voltage is necessary. The wide operating temperature range from -65°C to 150°C makes the DZ9F18S92-7 ideal for equipment exposed to extreme environments, including laboratory, manufacturing, and automotive electronic systems (though not certified to the automotive standard for safety-critical use).

Ultra-small SMD Zener diode with tight voltage tolerance. Optimized for compact, thermally efficient PCB layouts. Low leakage, robust and reliable operation for industrial, laboratory and commercial electronics. RoHS-compliant for regulatory conformity and environmental safety.

Browse more Zener Diodes and related semiconductor components in the Electronics & Electricals category at EnvMart.
