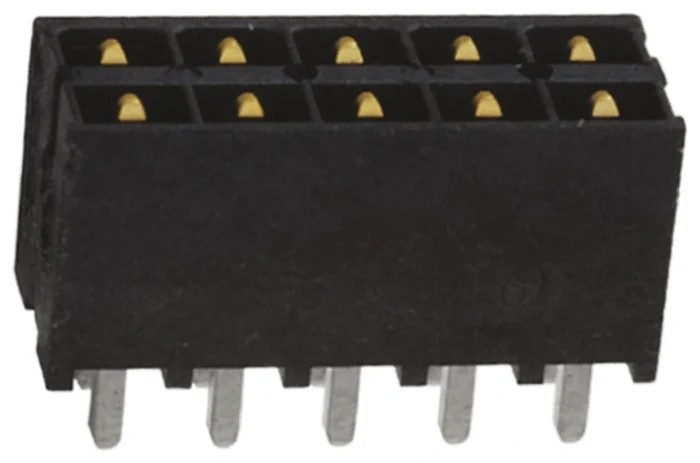

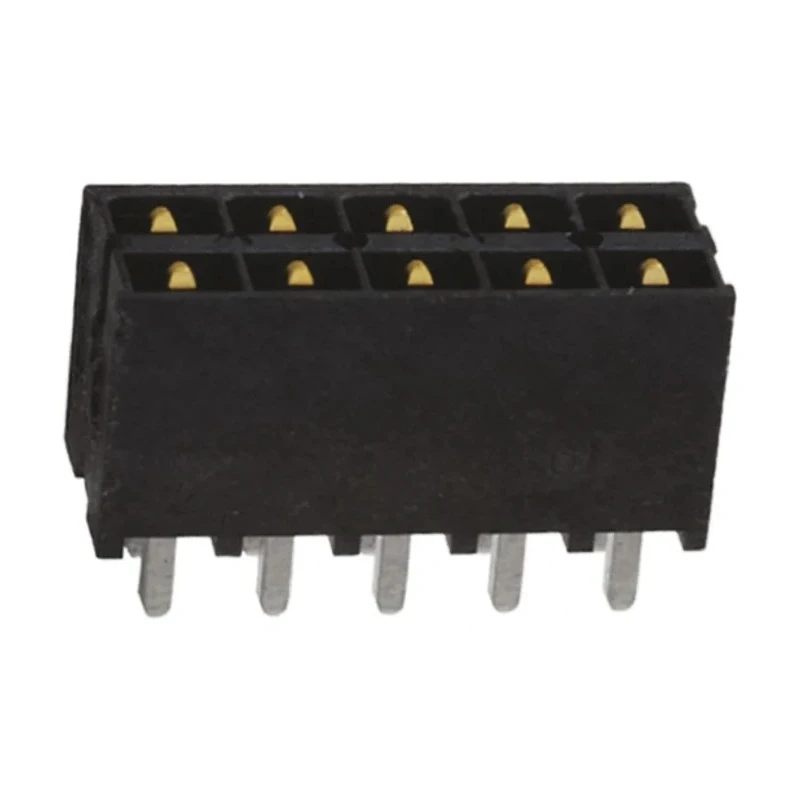

Samtec IPT1 Series Straight Through Hole Shrouded PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, 550/777V IPT1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550, 777V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 9A |
| Model | IPT1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPT1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability and high temperature resistance.
- Features phosphor bronze contacts with 0.25μm gold plating for excellent conductivity and corrosion resistance.
- Supports a current rating of 9A and voltage rating of 550 to 777V for high-power applications.
- Operates reliably within a temperature range of -55°C to 125°C.
- Termination type is solder, compatible with through-hole mount PCB assembly.
- Designed for use as board-to-board connectors with shrouded male contacts to prevent misalignment.
- Suitable for industrial electronics requiring isolated power terminals with rugged construction.
Product Description
Samtec IPT1 Series Straight Through Hole PCB Header, model IPT1, is engineered for demanding electronic applications requiring isolated power connections. This shrouded PCB Header features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, providing a reliable board-to-board connector system. The housing is made from liquid crystal polymer, a robust material resistant to high temperatures and mechanical stress, ensuring durability in harsh environments.
The contacts are manufactured from phosphor bronze with a 0.25μm thick gold plating, enhancing electrical conductivity and corrosion resistance. This connector supports up to 9 amperes current and withstands operating voltages from 550 to 777 volts, making it suitable for power electronics and industrial control systems requiring secure electrical connections.
The IPT1 header is designed for through-hole mounting and terminated by soldering, ensuring a secure mechanical and electrical bond to the PCB. Operating temperature ranges from -55°C to +125°C to accommodate varied industrial and commercial usage scenarios. The shrouded design protects contacts from bending or misalignment, enhancing connector lifespan and performance reliability.
This header series mates with the IPS1 series of shrouded PCB power sockets, facilitating versatile system configurations in electronic manufacturing and assembly processes. Durable liquid crystal polymer housing suitable for industrial environments.
High-quality gold-plated phosphor bronze contacts for optimal electrical performance. Rated for 9A current and up to 777V, supporting high voltage power connections. Wide operating temperature range from -55°C to 125°C for varied application conditions.
Shrouded male contacts minimize risk of damage during assembly and operation. Compatible with standard 2.54 mm pitch PCB layouts and through-hole mounting techniques. Ideal for industrial, manufacturing, and power distribution electronic equipment.
