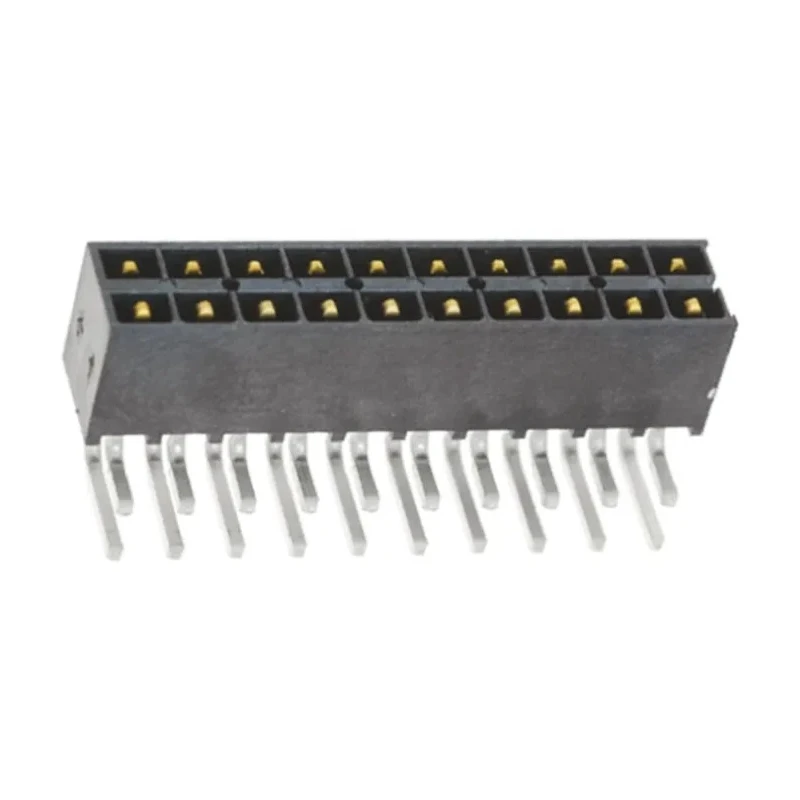

Samtec IPT1 Series Right Angle Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded IPT1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 777V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 9A |
| Model | IPT1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPT1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with Liquid Crystal Polymer housing ensuring robustness at high temperatures.
- Phosphor Bronze male contacts plated with 0.25 μm gold for reliable conductivity and corrosion resistance.
- Rated for 9A current at 20°C ambient temperature providing substantial power handling.
- Designed for through-hole mounting with right angle orientation facilitating versatile PCB layouts.
- Supports operating temperatures ranging from -55°C to 125°C, accommodating demanding industrial environments.
- Operates at a maximum voltage of 777V, suitable for isolated power applications.
- Compatible with IPS1 series shrouded PCB power sockets for integrated board-to-board connections.
Product Description
Samtec IPT1 Series Right Angle Through Hole PCB Header (Model IPT1) incorporates 20 male contacts arranged in 2 rows with a precise 2.54 mm pitch ideal for board-to-board power connection applications. Featuring shrouded housing made from Liquid Crystal Polymer, these headers provide exceptional insulation and mechanical strength for robust PCB assembly.
The contacts are made of phosphor bronze with 0.25 μm gold plating, ensuring excellent conductivity and durability in demanding industrial and electronic environments. The connector supports a current rating of 9A at ambient 20°C and a voltage rating up to 777V, making it suitable for isolated power terminal requirements.
Its right angle orientation and through-hole mounting type provide design flexibility and secure soldered attachment to printed circuit boards. The temperature tolerance from -55°C to 125°C allows usage in harsh operating conditions including industrial, manufacturing, and power distribution setups.
This product is engineered for industrial electronics, automation systems, laboratory equipment, and commercial power assemblies requiring reliable connector interfaces with excellent electrical and mechanical performance.
Liquid Crystal Polymer housing offers high temperature stability and mechanical strength. Gold plated phosphor bronze contacts enable low resistance and corrosion protection. High current and voltage ratings ensure compatibility with high power circuits.
Shrouded dual-row design improves insulation and prevents misalignment during mating. Right angle through-hole mount simplifies PCB assembly and design layout. Wide operating temperature range supports varied environmental applications.
Compatibility with IPS1 series sockets enhances system integration capabilities.
Set your electronics projects apart with the durable and precise Samtec IPT1 series PCB Header designed for high performance and longevity. Browse additional power connector solutions from Samtec and other leading brands at EnvMart for your industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 9A at an ambient temperature of 20°C, allowing for substantial power handling in various applications.
The IPT1 series can operate at a maximum voltage of 777V, making it suitable for isolated power applications.
It supports an operating temperature range from -55°C to 125°C, accommodating demanding industrial environments.
The contacts are made of phosphor bronze and are plated with 0.25 μm gold to ensure reliable conductivity and corrosion resistance.
This unit features 20 male contacts arranged in 2 rows, with a pitch of 2.54 mm.
It is designed for through-hole mounting, which facilitates secure soldered attachment to printed circuit boards.
This model has a right angle orientation, providing design flexibility for PCB layouts.
It is designed for board-to-board connections, enhancing integration capabilities with compatible sockets.
The housing is constructed from Liquid Crystal Polymer, which offers high temperature stability and mechanical strength.
It utilizes solder termination, ensuring a secure connection during assembly.
It is compatible with IPS1 series shrouded PCB power sockets for integrated board-to-board connections.
The country of origin for this product is India.
