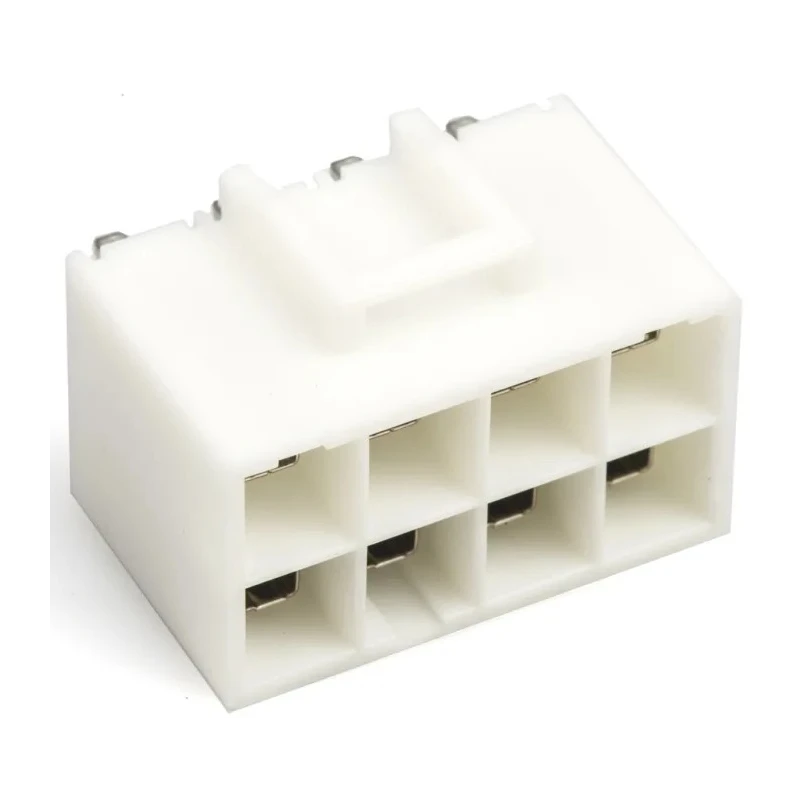

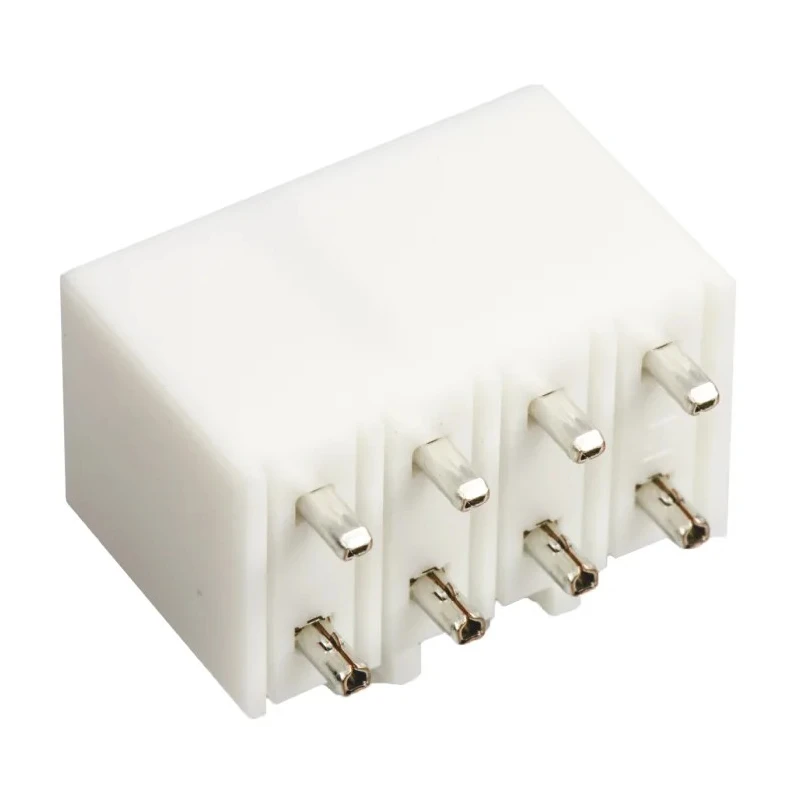

JST VL Series Straight Through Hole Shrouded PCB Header 8 Contacts 6.2 mm Pitch 2 Row B08P-VL (LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 600V |
| Brand | JST |
| Orientation | Straight |
| Current | 20A |
| Model | B08P-VL (LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | VL |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 6.2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.6mm |
| Initial contact resistance | 7mΩ max |
Key Features
- Supports operating voltages up to 600V ac/dc for high-power applications.
- Rated for a continuous current of up to 20A ensuring efficient performance.
- Constructed with durable polyamide housing providing electrical insulation and mechanical strength.
- Features copper alloy male contacts plated with tin to prevent corrosion.
- Designed for through-hole mounting facilitating secure soldered connections.
- Shrouded housing with interlocking design preventing accidental disconnections.
- Operating temperature range from -25°C to 85°C for versatility in various environments.
- Pin length of 3.6 mm compatible with standard PCB layouts.
Product Description
JST B08P-VL (LF)(SN) is a premium VL Series shrouded PCB header designed for wire-to-board applications requiring high current and voltage ratings. It features 8 male copper alloy contacts arranged in 2 rows with a 6.2 mm pitch, offering robust and reliable connections for electronic assemblies.
The housing is made from polyamide (PA 66) material rated UL94V-0, ensuring excellent heat resistance, flame retardancy, and mechanical durability. This header supports voltages of up to 600V ac/dc and continuous current up to 20A, making it suitable for demanding industrial and power electronics applications.
The contacts are plated with tin to provide corrosion resistance and maintain low contact resistance (maximum 7 milliohms). The connector is designed for through-hole mounting and includes inter-housing locks to resist accidental disconnection during operation, enhancing system security and reliability.
Its operating temperature range from -25°C to +85°C allows it to perform effectively in diverse industrial, manufacturing, and electronic environments. With a mating pin length of 3.6 mm, it is compatible with standard printed circuit boards adhering to VL series specifications.
Supports operating voltages up to 600V ac/dc for high-power applications. Rated for a continuous current of up to 20A ensuring efficient performance. Constructed with durable polyamide housing providing electrical insulation and mechanical strength.
Features copper alloy male contacts plated with tin to prevent corrosion. Designed for through-hole mounting facilitating secure soldered connections. Shrouded housing with interlocking design preventing accidental disconnections.
Operating temperature range from -25°C to 85°C for versatility in various environments. Pin length of 3.6 mm compatible with standard PCB layouts. This JST VL series PCB header is ideal for industrial, electronic manufacturing, power supply, and automation systems requiring dependable high-current wire-to-board connectors.
Explore comprehensive JST VL Series PCB Headers and related electronic components on EnvMart for your reliable connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports operating voltages up to 600V ac/dc, making it suitable for high-power applications.
This model is rated for a continuous current of up to 20A, ensuring efficient performance in various applications.
The housing is made from polyamide, while the contacts are copper alloy plated with tin to prevent corrosion.
It features a pitch of 6.2 mm and has 8 male contacts arranged in 2 rows.
It is designed for through-hole mounting, facilitating secure soldered connections.
The operating temperature range is from -25°C to +85°C, allowing it to function in diverse environments.
The mating pin length is 3.6 mm, which is compatible with standard PCB layouts.
Yes, it features a shrouded housing with an interlocking design to prevent accidental disconnections during operation.
The initial contact resistance is a maximum of 7 milliohms, ensuring low contact resistance.
The country of origin for this PCB header is Japan.
It uses a wire-to-board connector system, suitable for various electronic applications.
The orientation of this model is straight, which is common for PCB headers.
