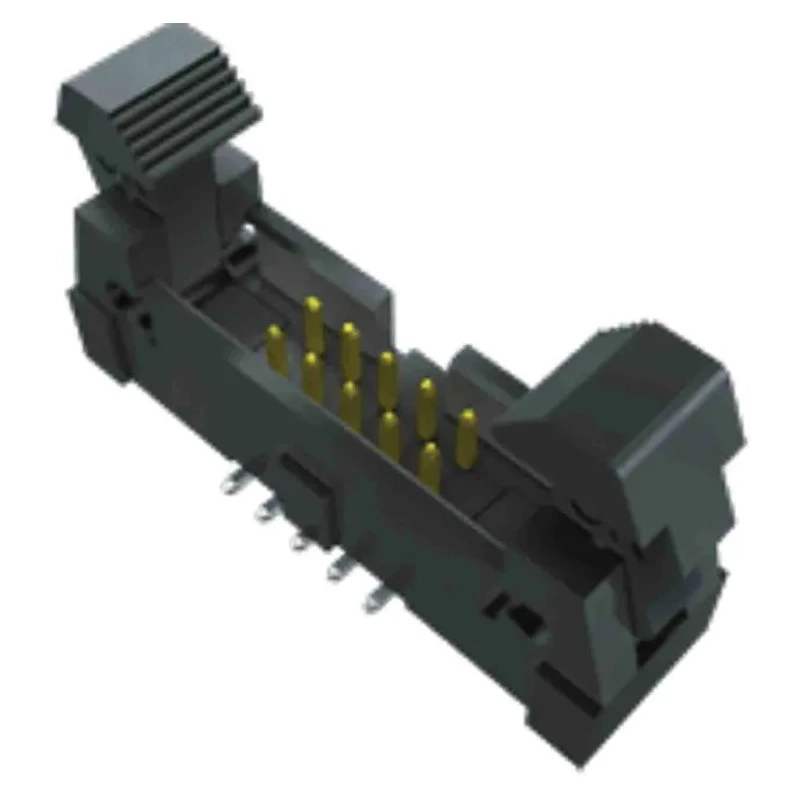

Samtec 20-Way Shrouded IDC PCB Header Male for Surface Mount, 2 Row, 1.27mm Pitch EHF-110-01-L-D-SM-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec 20-Way Shrouded IDC PCB Header Male for Surface Mount, 2 Row, 1.27mm Pitch EHF-110-01-L-D-SM-P-TR

Name: Samtec 20-Way Shrouded IDC PCB Header Male for Surface Mount, 2 Row, 1.27mm Pitch EHF-110-01-L-D-SM-P-TR
Brand: Samtec
SKU: 401265
Price: 7.01 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Operating Temperature Range	-55°C to +125°C
Model	EHF-110-01-L-D-SM-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHF
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin, Gold
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded
Insulator Material	black liquid crystal polymer
SMT lead coplanarity	0.10mm max

Key Features

The connector features a shrouded design for protection and polarization notch for secure connection.
Constructed with phosphor bronze contacts plated with tin and gold for corrosion resistance.
The black liquid crystal polymer housing ensures durability under thermal stress.
Supports operating temperature range from -55°C up to 125°C, suitable for diverse industrial environments.
Termination is via IDC for reliable, quick connections to ribbon cables.
Designed with straight orientation and SMT lead coplanarity of 0.10mm max for precise PCB assembly.
Ideal for electronic, power, and industrial connector applications requiring high reliability and temperature resilience.

Product Description

Samtec EHF-110-01-L-D-SM-P-TR is a high-quality, shrouded IDC ejector header designed for surface mounting applications. Featuring 20 contacts arranged in 2 rows with 1.27mm pitch, this male PCB header is engineered for reliable electronic connections in power and industrial systems. Its black liquid crystal polymer housing provides excellent mechanical stability and thermal resistance across -55°C to +125°C, ensuring dependable performance in harsh conditions.

The contacts are made of phosphor bronze and plated with tin and gold, which offers superior conductivity and corrosion resistance. The polarized notch prevents incorrect mating, and optional caps can be used to secure cables in place, enhancing connection durability. The IDC termination allows fast and consistent cable assembly for mass production processes.

This PCB header suits applications in electronics manufacturing, power connectors, and industrial automation systems where precision, durability, and thermal endurance are critical. Its straight orientation and SMT coplanarity of 0.10mm max facilitate easy surface mounting onto printed circuit boards with fine pitch requirements.

The connector features a shrouded design for protection and polarization notch for secure connection. Constructed with phosphor bronze contacts plated with tin and gold for corrosion resistance. The black liquid crystal polymer housing ensures durability under thermal stress.

Supports operating temperature range from -55°C up to 125°C, suitable for diverse industrial environments. Termination is via IDC for reliable, quick connections to ribbon cables. Designed with straight orientation and SMT lead coplanarity of 0.10mm max for precise PCB assembly.

Ideal for electronic, power, and industrial connector applications requiring high reliability and temperature resilience. Samtec products are widely used in electronics and power connector industries. Explore more in the PCB Headers category on EnvMart to find compatible components.
