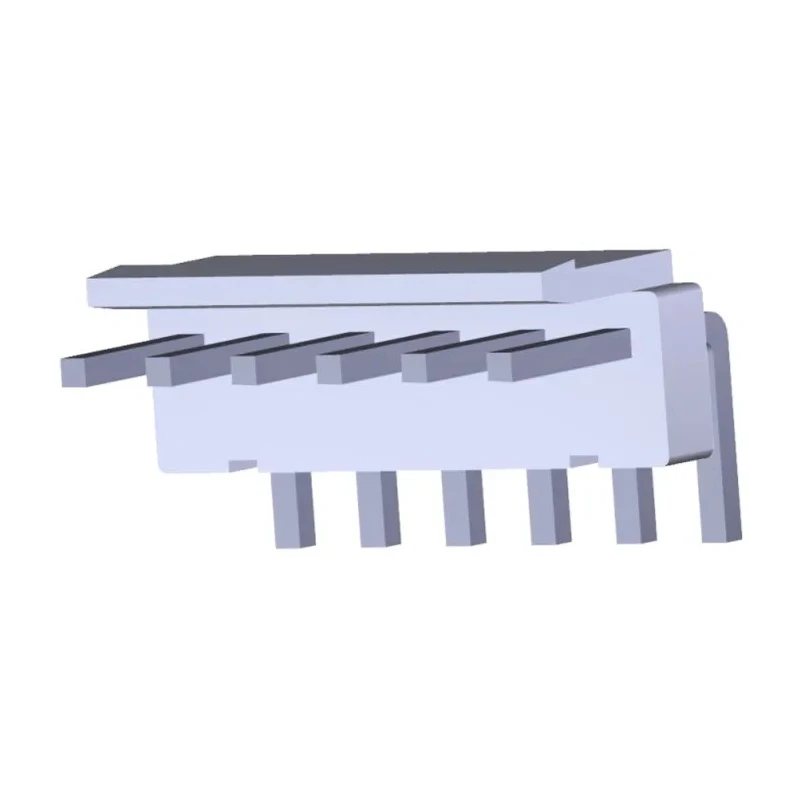

TE Connectivity Economy Power Series Right Angle Through Hole PCB Header, 3 Contacts, 3.96 mm Pitch, 1 Row, Shrouded 647676-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7.5A |
| Model | 647676-3 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Economy Power |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
| Mating Pin Length | 8.6mm |
Key Features
- Features a right angle orientation and one row for easy PCB integration.
- Constructed with a nylon housing and brass contacts plated with tin for durability.
- Supports a current rating of 7.5A and a voltage rating of 250V.
- Includes a positive audible latching mechanism for secure mating connections.
- Compatible with solder termination and through hole mount type.
- Designed to operate reliably in temperatures ranging from -25°C to 105°C.
- Tail pin length is 3.6 mm and mating pin length is 8.6 mm.
- Suitable for applications including industrial machinery, HVAC, lighting, commercial equipment, and household appliances.
Product Description
TE Connectivity 647676-3 Economy Power Series Right Angle Through Hole PCB Header offers reliable wire-to-board connections with a 3.96 mm pitch and a single row of 3 male contacts. The shrouded design provides extra protection and stable mating with the corresponding receptacle connector. Its right angle orientation facilitates efficient PCB layouts in various electronic assemblies.
Constructed with a durable nylon housing and brass contacts plated with tin, this PCB header is built for longevity and dependable electrical performance. Rated for currents up to 7.5A and voltages up to 250V AC, it handles power applications across a variety of industries.
The connector features a positive audible latching mechanism to ensure a secure and precise connection, giving audible feedback upon mating completion. It is designed for through hole mounting and solder termination, providing robust mechanical and electrical stability on the PCB.
Operating temperature range from -25°C to 105°C makes it suitable for diverse environmental conditions. The 3.6 mm tail pin length and 8.6 mm mating pin length support standardized PCB assembly processes. The product is manufactured in China under quality standards expected from TE Connectivity.
This product is widely used in industrial machinery, commercial lighting, HVAC systems, vending machines, and household appliances where reliable power connections are critical. Its economy power series design balances cost efficiency with performance in power circuit applications.
Features a right angle orientation and single row configuration for compact PCB design. Shrouded and stackable design with positive latching for secure connections. Rated to carry currents of up to 7.5A and voltages up to 250V AC.
Made with nylon housing and brass contacts plated with tin for durability. Suitable for industrial, commercial, HVAC, and household applications. Operating temperature from -25°C to 105°C for versatile environments. Through hole mount and solder termination ensure board stability.
Manufactured in China, meeting industry quality standards. Positive audible latching provides secure mating feedback.
Explore our Electronics & Electricals category at EnvMart for more premium PCB Headers and connectors from leading brands like TE Connectivity, designed for industrial and commercial power connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is 250V.
It supports a current rating of 7.5A.
The housing is made of nylon, while the contacts are brass plated with tin.
The pitch size is 3.96 mm.
It operates reliably in temperatures ranging from -25°C to 105°C.
This model features 3 male contacts.
It is designed for through hole mounting and solder termination.
Yes, it includes a positive audible latching mechanism for secure mating connections.
The tail pin length is 3.6 mm.
It is suitable for applications including industrial machinery, HVAC, lighting, commercial equipment, and household appliances.
The design orientation is right angle, which facilitates efficient PCB layouts.
This product is manufactured in China.
