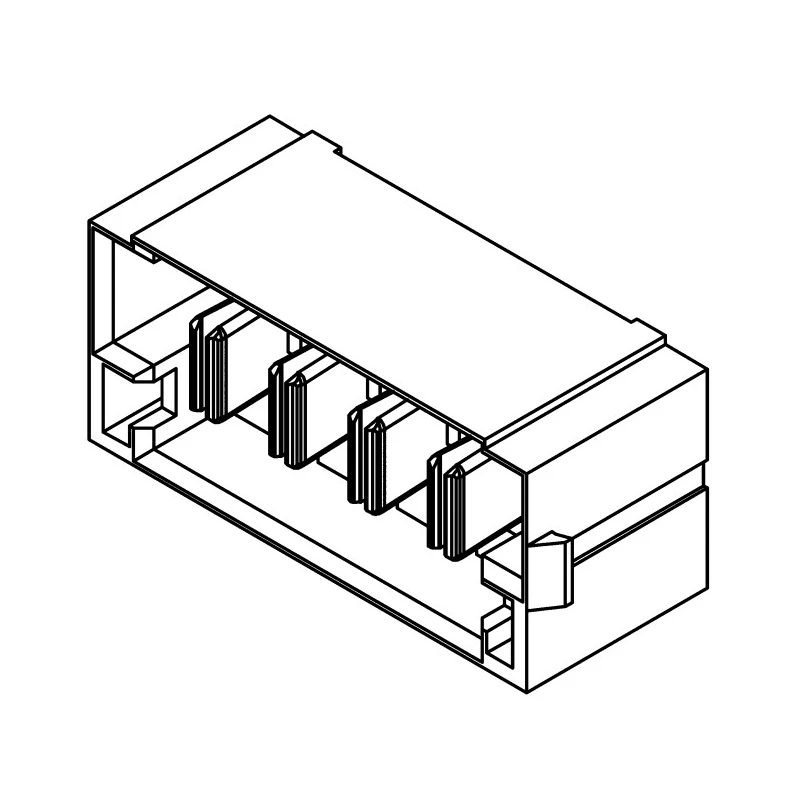

Samtec PCB Header, MPT Series Straight Through Hole, 2 Contacts, 5 mm Pitch, 1 Row, Shrouded, 848V, 41.7A MPT-02-6.30-01-L-V
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 848V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 41.7A |
| Temperature range | -55 → 125 °C |
| Model | MPT-02-6.30-01-L-V |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | MPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| MPT-xx-6.30-01-L-V | Height 6.3 mm, Vertical |
| MPT-xx-01-01-L-RA-SD | Right Angle with Screw Down holes |
Key Features
- Supports high current of 41.7A for reliable power delivery.
- Constructed with a liquid crystal polymer housing for durability and insulation.
- Features 0.25 μm gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.
- Operates effectively in temperatures from -55°C to 125°C.
- Designed for use with 1 row of contacts and through-hole mounting on a 1.6 mm PCB.
- Includes solder termination for secure PCB connection.
- Black LCP insulator enhances mechanical and thermal stability.
- Ideal for industrial, power electronics, and board-to-board connector applications.
Product Description
Samtec MPT-02-6.30-01-L-V is a premium PCB header from the MPT Series designed for power and signal board-to-board connection. This component features a straight, shrouded design with two male contacts arranged in a single row, spaced at 5 mm pitch, suitable for through-hole mounting. It offers a high current rating of 41.7A and voltage rating up to 848V, making it ideal for robust electronic applications requiring reliable power transmission and connectivity.
The housing is molded from liquid crystal polymer (LCP) known for superior thermal stability and mechanical strength, while the contacts are crafted from copper alloy with a thin 0.25 μm gold plating on contact areas and matte tin plating on PCB tails to ensure longevity and corrosion resistance. The connector operates reliably within a temperature range from -55°C up to 125°C, accommodating harsh industrial environments.
The MPT header supports PCBs with a typical thickness of 1.6 mm and is dimensioned vertically with a 6.3 mm stack height. Its solder termination ensures a firm electrical and mechanical bond to the PCB, facilitating manufacturing efficiency. This product is commonly used in industrial electronics manufacturing, power distribution boards, automation equipment, and other high-demand electrical systems.
High current capacity of 41.7A suitable for power applications. Robust shrouded connector design prevents misalignment and damage. Housing made from durable Liquid Crystal Polymer for insulating and heat resistance. Gold plated copper alloy contacts provide excellent conduction and corrosion resistance.
Wide operating temperature range from -55°C to 125°C for industrial reliability. Through-hole mounting supports strong mechanical fixation on the PCB. Solder termination type compatible with automated PCB assembly. Voltage rating ensures operational safety up to 848V.
Compatible with 1.6 mm thick PCBs, supporting various industrial applications.
Samtec MPT Series PCB Headers are engineered for demanding electronic equipment and assemblies requiring high power and durability. This model, MPT-02-6.30-01-L-V, is particularly suited for applications in automation, manufacturing systems, power supply modules, and industrial electronics. Browse our extensive catalog to find more connectors and accessories for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 41.7A, making it suitable for high power applications.
The voltage rating of the MPT-02-6.30-01-L-V is 848V, ensuring operational safety in various applications.
It operates effectively within a temperature range of -55°C to 125°C, accommodating harsh industrial environments.
This unit supports through-hole mounting, which provides strong mechanical fixation on the PCB.
The housing is made from liquid crystal polymer (LCP), while the contacts are crafted from copper alloy with gold plating.
This model features 2 male contacts arranged in a single row.
The contact pitch for this PCB header is 5 mm, which is standard for many applications.
It utilizes a solder termination type, ensuring a secure connection to the PCB.
The height of this model is 6.3 mm, designed for vertical applications.
This series is engineered for demanding electronic equipment and assemblies requiring high power and durability, suitable for industrial, power electronics, and automation applications.
The MPT-02-6.30-01-L-V is a shrouded connector, which helps prevent misalignment and damage during use.
The country of origin for the MPT-02-6.30-01-L-V is India.
