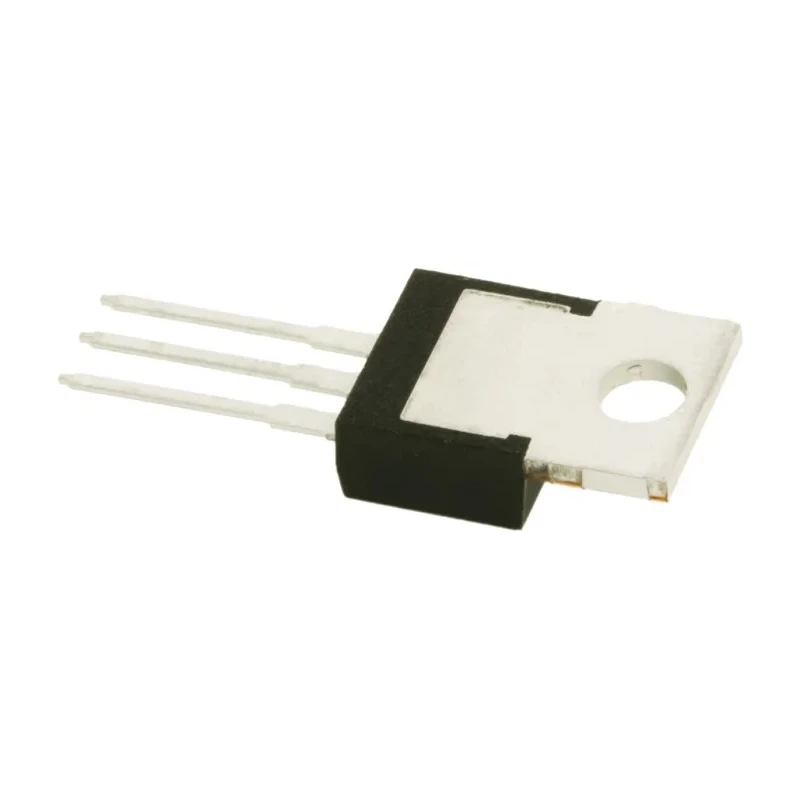

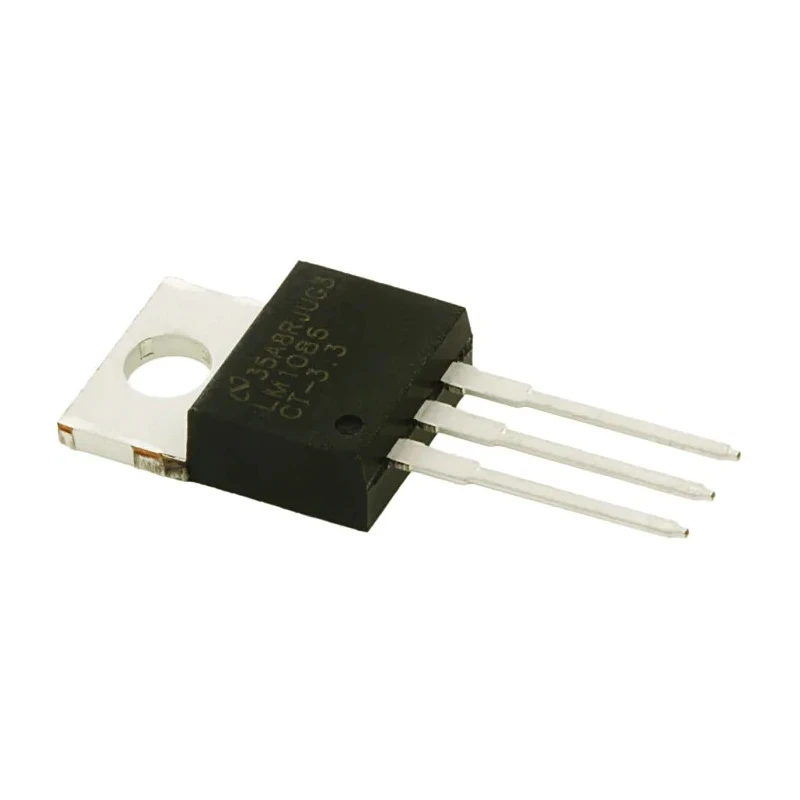

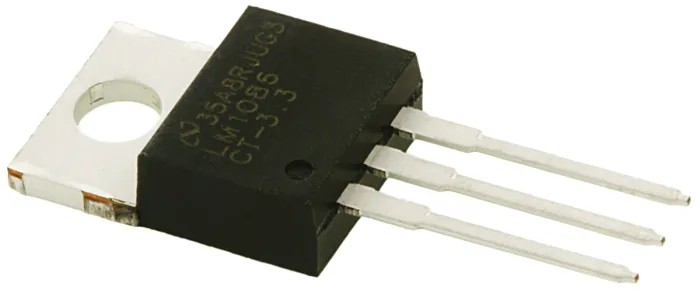

Texas Instruments Voltage Regulator LM1086CT-3.3/NOPB, LDO Linear, 3-Pin TO-220, 30V Max Input, 1.5A Output LM1086CT-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM1086CT-3.3/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM1086 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- Offers low dropout voltage suitable for a variety of power management applications.
- Features current limiting and thermal protection to enhance reliability.
- Operates with a quiescent current of 5mA for efficient power usage.
- Designed for through-hole mounting with a compact TO-220 package size.
- Maximum operating temperature up to 125°C to ensure stable performance.
- Positive polarity voltage regulator ideal for stable voltage supply.
- Pin count is 3, simplifying integration in electronic circuits.
- Supports input voltage range from 2.6V to 30V for versatile applications.
Product Description
Texas Instruments LM1086CT-3.3/NOPB is a robust low dropout (LDO) linear voltage regulator supplied in a 3-pin TO-220 through-hole package. This regulator is designed to provide a regulated output voltage with high reliability for power management in electronic devices.
Ideal for applications requiring efficient voltage regulation with low dropout voltage, it supports a maximum input voltage of 30V and delivers a reliable output current of up to 1.5A. The positive polarity design makes it suitable for powering a wide range of circuits.
The device includes built-in current limiting and thermal shutdown features, protecting the circuit from damage under adverse conditions. With a low quiescent current of 5mA, it ensures efficient power consumption, reducing overall system power requirements.
The LM1086CT-3.3/NOPB regulator's compact TO-220 package measures 10.16mm in length, 8.89mm in height, and 4.7mm in width, making it suitable for space-conscious PCB layouts. Its maximum operating temperature of 125°C ensures stable operation in demanding industrial and commercial environments.
This voltage regulator is ideal for various industrial, consumer electronics, and laboratory applications where precise voltage control and low noise are critical. It is particularly well suited for embedded systems, telecommunications equipment, and power supply modules.
Low dropout linear voltage regulator with 1.5A current capability. Thermal overload and current limiting protection. Low quiescent current of 5mA for efficient power usage. Compact 3-pin TO-220 package for through-hole mounting.
Maximum input voltage of 30V and operating temperature up to 125°C. Supports input voltage range from 2.6V ensuring flexibility. High power supply rejection ratio and excellent line regulation. Reliable and robust design for industrial and commercial use.
Explore more Voltage Regulators from Texas Instruments and other power management ICs available on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 30V.
It can deliver a reliable output current of up to 1.5A.
The quiescent current for this unit is 5mA, ensuring efficient power usage.
The compact TO-220 package measures 10.16mm in length, 8.89mm in height, and 4.7mm in width.
The maximum operating temperature is up to 125°C.
This model is designed for through-hole mounting.
It includes built-in current limiting and thermal shutdown features to protect the circuit from damage under adverse conditions.
The minimum input voltage supported by this regulator is 2.6V.
It is ideal for various industrial, consumer electronics, and laboratory applications where precise voltage control is critical.
This voltage regulator has a pin count of 3, simplifying integration in electronic circuits.
It belongs to the LM1086 series of voltage regulators.
This model features a positive polarity design.
