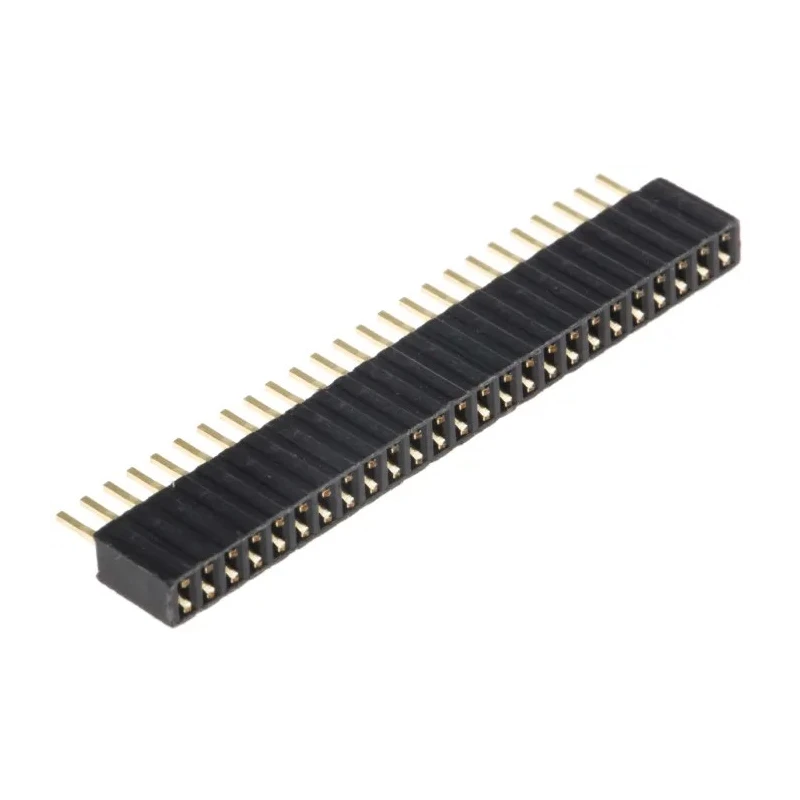

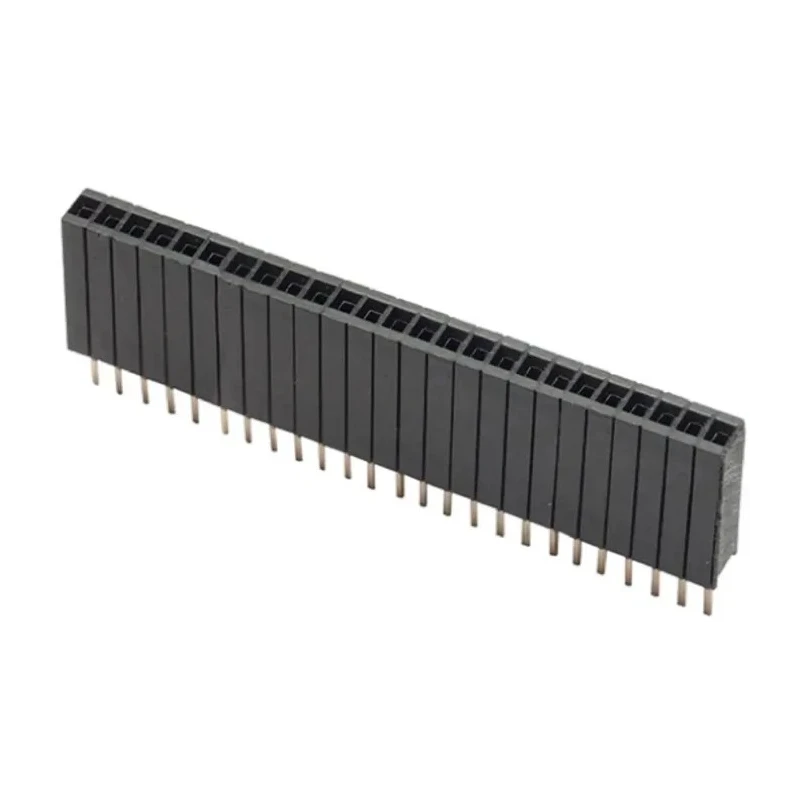

HARWIN M52 Series Straight Through Hole PCB Socket, 25-Contact, Single Row, 1.27 mm Pitch, Solder, Nylon Housing M52-5002545
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M52-5002545 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M52 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Straight through hole PCB socket with durable nylon housing.
- Provides 25 contacts in a single row configuration for reliable board-to-board connections.
- Features a 1.27 mm pitch for compact applications.
- Solder termination ensures secure and stable electrical connectivity.
- Rated for 12A current and 500V voltage for robust performance.
- Gold plated bronze contacts offer corrosion resistance and long service life.
- Supports female contact gender, suitable for mating with pin header counterparts.
- Wide operating temperature range from -40°C to 105°C.
Product Description
HARWIN M52-5002545 PCB Socket is a straight, through-hole connector designed for professional electronic assemblies and prototyping. Featuring 25 contacts arranged in a single row with a 1.27 mm pitch, this socket provides dense connectivity while maintaining high reliability. Its solder termination allows secure mounting onto PCBs, making it suitable for board-to-board connections.
Constructed from durable nylon housing, the socket ensures excellent electrical insulation and mechanical strength. The contacts are made from bronze and plated with gold, offering low contact resistance, enhanced conductivity, and corrosion protection. A current rating of 12A and voltage rating of 500V enable usage across a wide range of applications including industrial electronics, instrumentation, and automation controls.
This single row socket strip is oriented straight for easy assembly and is designed for female contact mating. The connector system is board-to-board and is compatible with Harwin M52 and related pin headers. Its wide operating temperature range from -40°C to 105°C allows dependable performance under varying environmental conditions.
Straight through hole PCB socket providing 25 contacts in one row for compact and robust connections. Features a 1.27 mm pitch to facilitate dense circuit layouts. Solder termination secures the socket to the PCB, ensuring stable electrical contact.
Nylon housing delivers high mechanical strength and electrical insulation. Gold-plated bronze contacts enhance conductivity and longevity. Rated for 12A and 500V, suitable for demanding applications. Female contact gender, compatible with pin headers for board-to-board connections.
Operational temperature range of -40°C to 105°C for industrial versatility. Ideal for electronic device manufacturing, prototype boards, and industrial control systems.
Applications include PCBs for consumer electronics, measurement equipment, industrial controls, and laboratory devices. The Harwin M52 Series is recognized for quality and reliability in board connectivity solutions.
