HARWIN 10 Contact Straight Through Hole Pin Header, 2 mm Pitch, 2 Row, Unshrouded M22-2020505

Free Delivery in India | Lowest Global Shipping Charges

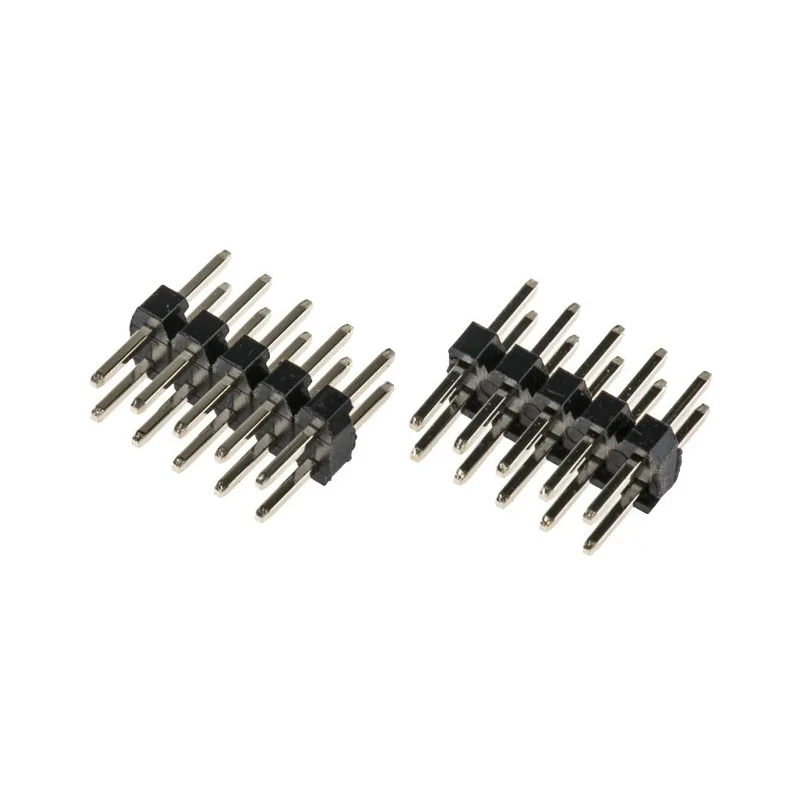

HARWIN 10 Contact Straight Through Hole Pin Header, 2 mm Pitch, 2 Row, Unshrouded M22-2020505

Name: HARWIN 10 Contact Straight Through Hole Pin Header, 2 mm Pitch, 2 Row, Unshrouded M22-2020505
Brand: HARWIN
SKU: 210652
Price: 0.59 USD
Availability: InStock



Category PCB Pin Header Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Orientation	Straight
Current	1A
Model	M22-2020505
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	M22
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.4mm
Mating Pin Length	3.5mm

Key Features

Constructed with phosphor bronze contacts featuring gold plating for reliable conductivity.
High temperature nylon housing supports reflow soldering processes.
Supports a maximum current of 1A per contact.
Tail pin length is 3.4 mm, with a mating pin length of 3.5 mm for secure connections.
Operating temperature range from -40°C to 105°C ensures durability in diverse environments.
Versatile board-to-board connector system for embedded PCs and large electronic systems.
The connector is straight-oriented and unshrouded for ease of connection and customization.

Product Description

HARWIN M22-2020505 is a high-quality straight through hole pin header featuring 10 contacts arranged in 2 rows with a 2 mm pitch. The unshrouded male connector is designed for through hole mounting on printed circuit boards, offering a reliable board-to-board connection solution.

The connector housing is made from durable high temperature nylon thermoplastic, enabling it to withstand reflow soldering during PCB assembly. The phosphor bronze contacts are gold plated to ensure excellent electrical conductivity and resistance to corrosion.

With a tail pin length of 3.4 mm and a mating pin length of 3.5 mm, this pin header provides secure mechanical and electrical mating. It is rated for a 1A current per contact and functions reliably over a wide temperature range, from -40°C to 105°C, making it suitable for industrial, communications, consumer electronics, drive control, and embedded PC applications.

The M22 series pin headers offer multiple configurations and can be cut to size as needed, providing design flexibility in large electronics systems and motherboards. This unshrouded version allows easy access but requires care when cutting to avoid tail damage.

Phosphor bronze contacts with gold plating for superior conductivity and durability. High temperature nylon housing suitable for reflow soldering processes. 2 mm pitch with 10 contacts in 2 rows for compact, high-density applications.

Wide operating temperature range from -40°C to 105°C supports harsh environments. Designed for board-to-board through hole mounting enhancing secure connections. Unshrouded design facilitates easy customization and connectivity.

Ideal for industrial monitoring, communication equipment, consumer electronics, and embedded systems.

Choose this HARWIN M22-2020505 pin header for dependable, versatile PCB connector applications. Explore more components in PCB Pin Headers and connectors at EnvMart to support your electronic design and manufacturing needs.
