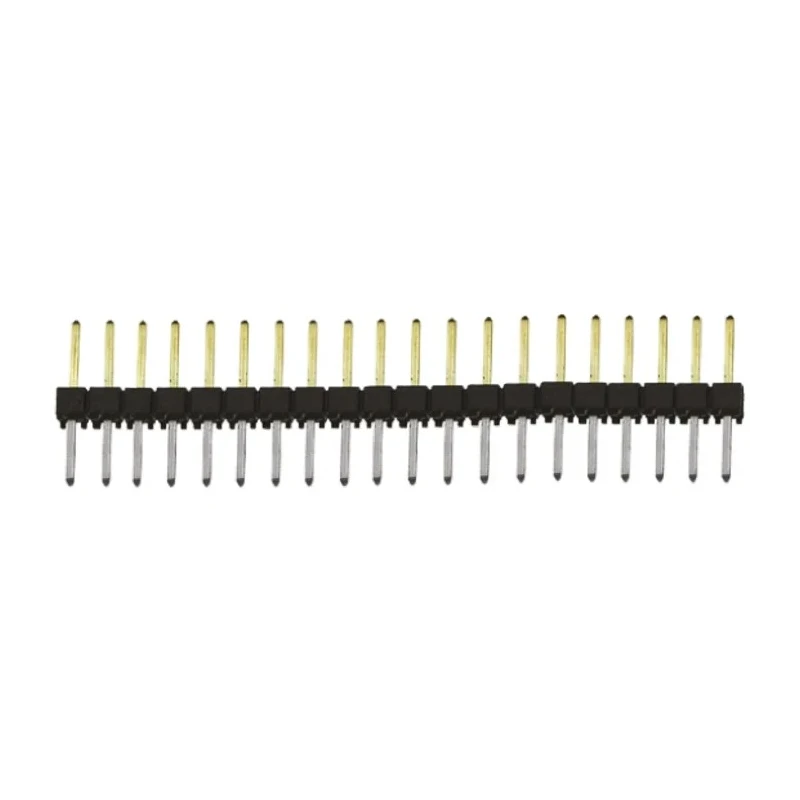

Samtec TSW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSW-120-08-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-120-08-L-S |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
Key Features
- Single row configuration with 20 gold-plated phosphor bronze contacts.
- Glass filled polyester housing providing durability and insulation.
- Supports continuous current up to 7.6 amperes.
- Through hole mounting ensuring secure mechanical connection.
- Operating temperature range from -55°C to 125°C for varied environments.
- Unshrouded design allows direct mating with compatible sockets.
- Terminal tail pin length of 5.08 mm with mating pin length of 5.84 mm.
- Suitable for applications in industrial electronics, power connectors, and PCB assemblies.
Product Description
Samtec TSW-120-08-L-S is a high-quality straight through hole pin header featuring a single row with 20 male contacts spaced at a standard 2.54 mm pitch. The housing is constructed from glass filled polyester ensuring mechanical strength and electrical insulation.
Its gold-plated phosphor bronze contacts provide excellent electrical conductivity and corrosion resistance. This pin header is designed for through hole mounting, making it ideal for secure board-to-board and wire-to-board connections in various electronics applications.
Operating within a broad temperature range of -55°C to 125°C, it withstands demanding industrial environments. The header has a tail pin length of 5.08 mm and mating pin length of 5.84 mm, ensuring compatibility with standard sockets and connectors.
Rated for 7.6A current and 550V voltage, this component meets the reliability needs of industrial, manufacturing, electronics assembly, and power connector applications. Single row with 20 gold-plated phosphor bronze contacts for durability and conductivity.
Glass filled polyester housing offers robust insulation and mechanical strength. Through hole mount type allows secure PCB attachment. Wide operating temperature range ensures suitability for harsh environments. Unshrouded design facilitates easy mating with complementary connectors.
Rated for 7.6A current and 550V voltage for safe power management. Contact tail pin length of 5.08 mm and mating pin length of 5.84 mm for compatibility. Applicable in industrial, electronics manufacturing, and power connector use cases.
This Samtec TSW series pin header is a dependable solution for precise electrical connections in board and wire assemblies. Explore more PCB connectors and headers in the Electronics & Electricals category at EnvMart to find compatible components and expand your design choices.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum continuous current of 7.6 amperes.
The contacts are spaced at a standard pitch of 2.54 mm.
It operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
The contacts are made of gold-plated phosphor bronze, while the housing is constructed from glass filled polyester.
This model features a total of 20 male contacts.
It utilizes a through hole mounting type, ensuring a secure mechanical connection.
The tail pin length is 5.08 mm, which ensures compatibility with standard sockets.
It is rated for a voltage of 550V, suitable for safe power management.
This model is unshrouded, allowing for direct mating with compatible sockets.
It supports board-to-board and wire-to-board connections, making it versatile for various applications.
The mating pin length is 5.84 mm, ensuring compatibility with other connectors.
This pin header is part of the Samtec TSW series.
