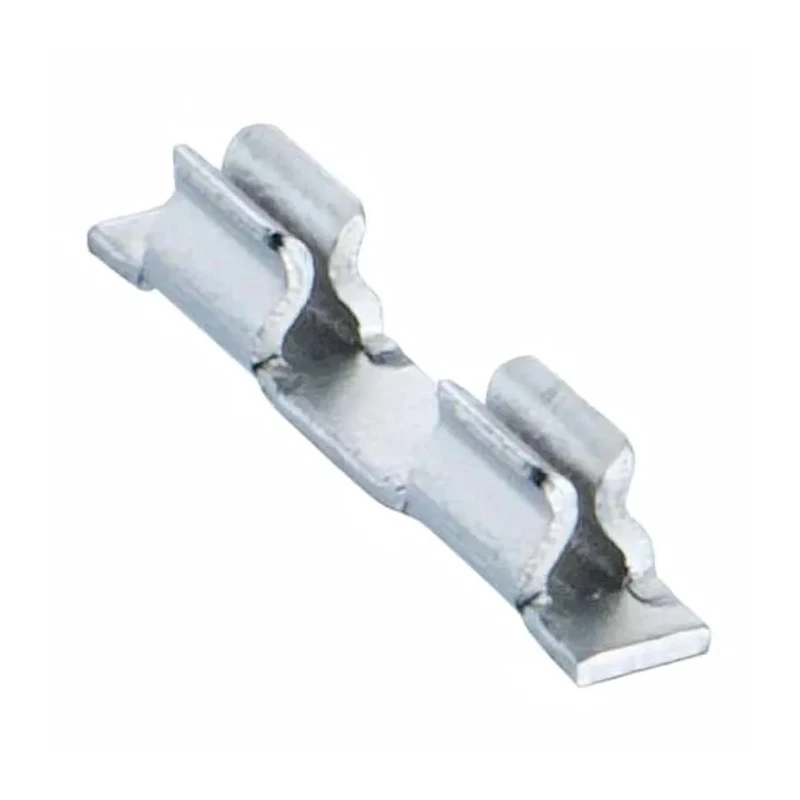

HARWIN 0.9 mm Stainless Steel Surface Mount Grounding Contact with Tin over Nickel Plating S1001-46R

HARWIN S1001-46R is a micro size grounding contact manufactured from stainless steel, specifically designed for surface mount applications in electronic assemblies. With dimensions of 4.5 mm length, 0.9 mm height, and 0.75 mm width, this compact grounding contact is ideal for use with shield thicknesses ranging from 0.15 to 0.2 mm.

The contact is plated with tin over nickel, providing excellent conductivity and corrosion resistance essential for reliable grounding in high-frequency and sensitive electronic systems. It is packaged in tape and reel format supporting automated pick-and-place manufacturing processes, enhancing assembly efficiency in large-scale production.

This grounding contact meets EIA 481 standards, ensuring compliance with industry requirements. It is recommended for use with HARWIN shield cans models S02-20150300, S02-25200300, and S02-30200250, making it suitable for EMI and RFI shielding in electronic devices.

Applications include PCB prototyping, ESD control, cleanroom environments, and various electronics manufacturing scenarios where reliable grounding and shielding are critical. The material choice and plating combination ensure long-term durability and stable performance under demanding industrial conditions.

Made from durable stainless steel providing robust mechanical strength. Featuring tin over nickel plating for reliable electrical contact and corrosion resistance. Compact micro size: 4.5 mm length, 0.9 mm height, and 0.75 mm width suitable for tight PCB layouts.

Packaged in tape and reel format for automated placement and efficient assembly. Complies with EIA 481 standards ensuring industry compatibility and quality. Recommended for use with S02-20150300, S02-25200300, or S02-30200250 shield cans for effective EMI/RFI protection.

Choose HARWIN Grounding Contacts from EnvMart for trusted quality components meeting strict industrial standards. Explore our Electronics Components category for related shielding and connector solutions.
