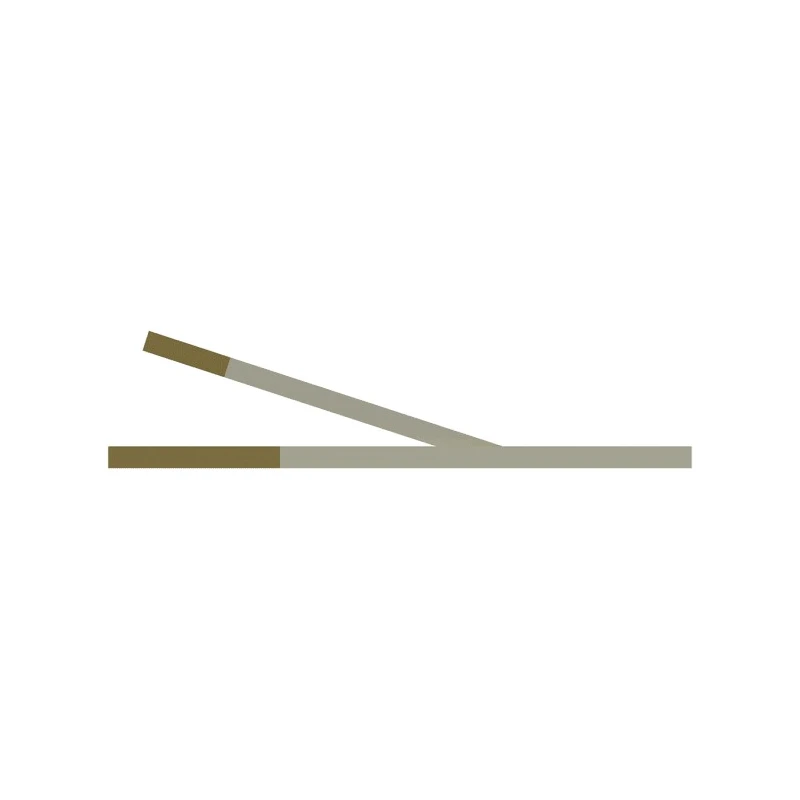

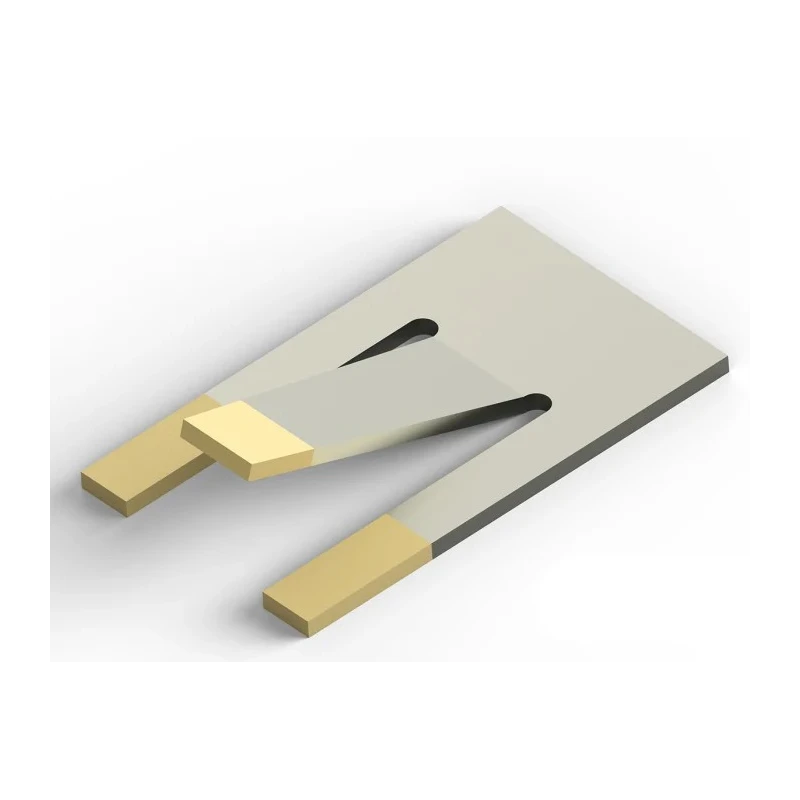

TE Connectivity 0.8 mm Grounding Contact Copper Alloy Surface Mount 5Ω Resistance 500mA 1447009-5

TE Connectivity 1447009-5 0.8 mm grounding contact is a precision electronic component made from copper alloy, designed to provide a reliable grounding connection between devices and printed circuit boards (PCBs). It features a surface mount fixing method that accommodates standard soldering and pick-and-place techniques, facilitating efficient manufacturing workflows.

The product exhibits a low contact resistance of 5 ohms and supports a continuous current rating of 500mA, making it suitable for a variety of low-power electronic applications. Its compact size with a height of 0.8 mm, length of 0.6 mm, and width of 2 mm ensures minimal space consumption on the PCB, ideal for tightly packed electronics.

This grounding contact is highly effective in shielding devices from electromagnetic interference (EMI) and static noise, improving device reliability and performance. It is commonly used in consumer electronics such as mobile phones, wearable devices, game consoles, tablets, patient monitoring devices, point of sale (POS) scanners, security systems, and global positioning system (GPS) devices.

The design also permits simple stacking connections between primary and secondary PCBs, providing a versatile and cost-effective solution for multi-layer board assemblies. Its construction ensures durability and stable electrical performance in demanding industrial and electronic manufacturing environments.

The component offers flexibility for PCB layout designs and is suitable for rapid prototyping and quick-turn production, fulfilling the needs of modern electronics manufacturing including industrial, laboratory, and commercial sectors.

Manufactured from copper alloy for excellent conductivity and durability. Surface mount fixing suitable for automated assembly processes. Low contact resistance of 5 ohms ensures effective grounding. Current capacity of 500mA suitable for low-power electronics.

Compact dimensions minimize PCB footprint. Provides EMI and static noise shielding for enhanced device reliability. Ideal for use in mobile and wearable electronic devices. Supports simple stacking applications between PCBs.

Compatible with standard soldering and pick-and-place equipment. Enables flexible and fast PCB design and manufacturing. Explore more grounding contact solutions and electronic components for varied industrial applications at EnvMart.
