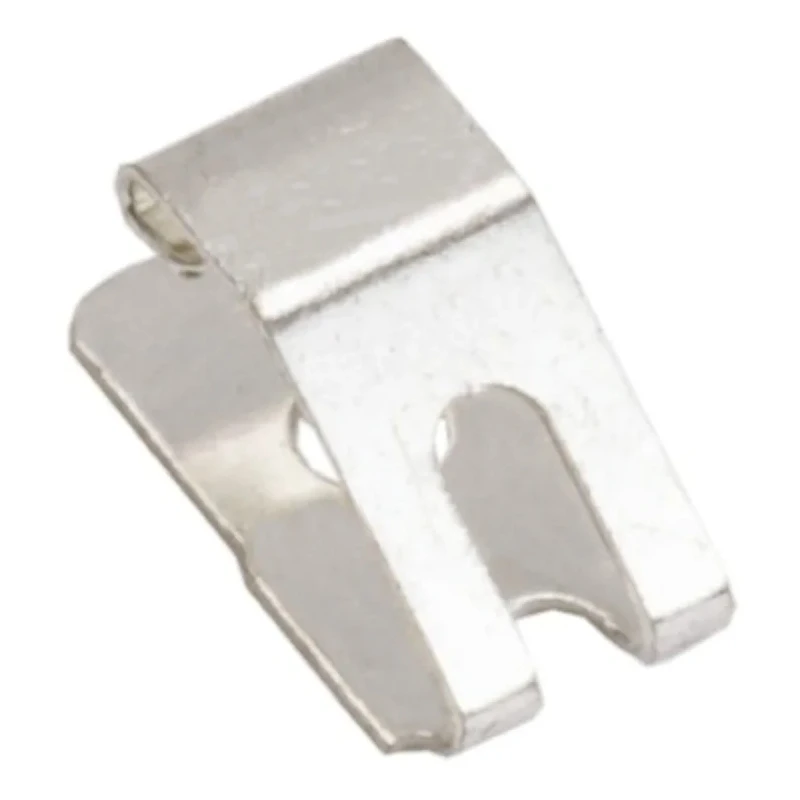

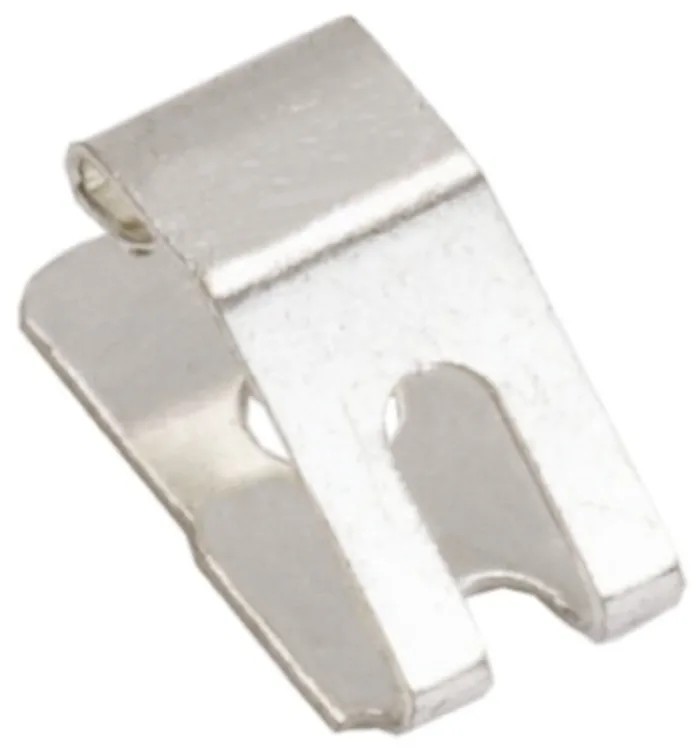

HARWIN 2.5 mm Grounding Contact Phosphor Bronze Surface Mount 6A Current S1741-46R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Material | Phosphor Bronze |
| Current | 6A |
| Height | 2.5mm |
| Length | 5.4mm |
| Model | S1741-46R |
| Width | 3.1mm |
| Contact Plating | Tin over Nickel |
| Fixing Method | Surface Mount |
| HARWIN 2.5mm Spring ContactBrand | HARWIN |
Key Features
- Constructed of durable phosphor bronze material for reliable conductivity.
- Surface mount fixing method suitable for automated PCB assembly.
- Contact plating features tin over nickel to ensure corrosion resistance.
- Compact dimensions of 2.5 mm height, 5.4 mm length, and 3.1 mm width.
- Ideal for RFI grounding and maintaining chassis contact in electronic assemblies.
- Suitable for wiping and sliding applications ensuring effective electrical connection.
- Designed for high-volume automated placement equipment compatibility.
- Made in Taiwan, Province Of China.
Product Description
HARWIN S1741-46R 2.5 mm Grounding Contact is a high-performance surface mount contact designed to provide effective grounding in electronic assemblies. Constructed from phosphor bronze, this contact offers excellent spring properties and durability, making it ideal for reliable electrical connections in compact areas.
The contact plating of tin over nickel enhances corrosion resistance and ensures long-lasting performance. With a current rating of 6A, it supports a variety of industrial and commercial electronic applications requiring secure grounding and RFI control.
This grounding contact features a simple C-style spring design that ensures positive mating surface contact, suitable for wiping and sliding actions often needed in dynamic connections. Its surface mount fixing method facilitates use with standard automated PCB placement machinery, improving assembly efficiency and precision during manufacturing.
Dimensional attributes include a height of 2.5 mm, length of 5.4 mm, and width of 3.1 mm, making it compact for use in limited access and blindmate applications. These contacts are widely applied in POS tracking, home entertainment systems, instrument panels, industrial process control equipment, mobile power units, and motion control systems.
Manufactured in Taiwan, Province Of China, the HARWIN S1741-46R grounding contact complies with no explicit approvals but is designed for robust industrial use for maintaining chassis grounding and electromagnetic compatibility.
Durable phosphor bronze construction ensures conductivity and mechanical strength. Tin over nickel plating provides corrosion resistance. Surface mount design supports automated PCB assembly. Supports 6A current for various applications.
Compact 2.5x5.4x3.1 mm dimensions for tight spaces. Effective for RFI grounding and chassis contact purposes. Suitable for wiping and sliding electrical contacts. Applicable in industrial, home entertainment, and process control systems.
Explore more high-quality Grounding Contacts and electronic components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN S1741-46R grounding contact has a current rating of 6A, making it suitable for various industrial and commercial electronic applications.
This model has compact dimensions of 2.5 mm in height, 5.4 mm in length, and 3.1 mm in width, allowing for use in tight spaces.
It is constructed from phosphor bronze, which provides reliable conductivity and mechanical strength.
The contact features tin plating over nickel, which enhances its corrosion resistance and ensures long-lasting performance.
The HARWIN S1741-46R uses a surface mount fixing method, which is compatible with automated PCB assembly processes.
It is ideal for RFI grounding and maintaining chassis contact in electronic assemblies, including POS tracking and home entertainment systems.
This model features a simple C-style spring design that ensures positive mating surface contact, suitable for wiping and sliding actions.
Yes, it is designed for compatibility with high-volume automated placement equipment, improving assembly efficiency.
This grounding contact is manufactured in Taiwan, Province Of China.
The primary use of this grounding contact is to provide effective grounding in electronic assemblies, ensuring reliable electrical connections.
Its compact size allows for installation in limited access and blindmate applications, making it versatile for various setups.
This grounding contact can benefit systems such as industrial process control equipment, mobile power units, and motion control systems.
