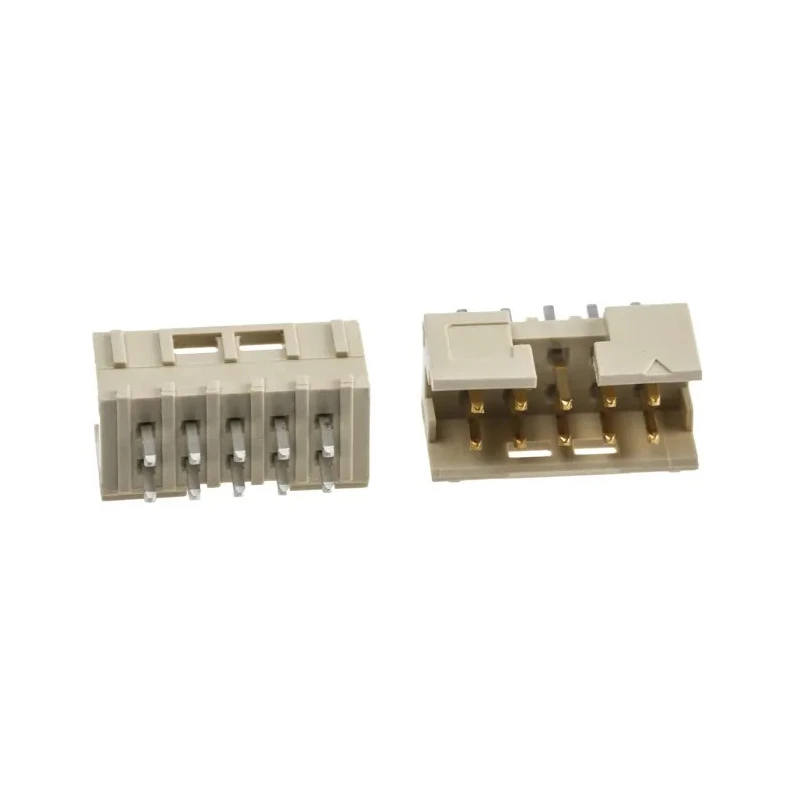

Amphenol Communications Solutions Minitek Series 2.00 mm Pitch, 10 Contact, 2 Row Straight Through Hole PCB 98414-G06-10LF

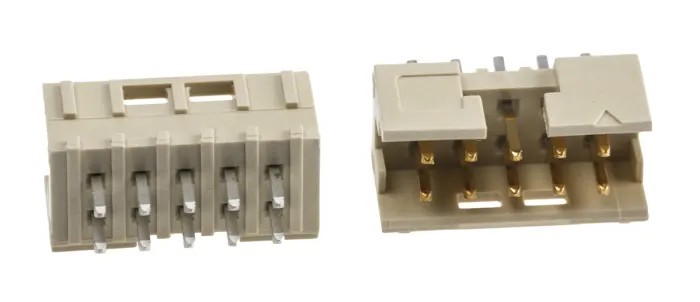

Amphenol Communications Solutions 98414-G06-10LF Minitek Series Straight Through Hole PCB Header is engineered with a 2.00 mm pitch and 10 contacts arranged in 2 rows, ideal for compact board-to-board and wire-to-board connectivity in electronics.

This PCB header uses a shrouded thermoplastic housing that conforms to UL94V-0 standards, enabling it to withstand high-temperature reflow soldering processes reliably. The gold-plated copper alloy contacts offer excellent conductivity and durability with a current carrying capacity of 2 amperes per contact.

The connector's straight orientation and through-hole mounting style ensure a stable mechanical and electrical interface. Keying features in the housing prevent incorrect mating, while latching slots provide a secure connection to mating receptacles. Board standoffs facilitate maintenance by allowing easy PCB cleaning without disconnecting the header.

Designed for a wide range of electronic applications including automotive electronics, I/O modules, server drives, and programmable logic controllers (PLCs), this Minitek Series header provides space-saving benefits, occupying 38% less board area compared to traditional 2.54 mm pitch connectors.

The product supports a voltage rating of 200V and can operate reliably across a wide temperature range from -40°C to 125°C. Connector system supports both board-to-board and wire-to-board configurations, providing design flexibility.

Termination is via soldering, with male contact gender ensuring compatibility with corresponding receptacles. Tail pin length measures 2.5 mm while mating pin length is 4 mm, contributing to robust mechanical support. The use of high-temperature thermoplastic and gold plating enhances connector longevity and performance under thermal and electrical stress.

Keying and latching mechanisms secure connection and prevent connector damage due to mismating. Board standoffs in the housing promote easier PCB cleaning and maintenance, reducing downtime in industrial or electronic manufacturing environments.

This product is manufactured in France and offered in new condition, suitable for use in demanding industrial and commercial electronic assemblies. Explore more PCB Headers and electronic connectors at EnvMart to meet your industrial and design requirements.
