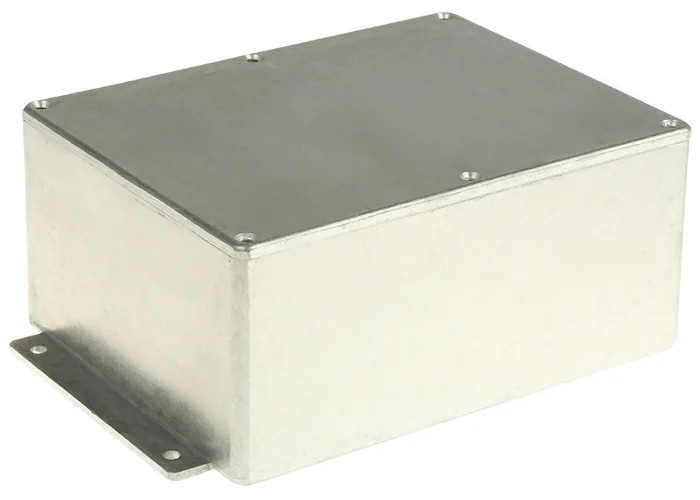

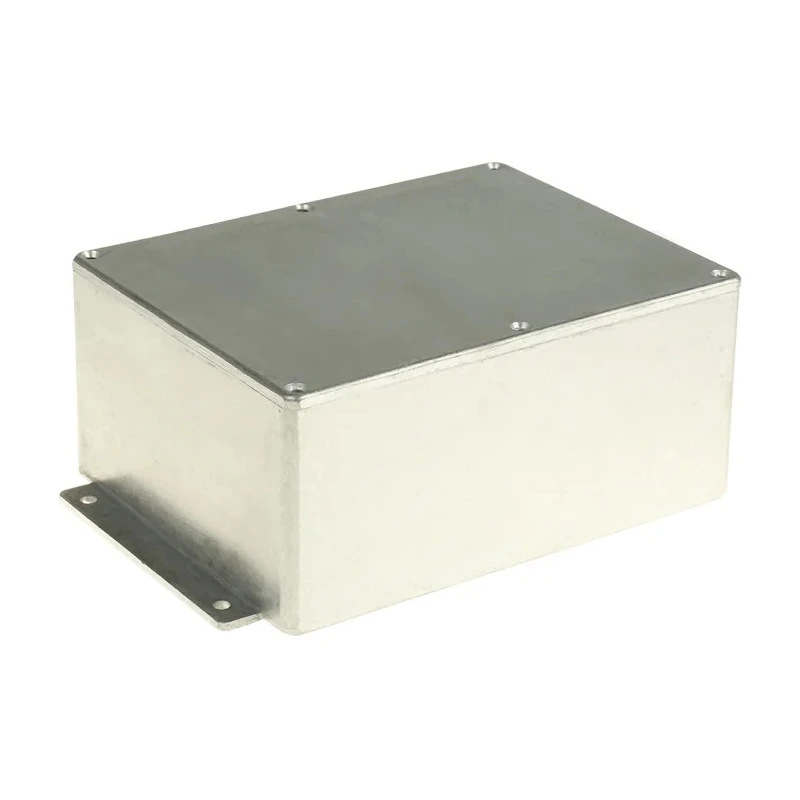

RS PRO Flanged Shielded Silver Lid Die Cast Aluminium Enclosure 76.3 mm x 194.8 mm x 127.4 mm 517-3765

RS PRO 517-3765 is a Flanged Shielded Die Cast Aluminium Enclosure designed for housing electronic and industrial equipment requiring robust protection and EMI/RFI shielding. This enclosure measures 76.3 mm in height, 194.8 mm in length, and 127.4 mm in width, making it suitable for compact installations.

Constructed from die cast aluminium alloy ADC 12 to BS1490 standards, the enclosure offers excellent mechanical strength and thermal stability, withstanding temperatures up to 250°C without structural damage. The natural aluminium finish provides durability and corrosion resistance with the option to apply powder paint for customized finishes.

The enclosure features a flanged design with integrated mounting flanges located on the enclosure body bottom, allowing secure and convenient wall mounting. A silver lipped lid ensures a tight fit with a taper of 1.5 degrees per side, enhancing the EMI and RFI shielding effectiveness, which exceeds 40dB at 10MHz and 76dB at 100 kHz, thus protecting sensitive electronics from electromagnetic interference.

Secure fastening is achieved through M3.5 x 9 mm Supadrive countersunk stainless steel screws, located outside the internal space to preserve internal mounting area. The enclosure is non-ventilated, providing a shielding enclosure suitable for electronic modules, remote control systems, and radio communications equipment.

Typical applications include general-purpose industrial electronic housings, protective cases for DIN rail mounted electrical components, and enclosures for environmental shielding in industrial automation, manufacturing, and telecommunications.

Manufactured from high-quality die cast aluminium alloy ADC 12 for durability and heat resistance. Features a flanged design with mounting flanges integrated for easy wall mounting. Silver lid with a lipped fit providing effective EMI/RFI shielding exceeding 40dB at 10MHz and 76dB at 100 kHz.

Suitable for industrial and electronic housing applications requiring temperature resistance up to 250°C. Body and lid have a natural aluminium finish with no external coating, facilitating powder painting options. Designed with M3.5 x 9 mm Supadrive countersunk stainless steel screws for secure lid attachment.

Ventilation free design, ideal for shielding sensitive electronics and DIN rail mounted components. Country of origin: Taiwan, Province Of China. Explore more General Purpose Enclosures and RS PRO products on EnvMart to find the right enclosures for your industrial and electronic protection needs.
