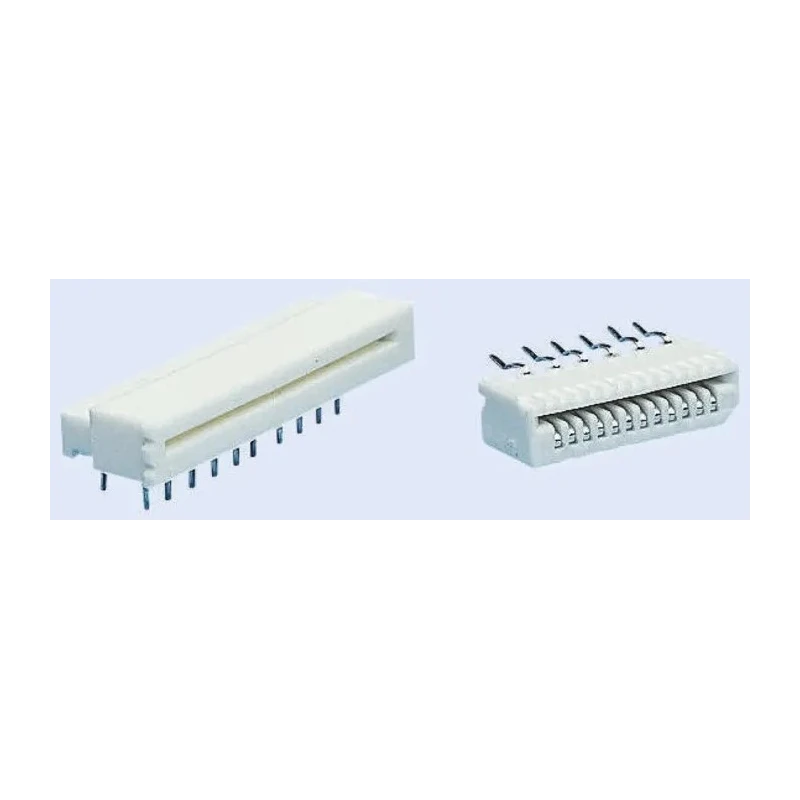

Molex 5597 Series 1.25 mm Pitch 14 Way Straight Female FPC Connector Through Hole Solder 39-53-2145

Molex 39-53-2145 is a 14 Way Straight Female FPC Connector from the 5597 Series with a 1.25 mm pitch. This zero insertion force (ZIF) connector is designed for through-hole PCB mounting with solder termination, providing secure and reliable electrical connections in compact designs.

The contacts are made from phosphor bronze, plated with tin over nickel, ensuring excellent conductivity and corrosion resistance. The connector housing uses polyethylene terephthalate for durability and electrical insulation.

Rated for 200V and 1A per contact, it supports operating temperatures ranging from -20°C to 80°C, suitable for demanding environments including automotive electronic systems. The slide type actuator offers stable connections and easy insertion while the locking mechanism prevents accidental release. Featuring staggered solder tails and a single row of contacts, it facilitates efficient soldering and mechanical stability.

This FPC connector is ideal for applications requiring compact, space-saving solutions such as embedded automotive electronics, industrial control systems, and consumer electronics assemblies where durability and reliable connectivity are essential.

The connector provides a secure, ZIF mating interface greatly reducing wear from repeated connection cycles. The small 1.25 mm pitch enables high-density PCB connections in tight spaces. The robust polyester housing resists environmental stress and mechanical damage.

Designed for through hole mounting to ensure reliable mechanical strength on PCB. The product’s locking mechanism enhances safety against vibration and shock. Explore the wide range of Molex FPC Connectors in the Electronics Components section on EnvMart to find matching counterparts and accessories suitable for your applications.
