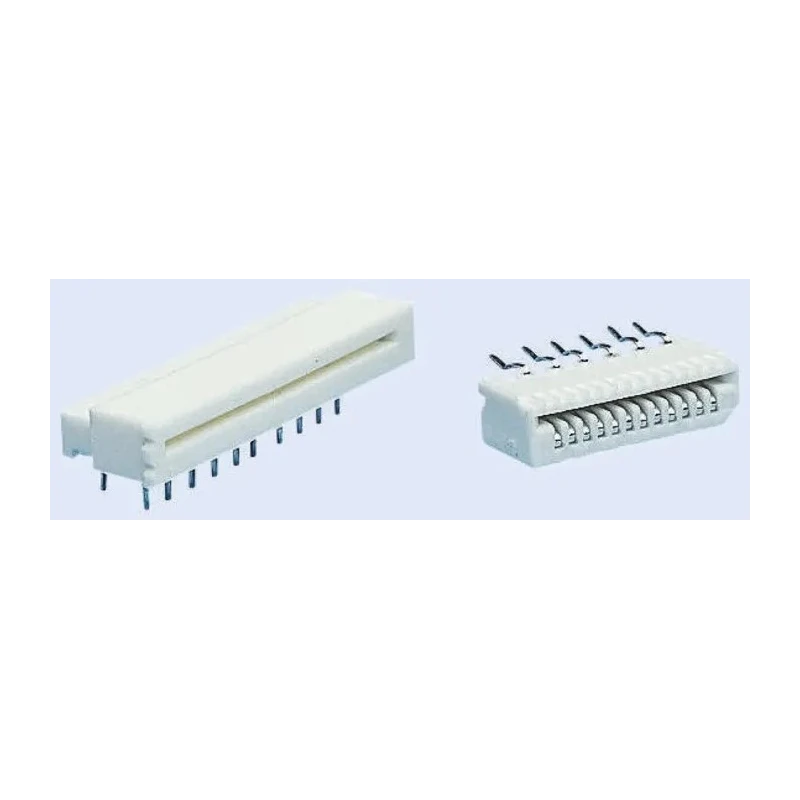

Molex FPC Connector 1.25 mm Pitch 12 Way Right Angle Female Through Hole Solder ZIF 200V 39-53-2124

Molex 39-53-2124 FPC Connector is a high-quality 12 way, 1.25 mm pitch female connector from the 5597 series, designed for through hole PCB mounting with a right angle orientation. It operates at 200V and supports currents up to 1A, making it well-suited for demanding electronic applications including automotive electronics.

This connector features phosphor bronze contacts with tin bismuth plating over nickel, offering excellent conductivity and corrosion resistance. The connector utilizes a zero insertion force (ZIF) design, which minimizes wear on the flexible printed circuits and facilitates easy, secure connections through a slide type actuator.

The housing is constructed from robust polybutylene terephthalate, providing durability and reliable insulation. Its locking mechanism ensures that the FPC remains firmly secured during operation. The connector supports a single row of contacts arranged in a compact 1.25 mm pitch spacing, ideal for use in tight packaging situations on circuit boards.

Operating effectively within a temperature range of -20°C to 80°C, this connector is designed to maintain reliable electrical performance even in challenging environmental conditions. The right angle orientation helps save space on PCBs and accommodates design constraints where vertical height is limited.

Space-saving right angle design for compact PCB layouts. ZIF mechanism reduces insertion force and extends connector life. Slide type actuator secures and eases FPC insertion/removal. Durable polybutylene terephthalate housing offers mechanical strength.

Suitable for automotive and general electronic applications. Corrosion-resistant tin bismuth contact plating ensures longevity. Rated for voltage up to 200V and current of 1A for standard electronic uses. Operating temperature range between -20°C to 80°C for versatile environments.

Single row with 12 contacts arranged at 1.25 mm pitch spacing.

This FPC connector is ideal for industrial and manufacturing sectors requiring reliable and compact PCB connection solutions, particularly in automotive electronics where durability and secure connections are critical. Browse the FPC Connectors category at EnvMart for a wide selection of compatible connectors and components.
