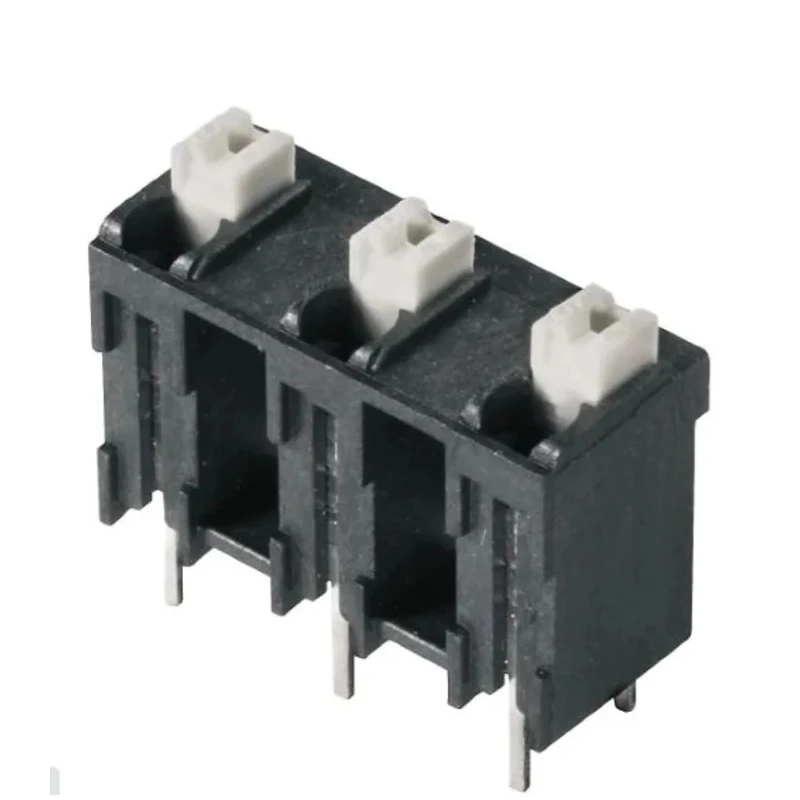

Weidmüller LSF Series PCB Terminal Block, 6-Contact, 7.5 mm Pitch, 1 Row, 17.5A Current, 800V Voltage, Fibreglass 1826170000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 180° |
| Current | 17.5A |
| Depth | 7.8mm |
| Width | 41.7mm |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- Operates at a maximum current rating of 17.5 amperes.
- Designed with a black fibreglass liquid crystal polymer housing for durability.
- Provides a push-in wire connection method for tool-free conductor insertion.
- Supports wire sizes from 1.5mm² (28 AWG) up to 1.5mm² (14 AWG).
- Compact size with a single row orientation and 180° connection layout.
- Rated for use at voltages up to 800 volts.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Weidmüller 1826170000 is a high-quality PCB terminal block from the LSF series, featuring 6 connection points arranged in a single row with a 7.5 mm pitch. This device operates efficiently at a current capacity of 17.5 amperes and can withstand voltages up to 800 volts, making it suitable for demanding electronic and electrical applications.
The terminal block housing is made from robust fibreglass liquid crystal polymer in black, providing enhanced mechanical strength and heat resistance. Its push-in conductor connection method allows for easy and secure wire insertion without the need for tools, simplifying assembly and maintenance tasks.
Supporting wire sizes from 1.5 mm² (28 AWG) to 1.5 mm² (14 AWG), this terminal block offers versatile connectivity options. It features a 180° wire orientation that aids in compact PCB designs while ensuring reliable electrical contact. The device complies with RoHS regulations, guaranteeing it meets environmental safety standards.
The compact dimensions of 41.7 mm width and 7.8 mm depth make the block ideal for automated assembly processes including reflow soldering (SMT). The product is well-suited for industrial, manufacturing, and power electronics applications where dependable PCB connections are essential.
Operates at a maximum current rating of 17.5 amperes. Made with durable fibreglass liquid crystal polymer housing. Push-in wire connection method for easy installation. Supports wire sizes from 1.5 mm² to 1.5 mm² (28 to 14 AWG).
Single-row, 6-contact design with 7.5 mm pitch. Rated for voltages up to 800 volts with 180° orientation. Compliant with RoHS environmental standards. Compact size supports SMT assembly on PCBs.
This Weidmüller PCB terminal block from the LSF series is an excellent choice for engineers and technicians seeking a reliable, efficient connection solution in electronic systems. Explore more products within the PCB Terminal Block category at EnvMart for compatible and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum current rating of 17.5 amperes.
This terminal block is rated for use at voltages up to 800 volts.
It supports wire sizes from 1.5 mm² (28 AWG) to 1.5 mm² (14 AWG).
It features a 7.5 mm pitch and has 6 contacts arranged in a single row.
The terminal block utilizes a push-in wire connection method for tool-free conductor insertion.
The dimensions are 41.7 mm in width and 7.8 mm in depth.
The housing is made from fibreglass liquid crystal polymer, which provides enhanced mechanical strength.
It features a 180° wire orientation, which aids in compact PCB designs.
Yes, it complies with RoHS standards, ensuring environmental safety.
This model is part of the Weidmüller LSF series.
The country of origin for this terminal block is India.
