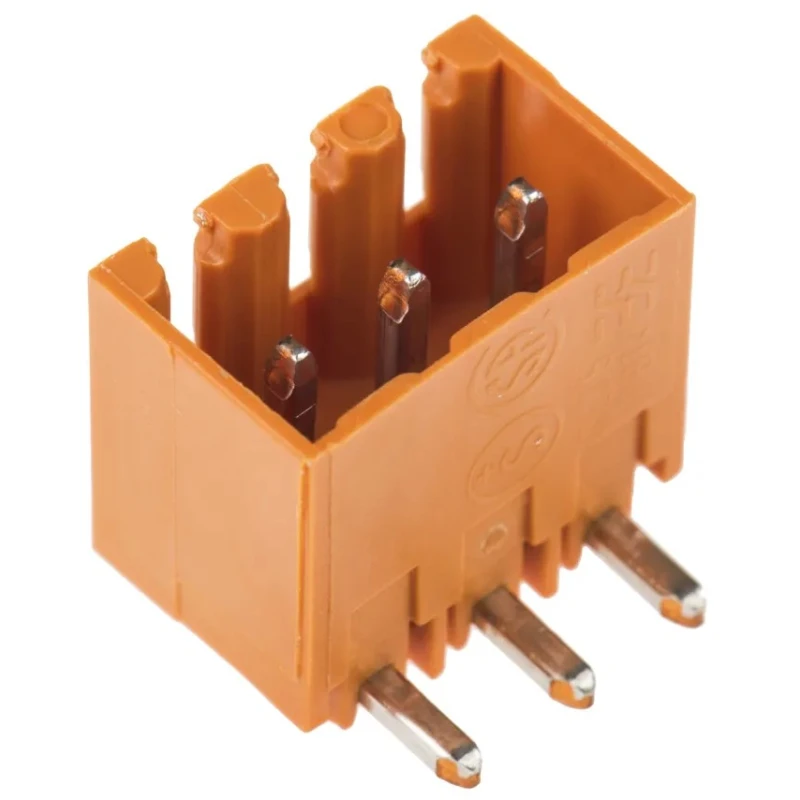

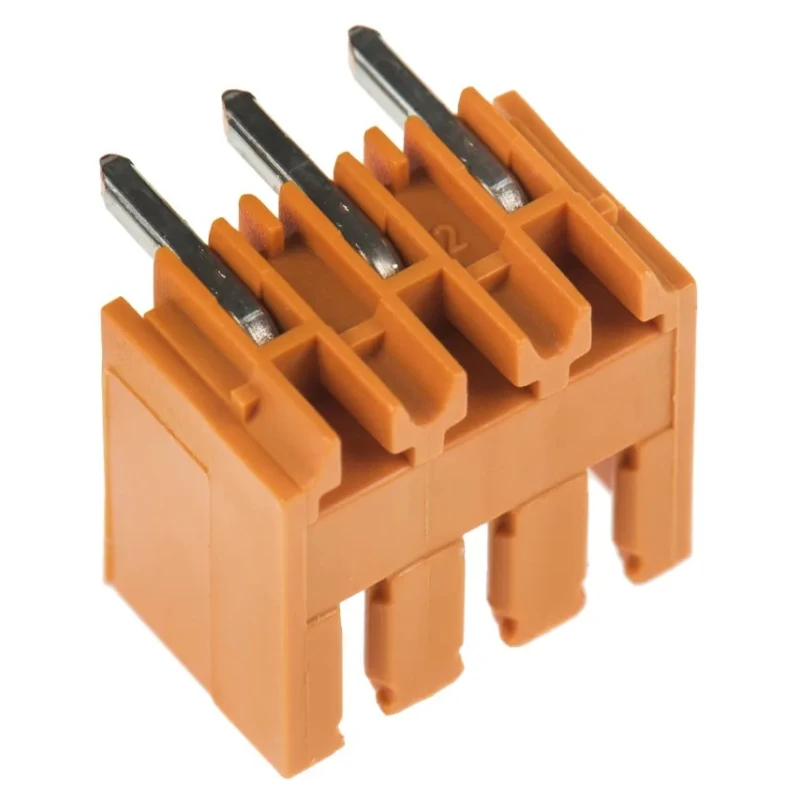

Weidmüller OMNIMATE SL Series Pluggable Terminal Block, 3-Contact, 3.5 mm Pitch, 1 Row, 17A Current, 320V Voltage 1605080000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 17A |
| Length | 3.2mm |
| Depth | 11.1mm |
| Width | 11.9mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- Constructed with Polybutylene Terephthalate housing for durable insulation.
- Right angle male connector designed for solder wire connection.
- Compatible with wire sizes from 28 AWG to 16 AWG.
- Features orange color coding for easy identification.
- Complies with UL94 V-0 flammability standard ensuring fire resistance.
- Ideal for PCB applications requiring pluggable terminal connections.
- Manufactured in Germany under OMNIMATE SL series for quality assurance.
- Polarising pins included to prevent mismatched connections.
Product Description
Weidmüller 1605080000 OMNIMATE SL Series Pluggable Terminal Block is a high-quality connector with 3 contacts on a 3.5 mm pitch and a single row layout. It supports a current rating of 17A and can operate at voltages up to 320V, making it suitable for various electronic component applications.
The block features a Polybutylene Terephthalate housing, offering robust mechanical strength and excellent electrical insulation. Its right angle male connector is designed for solder wire connection, supporting wire sizes from 28 AWG to 16 AWG for versatile wiring options.

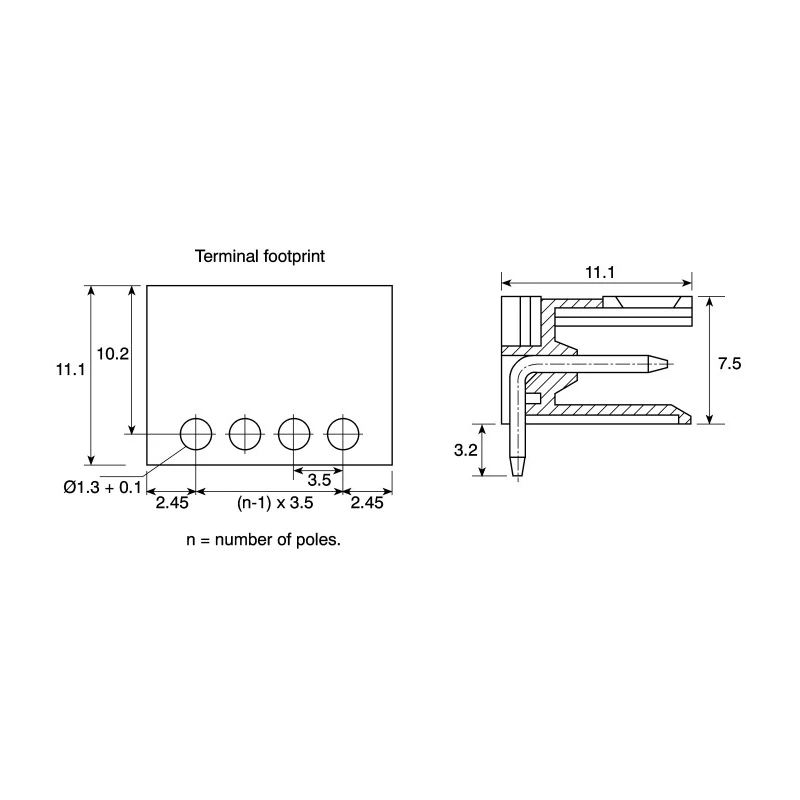

This Pluggable Terminal Block has compact dimensions with a width of 11.9 mm, depth of 11.1 mm, and length of 3.2 mm, enabling effective PCB design for space-saving installation. The orange color coding aids in easy circuit identification and maintenance.
It complies with the UL94 V-0 flammability class, ensuring safety in industrial electronic applications. The OMNIMATE SL series includes polarising pins to avoid mismatched connections improving reliability in electrical circuits.
The product is manufactured in Germany, maintaining strict quality standards for industrial, laboratory, and commercial electronic systems. Its design supports solder connections and is optimized for integration with tension clamp or rising clamp screw terminal mating harness connectors.
Robust and flame-retardant Polybutylene Terephthalate housing. Versatile wire compatibility from 28 AWG to 16 AWG. Space-efficient 3.5 mm pitch, 1-row configuration. Rated for 17A current and 320V voltage operation. Right angle male connector with solder connection method.
Polarising pins to prevent connection mismatches. Orange color for clear identification on PCBs. Manufactured in Germany ensuring premium quality.
This terminal block is ideal for use in industrial electronics, automation systems, power distribution, and PCB assembly. For more precision components and quality connectors, explore the broad range available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 17A and can operate at voltages up to 320V.
It features a pitch of 3.5 mm and has 3 contacts in a single row configuration.
This unit supports wire sizes ranging from 28 AWG to 16 AWG.
The housing is constructed from Polybutylene Terephthalate, providing robust mechanical strength and electrical insulation.
It has a right angle male connector designed for solder wire connection.
The terminal block features orange color coding for easy identification, aiding in circuit identification and maintenance.
It complies with the UL94 V-0 flammability standard, ensuring fire resistance in applications.
The dimensions are 3.2 mm in length, 11.1 mm in depth, and 11.9 mm in width.
It uses a solder connection method for wiring.
It is manufactured in Germany, ensuring adherence to quality standards.
This model is ideal for industrial electronics, automation systems, power distribution, and PCB assembly.
Yes, it includes polarising pins to prevent mismatched connections, enhancing reliability.
