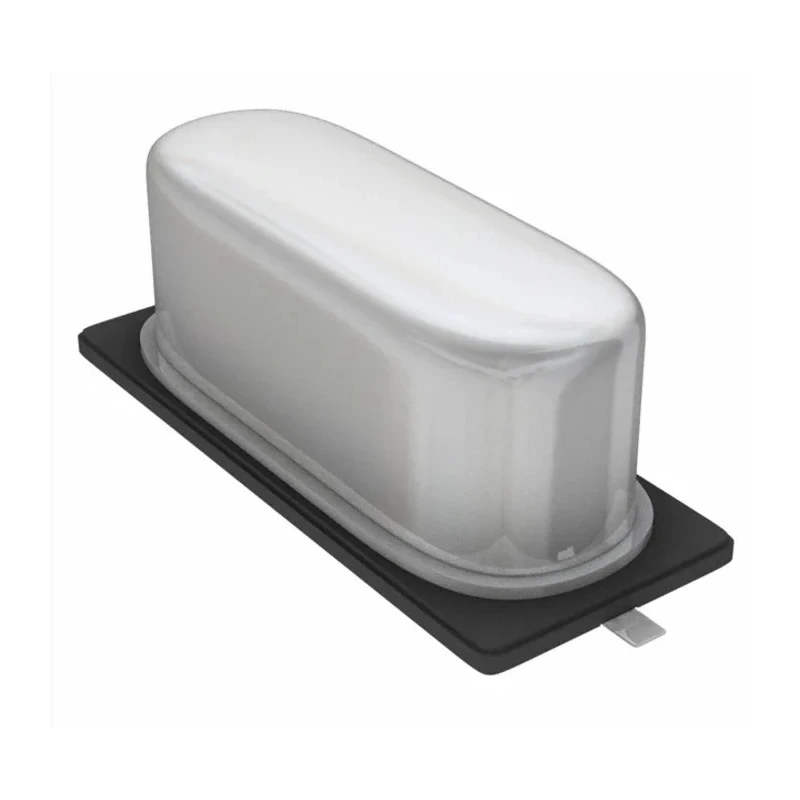

Abracon 3.6864 MHz Crystal ±30 ppm Surface Mount HC-49 3.3 mm Height 11.4 mm Length 4.7 mm Width ABLS2-3.6864MHZ-D4Y-T

Abracon ABLS2-3.6864MHZ-D4Y-T is a high precision 3.6864 MHz crystal unit designed for surface mount applications using the HC-49 package type. Its compact dimensions of 11.4 mm length, 4.7 mm width, and 3.3 mm height make it ideal for modern thin equipment and devices requiring precise timing controls.

This crystal delivers a frequency tolerance and stability of ±30 ppm, ensuring accurate and consistent oscillation in electronic circuits. Its load capacitance is specified at 18 pF, allowing compatibility with a wide range of oscillator circuits. The series resistance of 180 Ω supports low power consumption in various applications.

Engineered to operate reliably from -40°C up to 85°C, this crystal is suitable for use in demanding industrial, computing, modem, microprocessor, and wireless communication applications. The ABLS2 series microprocessor crystal is known for tight stability and extended temperature range, making it appropriate for surface mount technology (SMT) circuits.

The product complies with REACH and RoHS environmental standards, reflecting safe and sustainable manufacturing practices. It is supplied on tape and reel packaging, facilitating high-volume automated PCB assembly lines.

Standard frequency of 3.6864 MHz ensures precise timing applications. Surface mount HC-49 package type designed for easy PCB integration. Compact dimensions suitable for thin, space-constrained equipment. Frequency tolerance and stability rated at ±30 ppm for reliable performance.

Load capacitance of 18 pF supports stable oscillator operation. Wide operating temperature range from -40°C to 85°C for diverse environments. Series resistance of 180 Ω for low power circuit compatibility. RoHS and REACH compliant for environmental safety.

Packaged on tape & reel for automated assembly processes.

This Abracon crystal unit is ideal for use across multiple industries including industrial electronics, laboratory instrumentation, telecommunications, and embedded microprocessor-based systems. It offers precise oscillator frequency stability required in data communication, computing, and wireless applications. Customers can rely on ABLS2 series crystals to deliver quality and performance in tight electronic designs.
