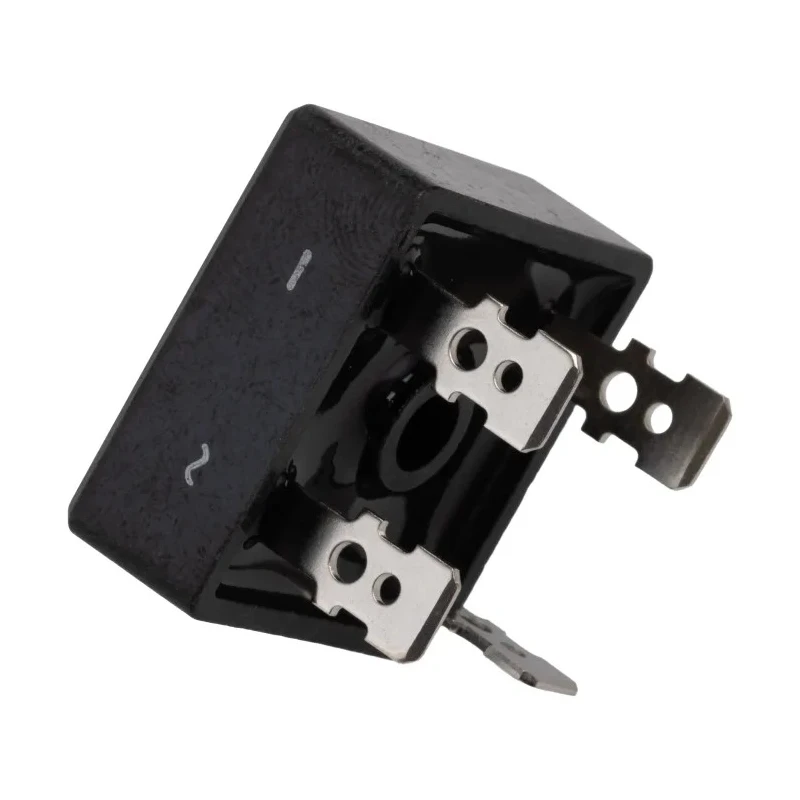

onsemi Bridge Rectifier 600 V 400 A 4-Pin Single Through Hole GBPC3506

onsemi GBPC3506 Bridge Rectifier is a high-quality power semiconductor designed for efficient AC to DC conversion in various electronic and industrial applications. It features a 600 V peak reverse repetitive voltage rating and a forward current of 35 A, suitable for demanding power rectification tasks.

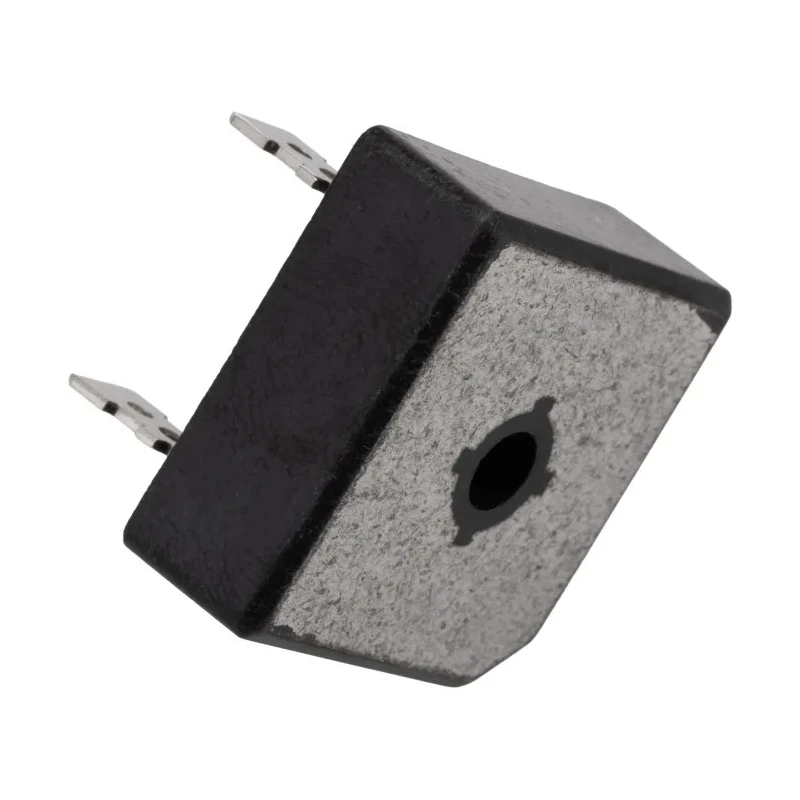

The device includes an integrally molded heatsink that minimizes thermal resistance to optimize heat dissipation, enhancing reliability and longevity in intensive use cases. Surge overload ratings range from 300 A to 400 A, accommodating sudden current spikes typically encountered in power electronics.

The rectifier's terminals are finished with a silver-nickel plating, providing excellent conductivity and corrosion resistance. Its isolated voltage rating from case to lead exceeds 2500 V, which reinforces the device's suitability for robust and safe electrical systems.

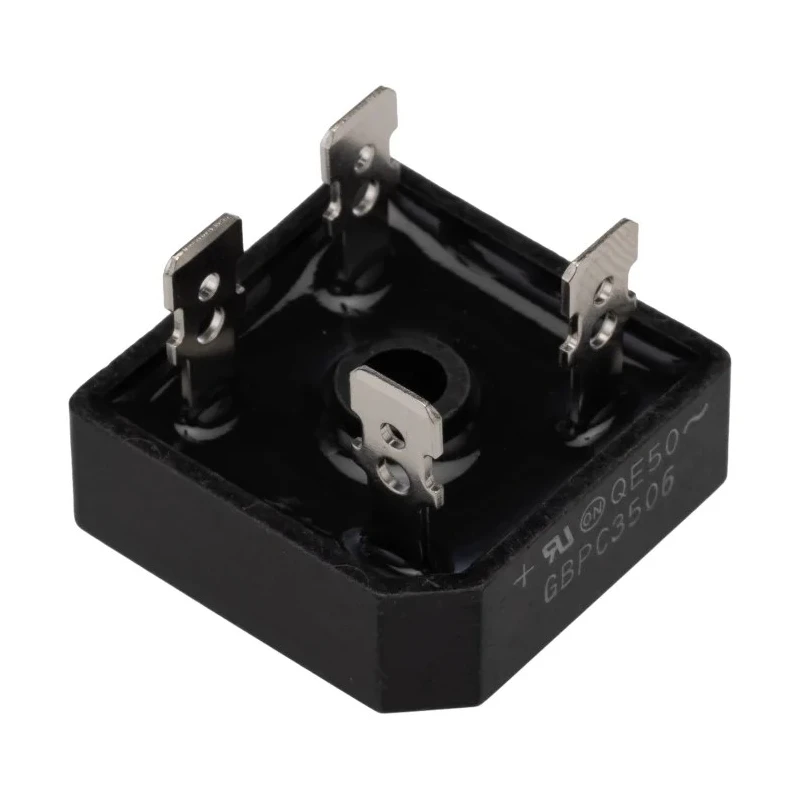

Designed as a 4-pin single-phase bridge rectifier in a GBPC package, the component supports through-hole mounting methods, facilitating straightforward PCB assembly and replacement. Its compact dimensions (29 mm length, 29 mm width, and 11.23 mm height) balance performance with space efficiency.

Operational temperature ranges from a minimum of -55°C to a maximum of 150°C, making it adaptable across diverse environments. This product is manufactured in China and meets typical industrial standards, though specific certifications are not declared.

Integrally molded heatsink provides very low thermal resistance for maximum heat dissipation. Surge overload ratings range from 300 A to 400 A. Isolated voltage from case to lead exceeds 2500 V. Silver-nickel terminal finish for durability and conductivity.

Through-hole mount type with compact GBPC package. Voltage rating of 600 V with 35 A forward current. Peak forward voltage of 1.1 V enhances efficiency. Wide operating temperature range from -55°C to 150°C. Dimensions of 29 mm length, 29 mm width, and 11.23 mm height.

This Bridge Rectifier is ideal for use in power supplies, electronic devices, industrial equipment, and general semiconductor applications requiring reliable and efficient rectification solutions. Its robust design and thermal handling capabilities make it suitable for demanding environments across industrial, laboratory, manufacturing, and commercial setups.
