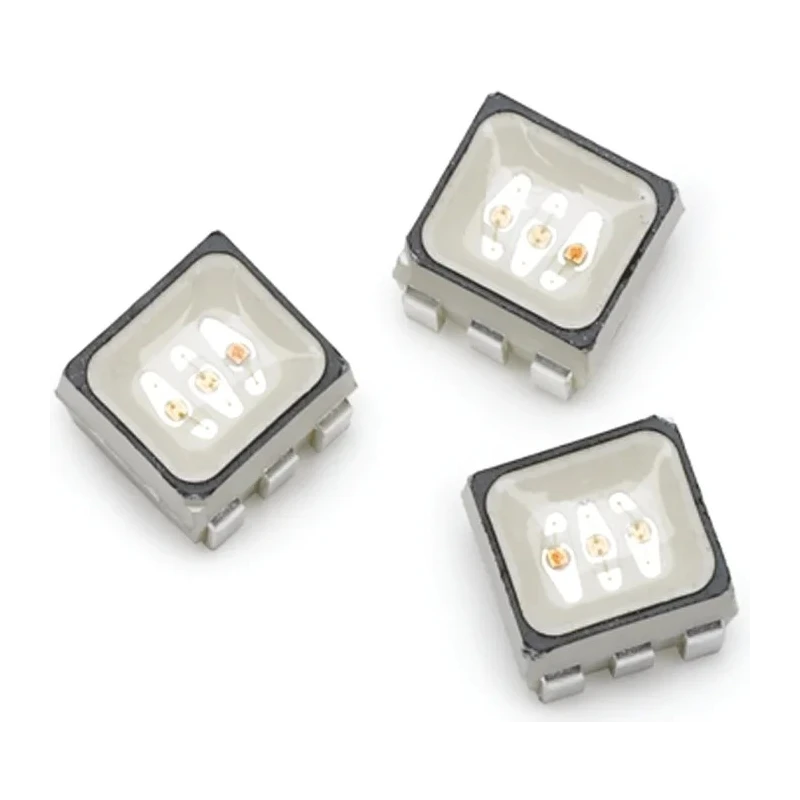

Broadcom 2.1 V RGB LED PLCC 6 Surface Mount Light Emitting Diode ASMT-YTB7-0AA02
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ASMT-YTB7-0AA02 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ASMT |
| Number Of Leds | 3 |
| Maximum forward current | 50mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 6 |
| Standards/Approvals | RoHS |
| LED Colour | RGB |
| Dominant Wavelength | 469, 529, 623nm |
| Forward Voltage | 2.1V |
| Number of Pins | 6 |
| LED Luminosity | 384 mcd, 650 mcd, 1900 mcd |
| Maximum Power Dissipation | 125mW |
| Lens Dimensions | 3 x 2.8 x 1.8 mm |
| Lens Shape | Square |
Key Features
- Provides a wide 120° viewing angle for uniform light coverage.
- Features three LED chips for independent RGB color control.
- Supports a maximum forward current of 50 mA per LED chip.
- Maximum power dissipation is limited to 125 mW to ensure thermal management.
- The clear square lens measures 3 x 2.8 x 1.8 mm for compact integration.
- Delivers high brightness output with luminous intensities of 384 mcd, 650 mcd, and 1900 mcd.
- Packaged on tape and reel to support automated manufacturing assembly.
Product Description
Broadcom ASMT-YTB7-0AA02 RGB LED is a high-quality surface-mounted light source designed for electronic assemblies requiring efficient and compact multicolour indication and illumination. Operating at a forward voltage of 2.1 V, this component combines red, green, and blue LED chips in a PLCC 6 package with a clear square lens, providing versatile visual applications.
The device supports a viewing angle of 120°, delivering broad, uniform light coverage ideal for indicator panels, decorative lighting elements, and status signalling in consumer electronics. Each LED chip can be driven independently thanks to the three-pin-per-colour arrangement, enabling precise colour mixing controlled by microcontrollers for dynamic color-changing displays.
This LED module sustains a maximum forward current of 50 mA per chip and a total power dissipation not exceeding 125 mW, ensuring reliability and low thermal load on printed circuit boards. The luminous intensities range up to 1900 mcd, suitable for high brightness indication and prototyping multicolour illumination solutions.
Supplied on tape and reel packaging, ASMT-YTB7-0AA02 facilitates automated pick-and-place assembly lines, enhancing production efficiency. The compact lens dimensions of 3 x 2.8 x 1.8 mm enable integration in small assemblies, making it equally effective for industrial, commercial, and prototyping applications within indicator panel construction, decorative electronics, and embedded status displays.
120° wide viewing angle for broad and uniform illumination. Independent RGB control with three separate LED chips and 6-pin configuration. Maximum forward current of 50 mA ensures efficient operation. Power dissipation capped at 125 mW reduces thermal stress on circuits.
High brightness with up to 1900 mcd luminous intensity. Compact clear square lens suitable for surface mount assembly. Packaged on tape and reel for automated manufacturing processes. It is the ideal choice for electronic engineers and assemblers looking for a reliable and versatile RGB LED solution.
Explore the comprehensive inventory of LEDs and other electronic components at EnvMart for your next industrial, laboratory, or commercial lighting project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for each LED chip in this model is 50 mA.
It has a wide viewing angle of 120°, providing broad and uniform illumination.
The luminous intensities for this model are 384 mcd, 650 mcd, and 1900 mcd, suitable for high brightness applications.
The forward voltage for this LED is 2.1 V.
This model is packaged on tape and reel, which supports automated manufacturing assembly.
The lens dimensions are 3 x 2.8 x 1.8 mm, making it suitable for compact integration.
The ASMT-YTB7-0AA02 contains three LED chips for independent RGB color control.
The maximum power dissipation is capped at 125 mW to ensure thermal management.
This model is designed for surface mounting.
The ASMT-YTB7-0AA02 complies with RoHS standards.
The dominant wavelengths are 469 nm for blue, 529 nm for green, and 623 nm for red.
This RGB LED is suitable for indicator panels, decorative lighting elements, and status signaling in consumer electronics.
