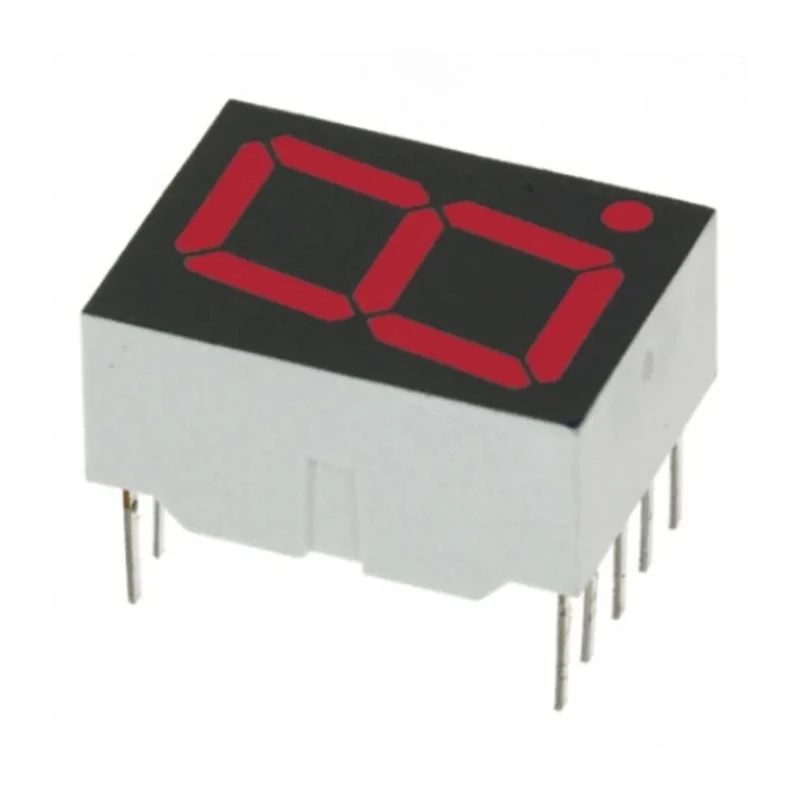

Broadcom 1-Digit 7-Segment Cathode Red LED Display 14.2mm Height HDSP-H103

Broadcom HDSP-H103 is a high-quality single-digit 7-segment red LED display module featuring cathode common connection and a character height of 14.2mm, designed for clear numeric display in electronic and industrial applications.

This display provides a luminous intensity of 4.2 millicandela, ensuring visibility in varied lighting conditions. It emits in the red spectrum with a dominant wavelength of 637nm and includes a grey face to enhance contrast and readability.

The module supports through-hole mounting, offering secure and durable PCB installation and an external size of 12.6mm width, 17mm height, and 8mm depth facilitates compact circuit board integration.

Operating parameters include a forward voltage of 1.7V and forward current of 15mA, optimized for energy efficiency. Its temperature tolerance spans from -20°C up to 100°C, enabling reliable performance in demanding environments.

The right-side decimal point orientation makes this LED display suitable for precise numeric readouts including measurement devices, instrumentation panels, and digital readouts. This product is compliant with RoHS environmental standards.

The single-digit 7-segment layout allows clear numeric data presentation. The robust design suits applications in industrial automation, electronics manufacturing, instrumentation, HVAC controls, and other commercial electronics.

Broadcom's legacy in high-quality LED components ensures reliable and consistent performance. This display module is ideal for integrating into electronic devices requiring clear and precise digital numeric output. Explore the broad range of Broadcom LED Display modules at EnvMart for diverse electronic component needs.
