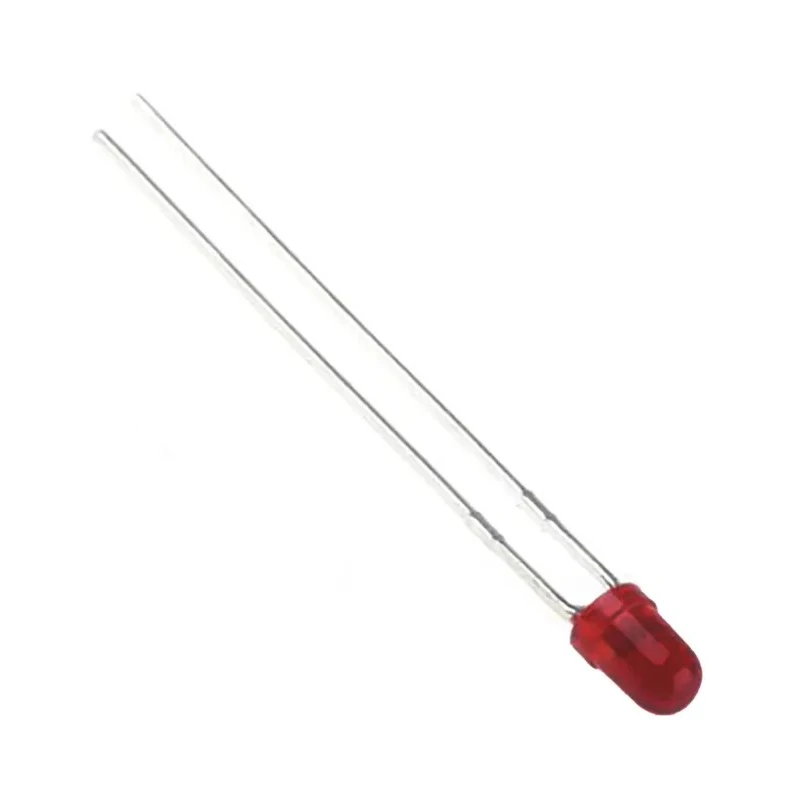

Broadcom 1.7 V Red 3 mm (T-1) Through Hole LED HLMP-1700
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-1700 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 7mA |
| Viewing angle | 50 ° |
| Package Type | 3 mm (T-1) |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.7V |
| Number of Pins | 2 |
| LED Luminosity | 2.1 mcd |
| Maximum Power Dissipation | 14mW |
| Lens Dimensions | 8.43 x 5.08 mm |
| Lens Shape | Round |
| Lens Finish | Tinted, Diffused |
Key Features
- This LED emits red light with a dominant wavelength of 626 nm providing a consistent and precise hue.
- The forward voltage is 1.7 V with a maximum forward current of 7 mA for low power operation.
- It features a 3 mm (T-1) round tinted, diffused lens to soften emitted light and reduce glare.
- The package is through hole with 2 pins for easy PCB mounting and bulk packaging suitable for volume use.
- It has a maximum power dissipation of 14 mW ensuring minimal thermal load in dense assemblies.
- The viewing angle of 50° offers focused visibility ideal for panel indicators and signalling.
- Typical luminosity is low at approximately 2.1 mcd, suitable for indicator or status LEDs.
- RoHS compliant and manufactured for reliable long-term use in various electronic and consumer applications.
Product Description
Broadcom HLMP-1700 is a 1.7 V Red LED with a 3 mm (T-1) Through Hole package, designed for low power visual signalling in electronic assemblies. It emits red light at a dominant wavelength of 626 nm, providing a precise and consistent color indication for control panels and status indicators.
This LED supports a maximum forward current of 7 mA and dissipates up to 14 mW of power, which minimizes thermal output and makes it suitable for dense circuit designs. Equipped with a round, tinted, and diffused lens, the HLMP-1700 reduces glare and softens the emitted light, enhancing visibility and aesthetics in indicator applications.
The 3 mm through-hole package type with 2 pins facilitates straightforward mounting on printed circuit boards, and the bulk packaging format is ideal for high-volume manufacturing and assembly lines. The LED offers a viewing angle of 50°, ensuring focused light distribution suited for panel indicator lamps and handheld instrumentation.
Applications include status indicators on consumer electronics, diagnostic indicators in test fixtures, handheld instruments, and general visual signalling in control equipment. This LED emits a precise red color with 626 nm dominant wavelength.
Low forward voltage and current reduce power consumption. Round diffused lens decreases glare and softens appearance. Through hole mount suits easy PCB integration. Bulk packaging supports repetitive assembly processes. RoHS compliance confirms environmental standards adherence.
Suitable for industrial, consumer, test equipment, and control applications. Explore the wide range of electronic components and LEDs offered by Broadcom on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 1.7 V, which allows for low power operation.
The maximum forward current for the HLMP-1700 is 7 mA, making it suitable for low power applications.
This LED emits red light with a dominant wavelength of 626 nm, providing a consistent color indication.
The viewing angle of this model is 50°, ensuring focused visibility for indicator applications.
It is packaged in bulk, which is suitable for high-volume manufacturing and assembly processes.
This LED features 2 pins, facilitating easy mounting on printed circuit boards.
The maximum power dissipation for the HLMP-1700 is 14 mW, which helps minimize thermal load in dense assemblies.
The typical luminosity of this model is approximately 2.1 mcd, suitable for indicator or status applications.
The lens of this LED is round with a tinted and diffused finish, which reduces glare and softens the emitted light.
The HLMP-1700 is manufactured in India, confirming its country of origin.
Yes, this LED is RoHS compliant, adhering to environmental standards.
This model uses a through hole mount type, which is suitable for easy PCB integration.
