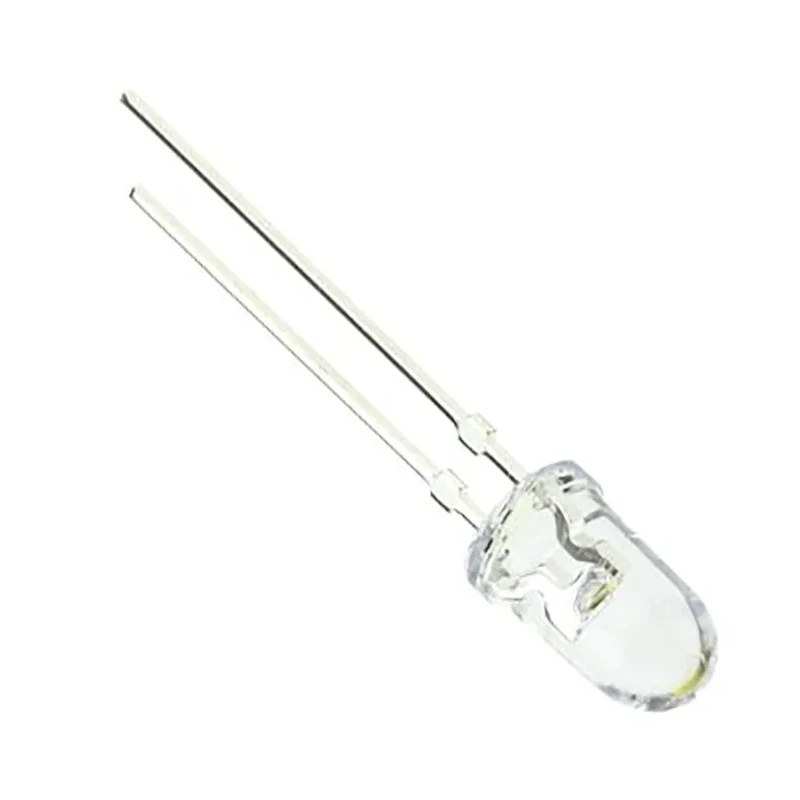

Broadcom 1.6 V Red LED 5 mm (T-1 3/4) Through Hole HLMP-D155

Broadcom HLMP-D155 is a 1.6 V red LED enclosed in a 5 mm (T-1 3/4) through hole package designed for electronic and industrial applications requiring efficient and low power visual indicators.

This LED features a deep red emission with a dominant wavelength of 637 nm, ensuring excellent visibility in various lighting environments. It has a low forward voltage of 1.6 V and a maximum forward current of 300 mA, making it ideal for battery-powered equipment and low power circuits. The wide viewing angle between 24 and 65 degrees provides flexibility across different mounting configurations.

The device uses advanced double heterojunction AlGaAs/GaAs material technology, granting it a high luminous efficiency even at reduced current levels. The round lens with options from diffused to non-diffused finishes allows customization for specific optical performance requirements.

The through hole mount type and two-pin configuration enable straightforward installation on printed circuit boards, suitable for telecom indicators, industrial machinery panels, and consumer electronics.

This LED also supports RoHS compliance, certifying its environmentally friendly manufacturing process. Its power dissipation limit of 87 mW ensures safe operation within specified parameters, preventing overheating in dense circuit layouts.

The LED emits a deep red color with a dominant wavelength of 637 nanometers. Maximum forward current rating of 300 mA allows robust operation. The package type is 5 mm (T-1 3/4) with a round lens shape and diffused to non-diffused finishes.

Forward voltage is low at 1.6 V, making it suitable for low power circuits and battery-powered devices. Wide viewing angle ranges from 24 to 65 degrees for versatile lighting applications. The LED uses double heterojunction AlGaAs/GaAs technology for high light output efficiency.

It has two pins and through hole mount type for easy PCB incorporation. Maximum power dissipation is 87 mW, enabling efficient thermal management. The LED luminosity is 10 millicandela, suitable for indicators and display applications.

Complies with RoHS standards ensuring environmental safety.

This product is widely used in industrial, telecommunications, consumer electronics, and instrumentation applications where reliable red visual indications and energy-efficient LEDs are needed.
