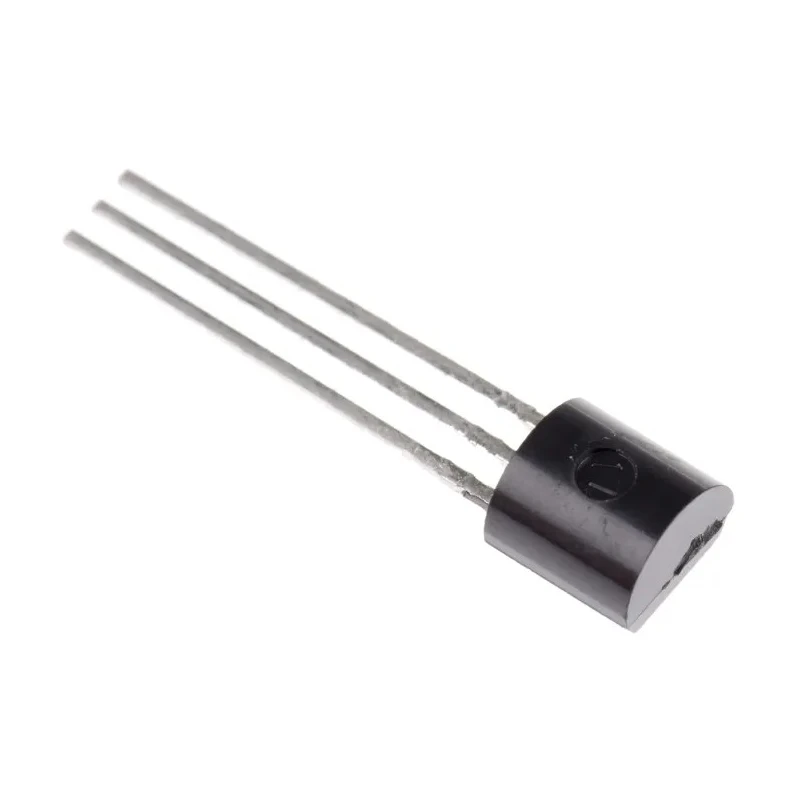

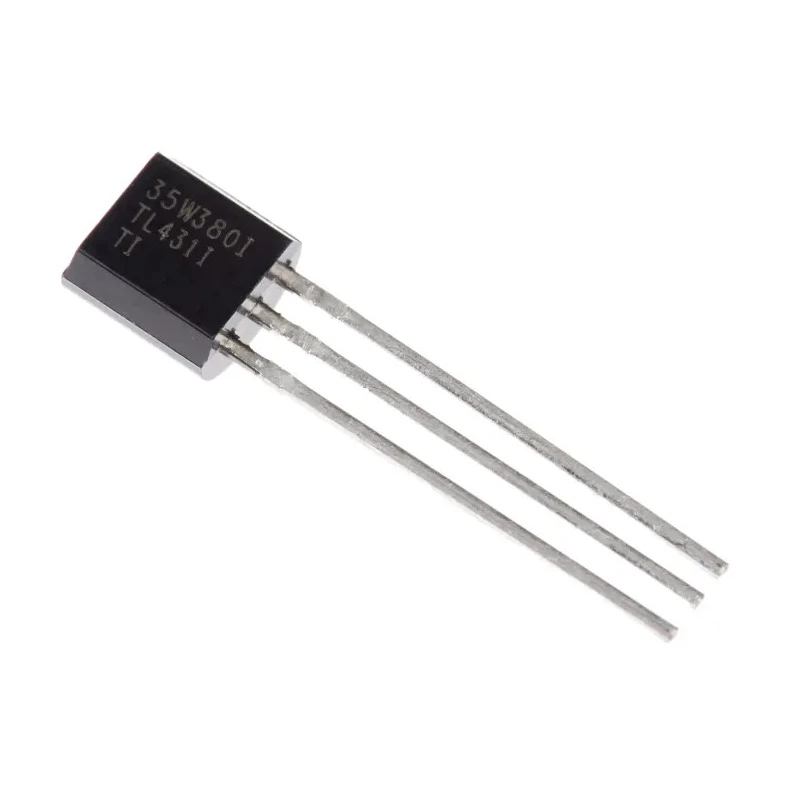

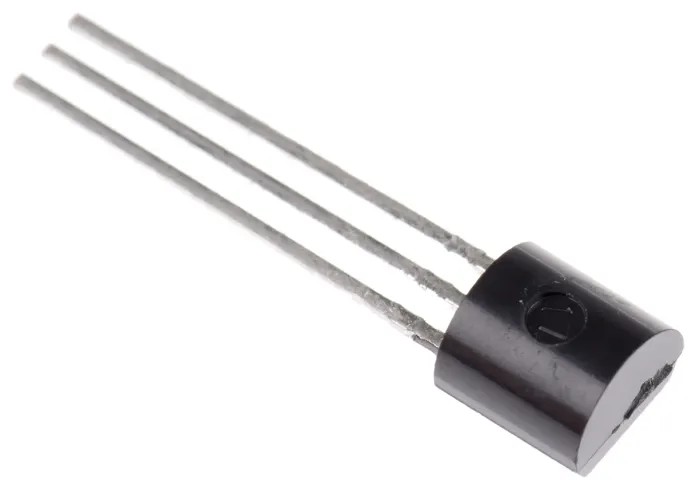

Texas Instruments Adjustable Shunt Voltage Reference ±2 % 36V 100mA 3-Pin TO-92 TL431ILP

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Adjustable Shunt Voltage Reference ±2 % 36V 100mA 3-Pin TO-92 TL431ILP

Name: Texas Instruments Adjustable Shunt Voltage Reference ±2 % 36V 100mA 3-Pin TO-92 TL431ILP
Brand: Texas Instruments
SKU: 137028



Category Voltage References Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	3.68mm
Length	4.83mm
Model	TL431ILP
Mount Type	Through Hole
Output type	Adjustable
Series	TL431
Temperature Coefficient	92 ppm/°C
Output Current	100mA
Topology	Shunt
Maximum Operating Temperature	85°C
Package Type	TO-92
Minimum Operating Temperature	-40°C
Reference Type	Adjustable
Maximum Input Voltage	37V
Minimum Input Voltage	2.44V
Pin Count	3
Reference Voltage	36V
Initial Accuracy	±2 %

Key Features

Operates with a wide input voltage range from 2.44V to 37V.
Offers adjustable output voltage with 100mA maximum output current capacity.
Features a temperature coefficient of 92 ppm per degree Celsius for stability.
Designed for through-hole mounting with a compact TO-92 form factor.
Operates over a temperature range of -40°C to 85°C for industrial applications.
Utilizes a shunt topology for precise voltage regulation.
Suitable for use in power management and voltage reference applications.
Provides reliable performance with no automotive standards compliance.

Product Description

Texas Instruments TL431ILP adjustable shunt voltage reference is a high-precision semiconductor device providing a stable output voltage of 36V with an initial accuracy of ±2 %. Housed in a 3-pin TO-92 package, it is designed for through-hole mounting and offers reliable operation across industrial temperature ranges from -40°C to 85°C.

This device features a shunt topology that enables an adjustable output voltage, making it suitable for a wide array of power management scenarios including voltage regulation and reference in electronic circuits. It supports a maximum output current of 100mA and can function with input voltages ranging from 2.44V to 37V, ensuring compatibility with many system voltage levels.

With a temperature coefficient of 92 ppm/°C, the TL431ILP ensures stable reference voltage under varying environmental conditions, suitable for demanding industrial, laboratory, and commercial electronic applications where voltage precision is critical.

The compact dimensions of 4.83mm length and 3.68mm height aid in space-constrained designs. The device does not comply with any automotive standards but is optimized for general electronic component use.

Operates with a wide input voltage range from 2.44V to 37V. Adjustable output voltage with up to 100mA current capacity. Temperature coefficient of 92 ppm/°C for accuracy stability. Through-hole mount type in TO-92 compact package.

Industrial operating temperature range from -40°C to 85°C. Shunt topology for precise regulation. Compact physical dimensions of 4.83mm by 3.68mm. Three-pin configuration for straightforward integration.

This voltage reference device is ideal for applications in industrial machines, instrumentation, power supply regulation, and other electronic control systems requiring a dependable voltage reference source.
