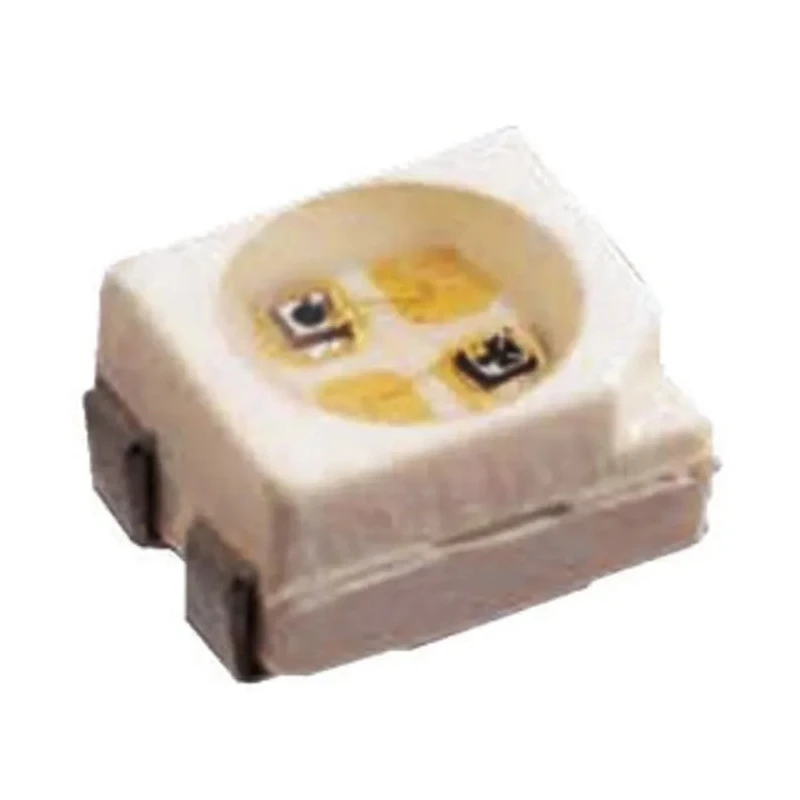

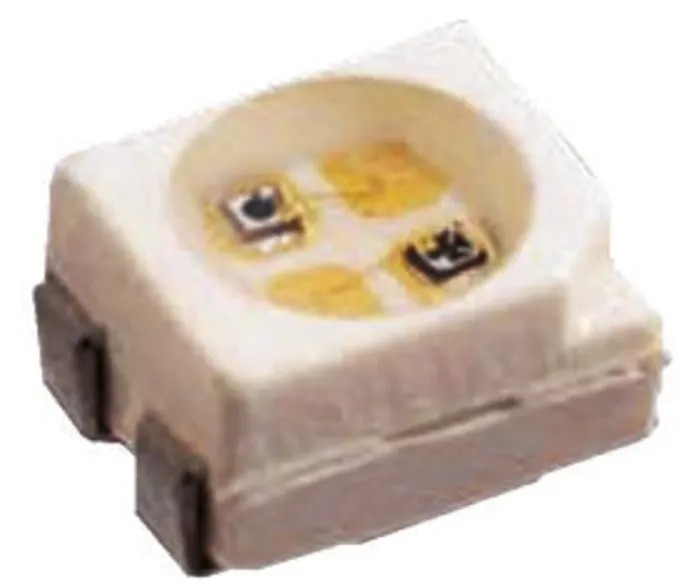

ams OSRAM Multi TOPLED Red/Yellow PLCC-4 Surface Mount LED, 2V, 30mA, LSY T676-P2R1-1-0+Q2S1-35

The ams OSRAM Multi TOPLED LSY T676-P2R1-1-0+Q2S1-35 is a versatile surface mount LED component featuring dual color outputs (red and yellow) in a robust PLCC-4 package. Designed for professional electronic applications, this SMT LED serves as an indicator or provides backlighting for a range of devices including LCD panels, switch assemblies, keypads, and illuminated advertisements.

Operating at a forward voltage of 2V with a maximum forward current of 30mA, the device delivers both high efficiency and reliable performance. Its dual LEDs are independently controllable, supporting advanced designs such as bi-color indicators and custom signaling in embedded systems. The luminous intensity is rated at 224 mcd with a luminous flux of 0.38 lm, ensuring clear visibility even under ambient lighting conditions.

The compact PLCC-4 package size (3.4 x 3.0 x 2.1 mm) and round clear lens (2.4 x 3 mm) facilitate easy integration into dense circuit layouts. The wide 120-degree viewing angle maximizes signal coverage and ensures clear visibility from varied directions. With 4 electrical pins, mounting and connectivity are straightforward for both manual and automated assembly lines.

Designed with tape and reel packaging for production-scale insertion, this Multi TOPLED is ideal for industrial, laboratory, and commercial electronic manufacturing. Its RoHS compliance guarantees safe materials for global deployments and regulatory assurance. Automated manufacturing environments can benefit from efficient installation and improved throughput.

Key applications for this LED include optical indication in industrial control panels, backlighting in lab equipment, keypad and display illumination in medical devices, and illuminated advertising signage. The clear lens and dominant wavelength (633nm) provide enhanced color fidelity, suitable for demanding environments and reliable operation.

For engineers and designers seeking a multi-functional LED with dual color capability and robust SMT construction, the ams OSRAM LSY T676-P2R1-1-0+Q2S1-35 offers a technically advanced solution. Explore more products in the Electronics & Electricals category to complement your design requirements with EnvMart's professional catalog selections.
