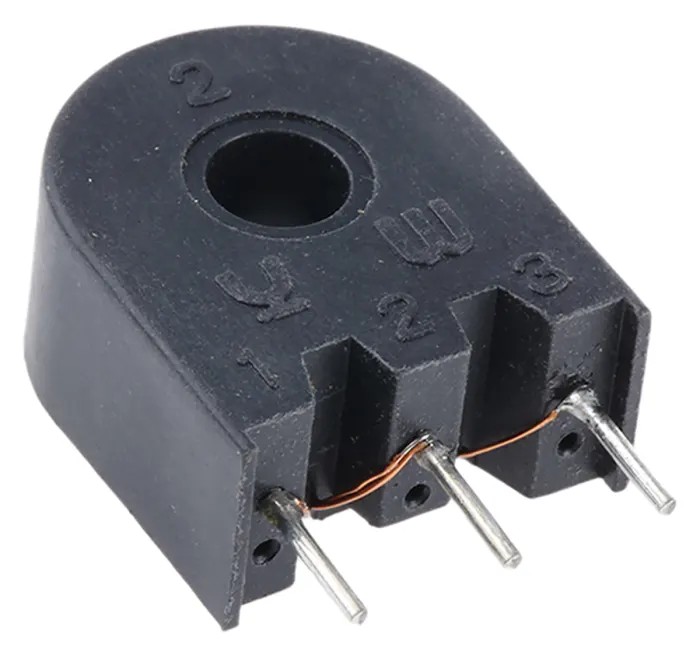

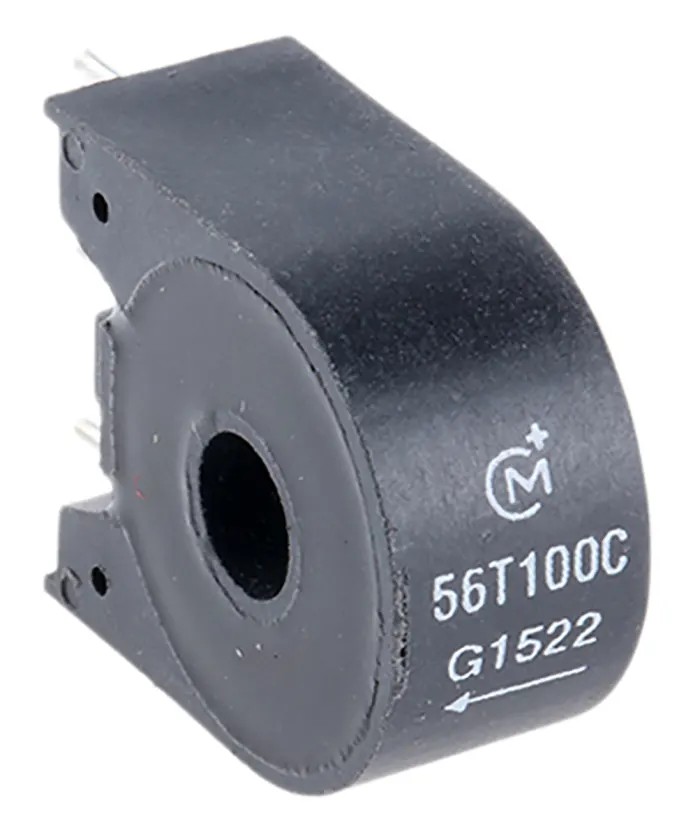

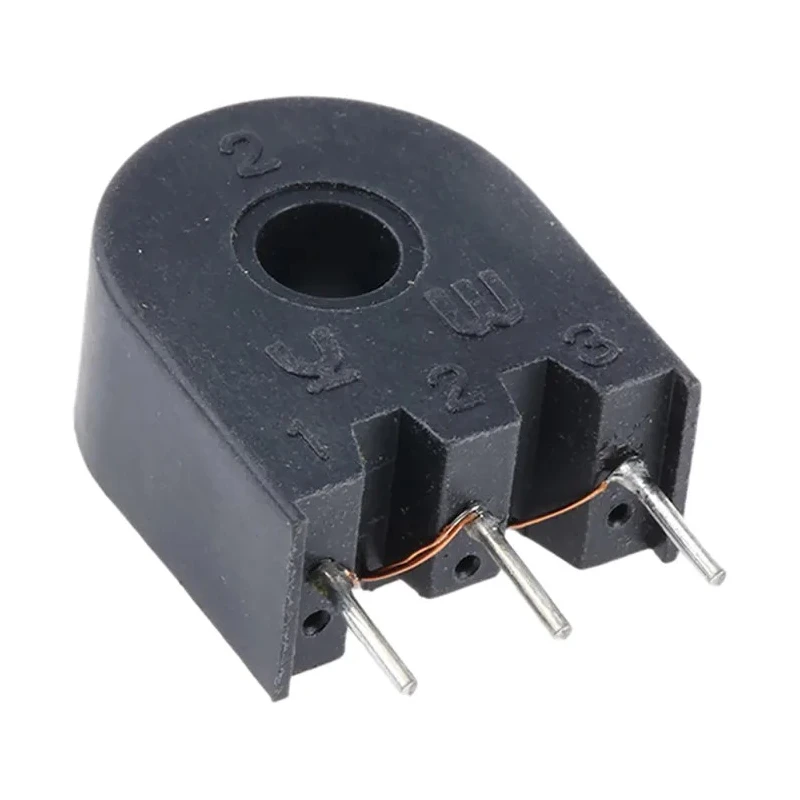

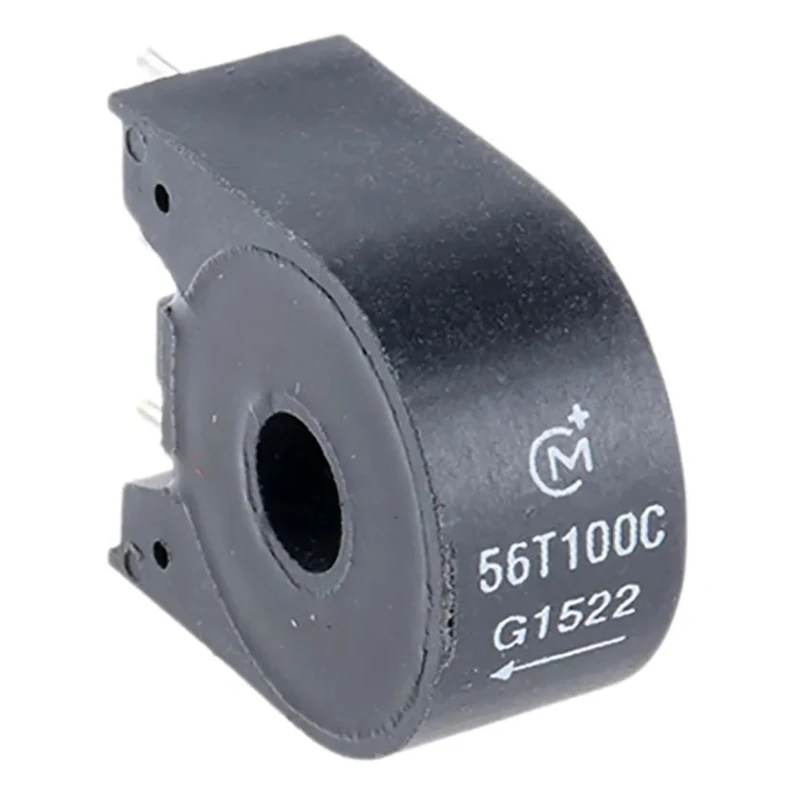

Murata Power Solutions 5600 Series Current Transformer 10 A 56T100C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 16.79mm |
| Model | 56T100C |
| Depth | 20.19mm |
| Width | 8.89mm |
| Mount Type | Through Hole |
| Series | 5600 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Secondary current | 1A |
| Terminal type | Wire |
| Inductance | 18mH |
| Primary Current | 10A |
| Minimum Operating Frequency | 20kHz |
| Maximum Operating Frequency | 200kHz |
| Primary DC Resistance | 0.93Ω |
| Secondary DC Resistance | 1.4Ω |
Key Features
- Offers a primary DC resistance of 0.93 ohms ensuring low-loss operation.
- Secondary DC resistance of 1.4 ohms supports efficient current carrying.
- Inductance rated at 18 millihenries for reliable sensing at high frequencies.
- Operates within a temperature range of -40°C to 85°C for harsh environments.
- Compact dimensions with length 16.79 mm, width 8.89 mm, and depth 20.19 mm fit in tight spaces.
- Designed for through-hole mounting with wire terminal type for easy integration.
- Supports operating frequency range from 20 kHz up to 200 kHz, suitable for high-frequency applications.
- Ideal for switched-mode power supplies, motor control, and electronic lighting ballast applications.
Product Description
Murata Power Solutions 56T100C current transformer from the 5600 Series is a precision component engineered for high-frequency AC current sensing up to 10 amperes. This device features a primary DC resistance of 0.93 ohms and a secondary DC resistance of 1.4 ohms, providing low-loss current measurement capabilities critical to efficient system performance.
With an inductance of 18 millihenries and a secondary current rating of 1 ampere, this transformer operates reliably across a broad frequency spectrum from 20 kHz to 200 kHz. It is well-suited for demanding electrical environments with an operational temperature range spanning from -40°C to 85°C, offering durability under extreme conditions.
The component boasts compact physical dimensions - 16.79 mm in length, 8.89 mm in width, and 20.19 mm in depth - making it suitable for installations with limited space. Its through-hole mount type with wire terminals facilitates straightforward circuit board integration, ensuring mechanical stability and secure electrical connections.
These current transformers are widely used in switched-mode power supplies, motor control systems, and electronic lighting ballasts where precise current monitoring is essential. They help improve energy efficiency and system reliability by accurately detecting current fluctuations.
Primary DC resistance of 0.93 ohms enables minimal power loss. Secondary DC resistance of 1.4 ohms supports stable secondary circuit operation. High inductance of 18 millihenries optimizes performance in high-frequency environments.
Wide operating temperature range enhances suitability for industrial applications. Compact size allows use in dense electronic assemblies. Through-hole mount ensures robust mechanical installation. Wide frequency operation enables versatility in various AC sensing applications.
Manufactured under consistent quality control in China.
This product is categorized under Current Transformer for industrial and commercial electrical and automation applications, providing precise and reliable current measurement solutions for electronic devices and systems.
Explore more Current Transformers and related Power Solutions products through EnvMart for quality, reliability, and industry compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 10 amperes.
This model operates within a frequency range from 20 kHz to 200 kHz, making it suitable for high-frequency applications.
The transformer has compact dimensions: 16.79 mm in length, 8.89 mm in width, and 20.19 mm in depth.
It is designed for through-hole mounting, which facilitates easy integration into circuit boards.
The inductance of this current transformer is rated at 18 millihenries.
The primary DC resistance is 0.93 ohms, while the secondary DC resistance is 1.4 ohms, supporting efficient current carrying.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The secondary current rating for this model is 1 ampere.
It is suitable for applications such as switched-mode power supplies, motor control, and electronic lighting ballasts.
This model features wire terminals, which ensure secure electrical connections.
This product is manufactured in China.
The low primary DC resistance of 0.93 ohms enables minimal power loss during operation, enhancing efficiency.
