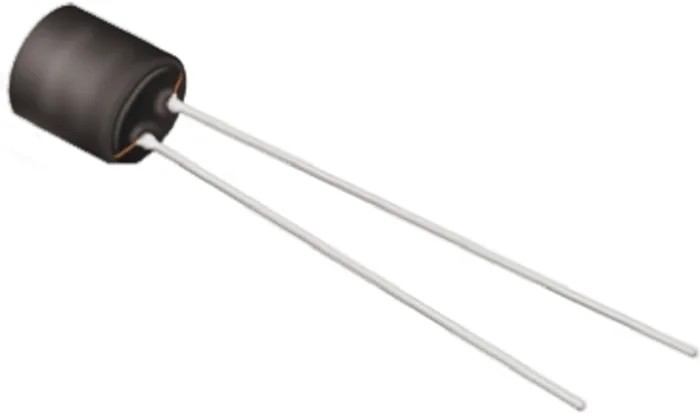

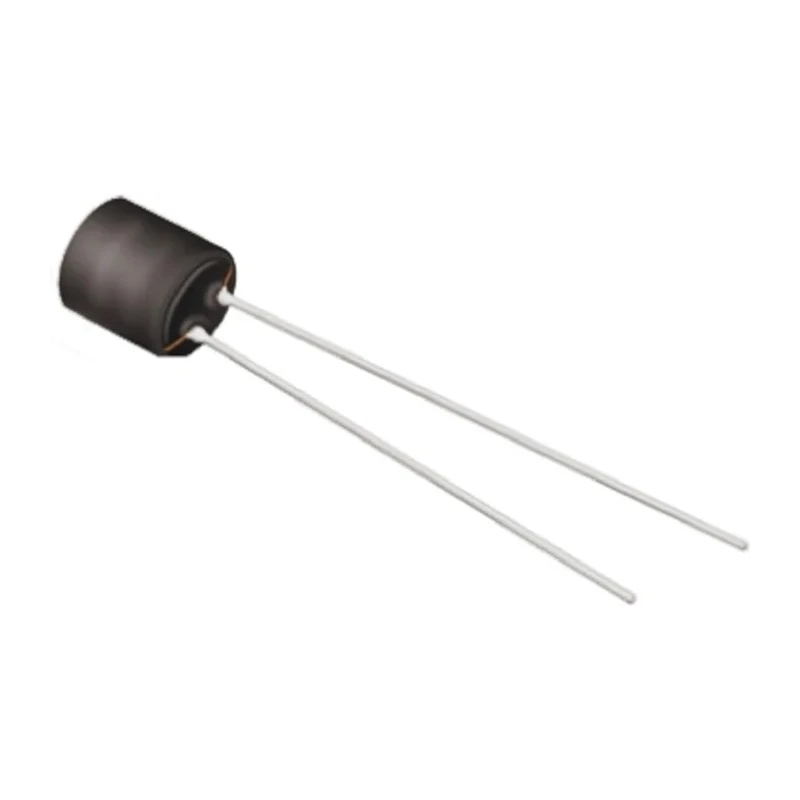

Murata Power Solutions 1.5 mH Leaded Inductor, 130 mA Max DC Current, 6490 mΩ Max DC Resistance, Max SRF 1.9 MHz, Q 22R155C
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6.5mm |
| Brand | Murata Power Solutions |
| Height | 10.5mm |
| Length | 7.7mm |
| Model | 22R155C |
| Packaging | 100 pcs of Bags |
| Mount Type | Radial |
| Series | 2200R |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Test Frequency | 1000kHz |
| Inductance | 1.5mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 130mA |
| Maximum DC Resistance | 6490mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.9MHz |
| Minimum Quality Factor | 130 |
| Lead Pitch | 3mm |
| Lead Diameter | 1.20mm |
Key Features
- This leaded inductor features a maximum DC resistance of 6490 mΩ for efficient performance.
- Its maximum self-resonant frequency is 1.9 MHz ensuring stable operation within specified frequency ranges.
- The device has a Q factor of 130 indicating high quality and low energy loss.
- Manufactured for temperatures ranging from -25°C to 70°C, suitable for various environmental conditions.
- Comes in a radial mount style with fully tinned leads suitable for Sn/Pb soldering systems.
- Packaged in bags containing 100 pieces, facilitating bulk usage and production efficiency.
- Physical dimensions include a 6.5 mm diameter, 10.5 mm height, 7.7 mm length, and a 3 mm lead pitch.
- Lead diameter measures 1.20 mm to fit standard mounting and soldering requirements.
Product Description
Murata Power Solutions 22R155C is a high-quality 1.5 mH leaded inductor designed for low to medium current applications with a maximum DC current rating of 130 mA and a maximum DC resistance of 6490 mΩ. This radial mount component supports efficient electromagnetic performance with a maximum self-resonant frequency of 1.9 MHz and a minimum quality factor of 130, facilitating low losses in filter and signal processing circuits.
It operates reliably in temperatures ranging from -25°C to 70°C, making it suitable for various industrial and electronic environments including power supplies, signal filtering, and general electronic circuit designs. The inductor features fully tinned leads that are backward compatible with Sn/Pb soldering systems, ensuring ease of assembly and durable connections.
Physically, the inductor has a diameter of 6.5 mm, a height of 10.5 mm, length of 7.7 mm, and a lead pitch of 3 mm, with lead diameters of 1.20 mm, allowing compatibility with standard radial mounting PCBs. It is supplied in packaging of 100 pieces per bag for efficient supply and inventory management.
Manufactured in China, this component is RoHS compliant, reflecting adherence to environmental and safety regulations. The 2200R series from Murata Power Solutions offers dependable inductors suitable for electrical, industrial, and commercial applications requiring consistent inductance and thermal stability.
This leaded inductor offers 1.5 mH inductance for versatile circuit applications. Maximum DC current of 130 mA supports medium power circuits. Maximum DC resistance of 6490 mΩ reduces power loss during operation. Operating temperature ranges between -25°C and 70°C for reliable performance.
Radial mount style with fully tinned leads provides assembly compatibility. RoHS compliant manufacture ensures environmental responsibility. Package contents include 100 pieces per bag for bulk usage convenience.
Murata Power Solutions Leaded Inductors are ideal for industrial electronic design, power management, and signal conditioning where quality and reliability are paramount. Explore our catalog of high-grade inductors and components at EnvMart for your electronics manufacturing and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1.5 mH, suitable for various circuit applications.
It has a maximum DC current rating of 130 mA, making it suitable for low to medium current applications.
The maximum DC resistance is 6490 mΩ, which helps reduce power loss during operation.
The maximum self-resonant frequency is 1.9 MHz, ensuring stable operation within specified frequency ranges.
It operates reliably in temperatures ranging from -25°C to 70°C, making it suitable for various environments.
This inductor has a diameter of 6.5 mm, height of 10.5 mm, length of 7.7 mm, and a lead pitch of 3 mm.
The lead diameter measures 1.20 mm, allowing compatibility with standard mounting and soldering requirements.
The termination style is solder, which is compatible with Sn/Pb soldering systems.
It is packaged in bags containing 100 pieces, facilitating bulk usage and production efficiency.
Yes, this model is RoHS compliant, reflecting adherence to environmental and safety regulations.
This inductor belongs to the 2200R series from Murata Power Solutions, designed for reliable performance in electronic applications.
It is suitable for applications including power supplies, signal filtering, and general electronic circuit designs.
