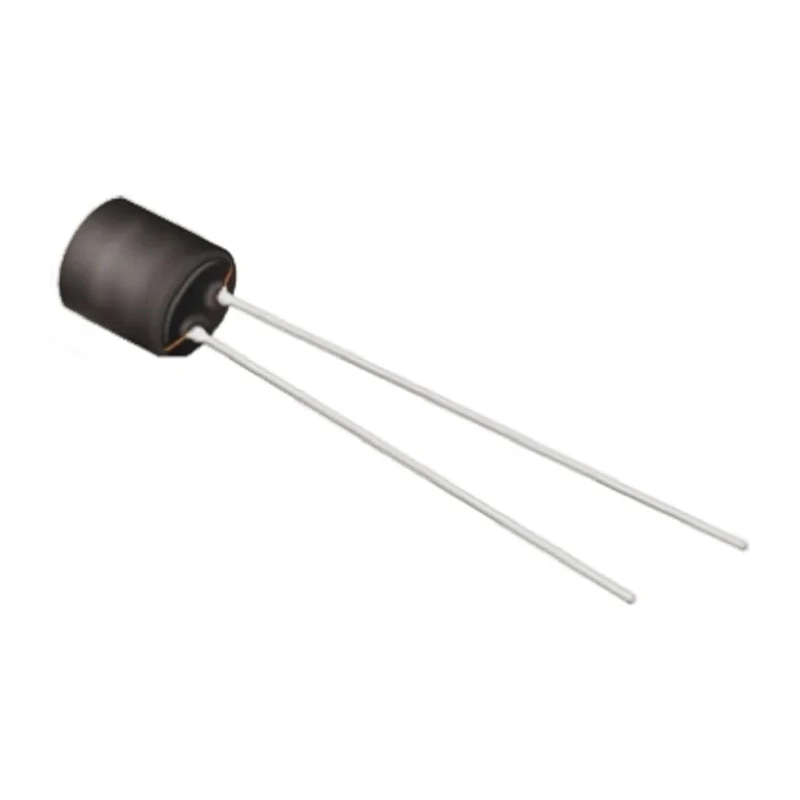

Murata Power Solutions 1.5 mH Leaded Inductor, Max SRF 1.9 MHz, Q 130, 130 mA Idc, 6490 mΩ Rdc, Series 2200R 22R155C

Murata Power Solutions 22R155C is a precision 1.5 mH Leaded Inductor from the 2200R series, optimized for low to medium current electronic applications. Offering a maximum DC current rating of 130 mA, this component is engineered to deliver stable inductance within a tolerance of ±10%. It features a radial mount type with solder termination to facilitate secure and efficient printed circuit board assembly.

This inductor boasts a maximum self-resonant frequency (SRF) of 1.9 MHz and a minimum quality factor (Q) of 130, attributes which make it highly effective in signal filtering and energy storage tasks in industrial, communication, and power electronics environments. The DC resistance of 6490 mΩ ensures low energy dissipation, enhancing overall circuit efficiency.

Physical dimensions include a diameter of 6.5 mm, length of 7.7 mm, and height of 10.5 mm, making it suitable for compact electronic designs. Its lead diameter is 1.20 mm with a 3 mm lead pitch. This component can operate reliably in temperatures ranging from -25°C to 70°C, meeting demanding industrial conditions.

The 22R155C inductor complies with RoHS standards, supporting environmentally safe manufacturing processes. Its packaging in bags of 100 pieces allows for bulk handling in production lines.

Maximum DC current of 130 mA enables efficient operation under moderate load conditions. Compact size and radial lead configuration simplify PCB mounting and integration. Self-resonance frequency of 1.9 MHz supports high-frequency applications.

High quality factor of 130 ensures low energy loss in electromagnetic applications. Wide operating temperature range from -25°C to 70°C for industrial resilience. RoHS compliance guarantees adherence to environmental protection directives.

Packaging in 100-piece bags facilitates manufacturing efficiency and cost-effective supply.

This leaded inductor is ideal for use in industrial electronics, automotive circuits (non-automotive standard compliant), power supply filters, and communication devices where precise inductance and compact design are paramount. Explore more electronic components and specialized inductors in the Murata Power Solutions product category at EnvMart for enhanced system design and performance.
