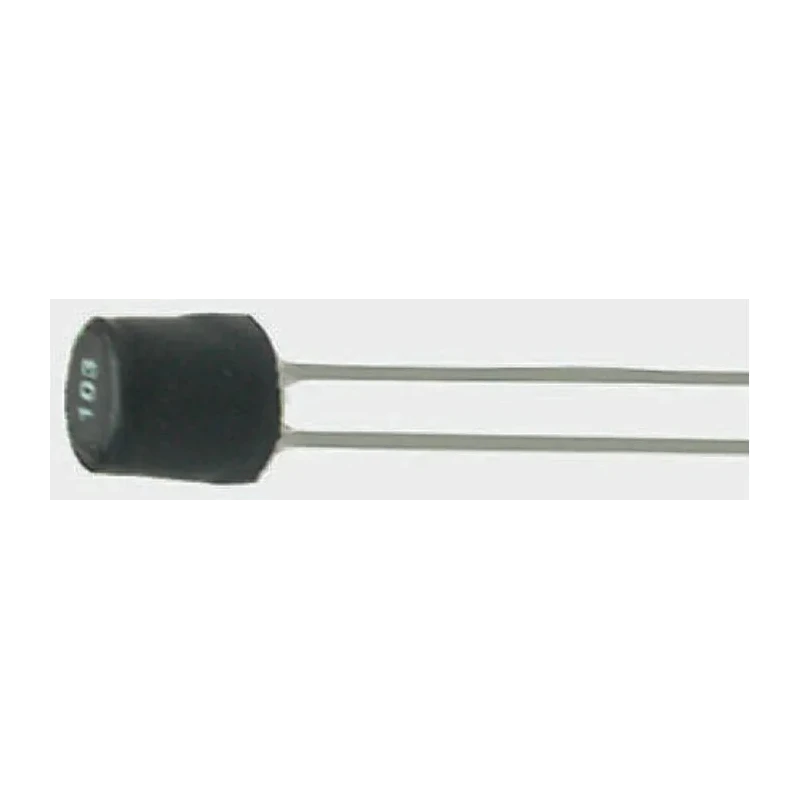

Murata Power Solutions 1 mH Radial Inductor Max SRF 2.1 MHz Q 120 170 mA Idc 3630 mΩ Rdc 22R105C
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.2mm |
| Brand | Murata Power Solutions |
| Operating Temperature | -25 → +70°C |
| Height | 10.5mm |
| Length | 7.2mm |
| Model | 22R105C |
| Depth | 8.5mm |
| Packaging | Bag |
| Mount Type | Radial |
| Series | 2200R |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Test Frequency | 1kHz |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 170mA |
| Maximum DC Resistance | 3630mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial Lead |
| Maximum Self Resonant Frequency | 2.1MHz |
| Minimum Quality Factor | 120 |
| Lead Pitch | 3mm |
| Lead Diameter | 0.6mm |
| Miniature radial inductor,1mH 0.21ABrand | Murata Power Solutions |
| Resin min radial suppression choke,1mHBrand | Murata Power Solutions |
| Wurth 1 mH ±20% Ferrite Leaded Inductor, Max SRF | 1.8MHz, Q:55, 100mA Idc, 11.5Ω Rdc, WE-TIBrand: Wurth Elektronik |
Key Features
- Compact miniature radial wire-ended design for low power switching regulator use.
- Inductance tolerance of ±10 % ensuring reliable circuit performance.
- Maximum operating temperature up to 70°C for stable operation.
- Maximum DC resistance of 3630 mΩ and minimum quality factor of 120 at 1 kHz test frequency.
- Lead pitch of 3 mm and lead diameter of 0.6 mm for easy PCB mounting.
- Durable resin coating enhances mechanical protection and insulation.
- Operating temperature range from -25°C to +70°C supports diverse environments.
- RoHS compliant ensuring environmentally safe manufacturing standards.
Product Description
Murata Power Solutions 22R105C is a 1 mH radial inductor, designed as a resin coated miniature general purpose radial wire-ended RF inductor.
This component is optimized for use in DC supply line filtering and low power switching regulator applications, offering excellent electrical characteristics and reliable performance.
It features a maximum self-resonant frequency of 2.1 MHz and a minimum quality factor of 120 measured at 1 kHz test frequency. The inductor supports a maximum DC current of 170 mA with a maximum DC resistance of 3630 mΩ, ensuring energy efficiency in power electronics circuits.
Physical dimensions include a diameter of 7.2 mm, height of 10.5 mm, lead pitch of 3 mm, and lead diameter of 0.6 mm, suitable for efficient circuit board assembly. The operating temperature range is from -25°C to 70°C, making it adaptable for varied industrial and commercial electronics environments.
The termination style is radial lead with packaging provided in bags, facilitating protection during transportation and storage. It is RoHS compliant, aligning with environmental safety standards.
Compact miniature radial wire-ended design for low power switching regulator use. Inductance tolerance of ±10 % ensuring reliable circuit performance. Maximum operating temperature up to 70°C for stable operation. Maximum DC resistance of 3630 mΩ and minimum quality factor of 120 at 1 kHz test frequency.
Lead pitch of 3 mm and lead diameter of 0.6 mm for easy PCB mounting. Durable resin coating enhances mechanical protection and insulation. Operating temperature range from -25°C to +70°C supports diverse environments. RoHS compliant ensuring environmentally safe manufacturing standards.
This inductor is ideal for industrial electronics manufacturing, HVAC control systems, power supply filtering, and laboratory power applications requiring dependable inductance components.
Explore more Inductors and passive components at EnvMart for your electronic assembly and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 mH with an inductance tolerance of ±10%.
It supports a maximum DC current of 170 mA, ensuring energy efficiency in power electronics circuits.
The maximum self-resonant frequency of this inductor is 2.1 MHz.
This inductor has a diameter of 7.2 mm, a height of 10.5 mm, and a lead pitch of 3 mm with a lead diameter of 0.6 mm.
The operating temperature range for this model is from -25°C to +70°C.
The maximum DC resistance is 3630 mΩ, which contributes to its efficiency in applications.
This inductor is optimized for DC supply line filtering and low power switching regulator applications.
It features a radial lead termination style for easy PCB mounting.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
The minimum quality factor of this inductor is 120, measured at a test frequency of 1 kHz.
The inductor is packaged in bags, which facilitates protection during transportation and storage.
The country of origin for this inductor is India.
