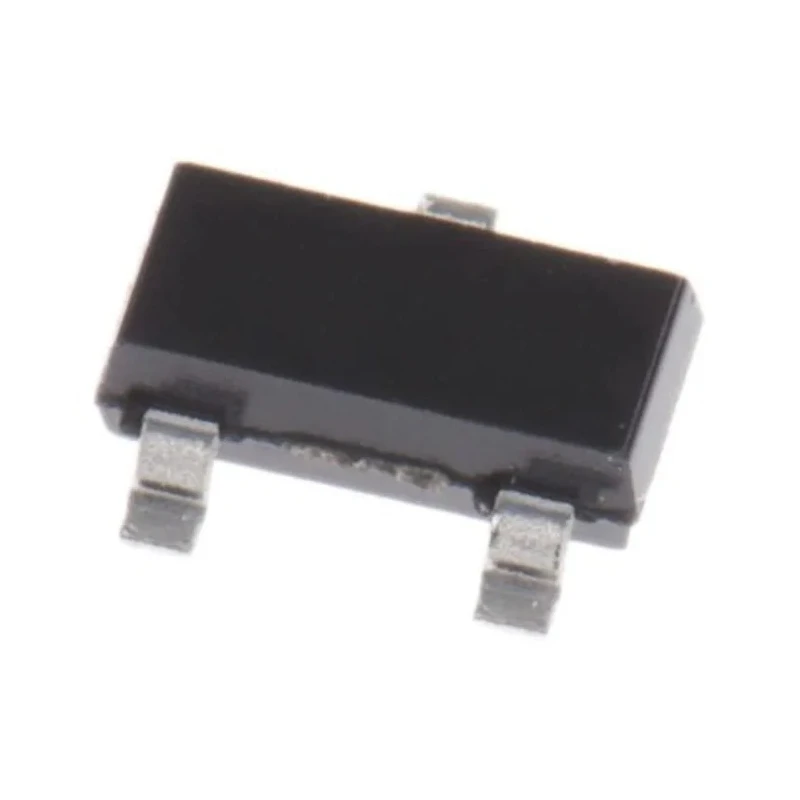

onsemi Transistor PNP 3-Pin SOT-23 -100 mA, -50 V, Maximum Power Dissipation 338 mW MMUN2111LT1G

onsemi MMUN2111LT1G transistor is a PNP type bipolar transistor designed for efficient surface mount electronic applications. Featuring a compact 3-pin SOT-23 package, this transistor is ideal for use in automotive, industrial, and general-purpose electronics where space saving and integration of bias resistors are critical.

This transistor supports a maximum DC collector current of -100 mA and a maximum collector-emitter voltage rating of -50 V, providing robust switching and amplification capabilities. The device’s minimum DC current gain (hFE) is 35, ensuring reliable signal control in low to medium power circuits.

The device incorporates a monolithic bias network with series base and base-emitter resistors integrated into one package, which simplifies circuit design by eliminating the need for multiple discrete resistors. This results in reduced board space and fewer components, lowering overall system cost and enhancing reliability.

With a maximum power dissipation of 338 mW and operating temperature up to 150°C, MMUN2111LT1G is engineered for durability in demanding conditions. Its compact dimensions of length 3.04 mm, width 1.4 mm, and height 1.11 mm allow for easy placement on PCB layouts.

This transistor complies with the AEC-Q101 automotive standard, making it suitable for automotive electronic systems and other high-reliability applications requiring stringent quality standards.

The device reduces component count by integrating bias resistors and transistor into one compact package. It simplifies circuit design and reduces PCB real estate requirements. PNP transistor polarity suits switching and amplification tasks in various circuits.

Designed for surface mount technology with a common SOT-23 footprint. Automotive grade ensures reliability in harsh environmental conditions. Robust electrical parameters enable usage in general-purpose amplification and switching.

Compact package dimensions facilitate integration into miniaturized electronic assemblies. High maximum operating temperature enhances thermal resilience.

This onsemi MMUN2111LT1G transistor is a reliable choice for electronic engineers needing an efficient, integrated PNP transistor with bias resistors in compact SOT-23 packaging. Explore more Bipolar Transistors and semiconductor components at EnvMart for your varied electronic requirements.
